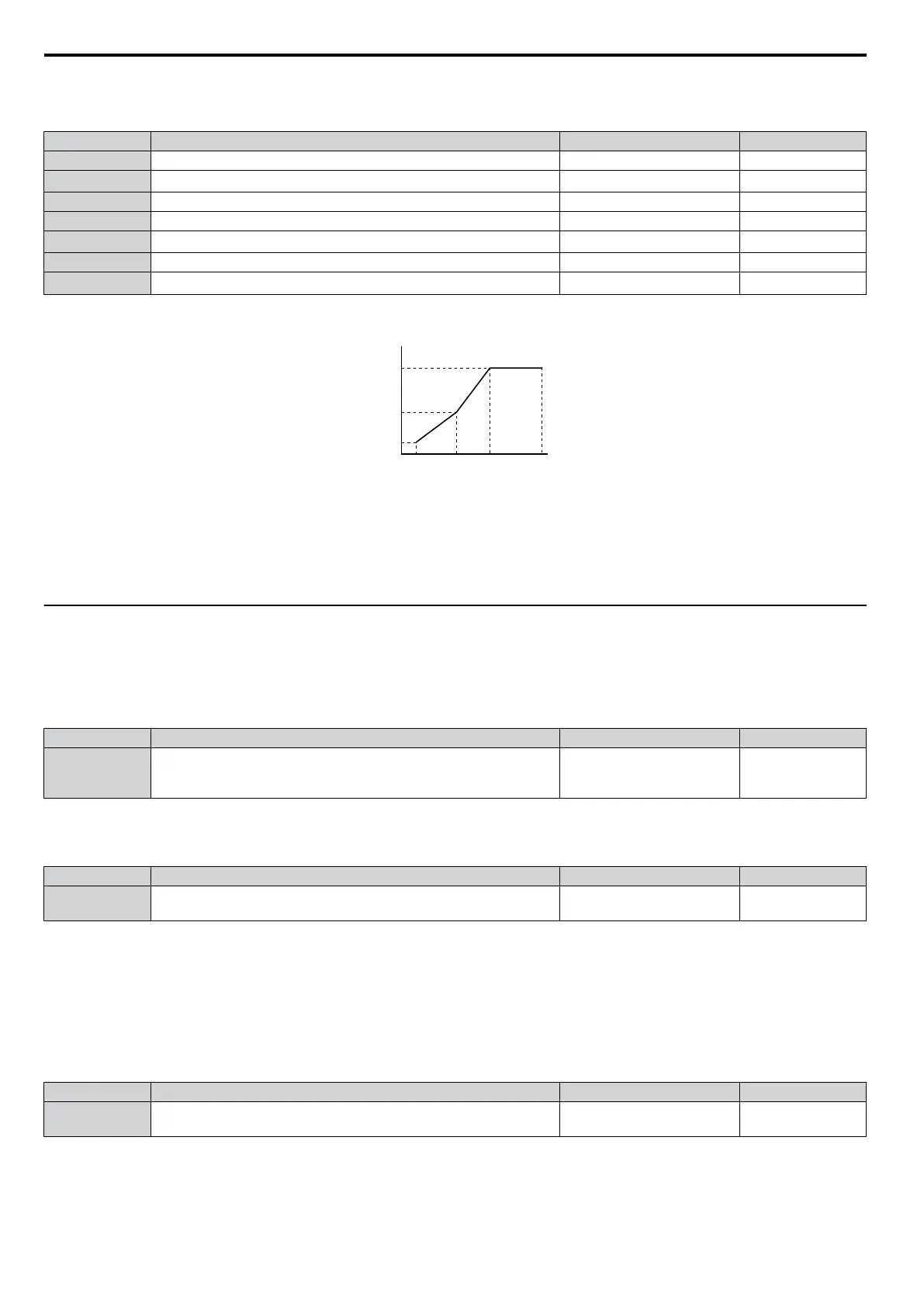

V/f Pattern Settings E1-04 to E1-10
Set up the V/f pattern as shown in Figure 5.13.
No. Parameter Name Setting Range Default
E1-04 Maximum Output Frequency 40.0 to 400.0 Hz 50 Hz
E1-05 Maximum Voltage
0.0 to 255.0 V
<1>
200 V
E1-06 Base Frequency 0.0 to 400.0 Hz 50 Hz
E1-07 Middle Output Frequency 0.0 to 400.0 Hz 2.5 Hz
E1-08 Middle Output Frequency Voltage
0.0 to 255.0 V
<1>
16.0 V
E1-09 Minimum Output Frequency 0.0 to 400.0 Hz 1.3 Hz
E1-10 Minimum Output Frequency Voltage
0.0 to 255.0 V
<1>
12.0 V
<1> Values shown here are for 200 V class drives. Double values when using a 400 V class unit.
E1-05
E1-08
E1-10
E1-09 E1-07 E1-06 E1-04
Output Voltage (V)
Frequency (Hz)
Figure 5.13 V/f Pattern
Note: 1. The following condition must be true when setting up the V/f pattern: E1-09 ≤ E1-07 ≤ E1-06 ≤ E1-04
2. To make the V/f pattern a straight line set E1-09 = E1-07. In this case the E1-08 setting is disregarded.
3. E1-03
is unaffected when the drive is initialized using parameter A1-03, but the settings for E1-04 through E1-10 are returned to their
default values.
u
E2: Motor 1 Parameters
These parameters contain the most important motor data needed for optimal motor control.
n
E2-01: Motor Rated Current
Set E2-01 to the full load amps (FLA) stamped on the motor nameplate.
No. Parameter Name Setting Range Default
E2-01 Motor Rated Current
10% to 200% of the drive
rated current.
(unit: 0.01 A)
Depending on
o2-04
n
E2-02: Motor Rated Slip
Sets the motor rated slip in Hz.
No. Parameter Name Setting Range Default
E2-02 Motor Rated Slip 0.00 to 20.00 Hz
Depending on
o2-04
Calculate the motor rated slip using the information written on the motor nameplate and the formula below:
E2-02 = f - (n x p)/120
(f: rated frequency (Hz), n: rated motor speed (r/min), p: number of motor poles)
n
E2-03: Motor No-Load Current
Set
E2-03 to the motor no-load current at rated voltage and rated frequency. Contact the motor manufacturer for information
about the no-load current.
No. Parameter Name Setting Range Default
E2-03 Motor No-Load Current
0 to [E2-01]
(unit: 0.01 A)
Depending on
o2-04
n
E2-05: Motor Line-to-Line Resistance
Sets
the line-to-line resistance of the motor stator winding. Remember this value must be entered as line-line and not line-
neutral.
5.5 E: Motor Parameters
88
SIEP C710606 33A OYMC AC Drive – J1000 User Manual
