3.4 Terminal Block Configuration

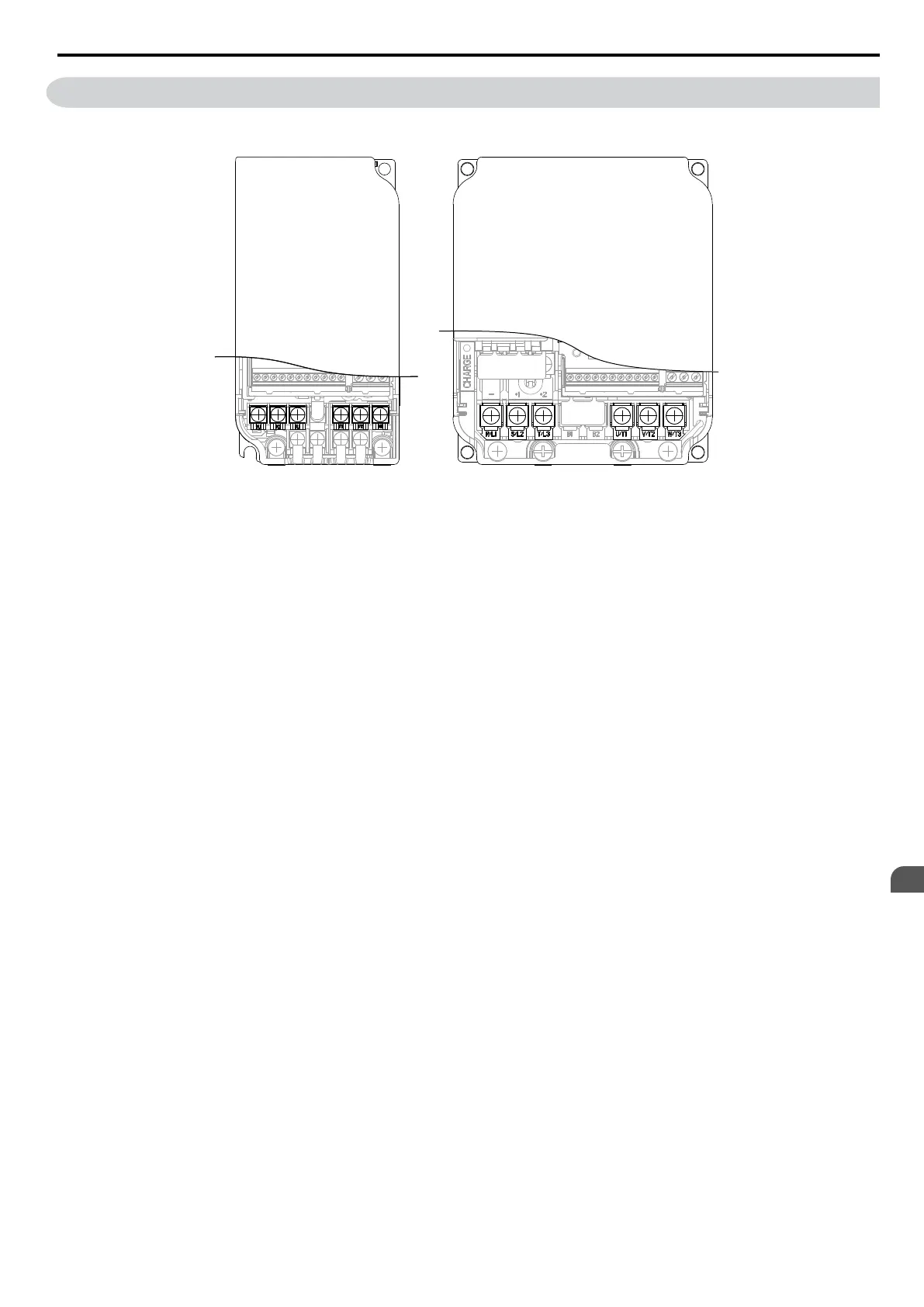

The figures in this section provide illustrations of the main circuit terminal block configurations of the different drive sizes.
Models:
Models:
JZAB0P1, B0P2, B0P4
JZA20P1, 20P2, 20P4, 20P7
JZAB0P7, B1P5
JZA21P5, 22P2, 24P0
JZA40P2, 40P4, 40P7, 41P5
JZA42P2, 43P0, 44P0
Figure 3.5 Main Circuit Terminal Block Configurations
3.4 Terminal Block Configuration
SIEP C710606 33A OYMC AC Drive – J1000 User Manual
35
3
Electrical Installation
