8.3
TRANSMISSION
8
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

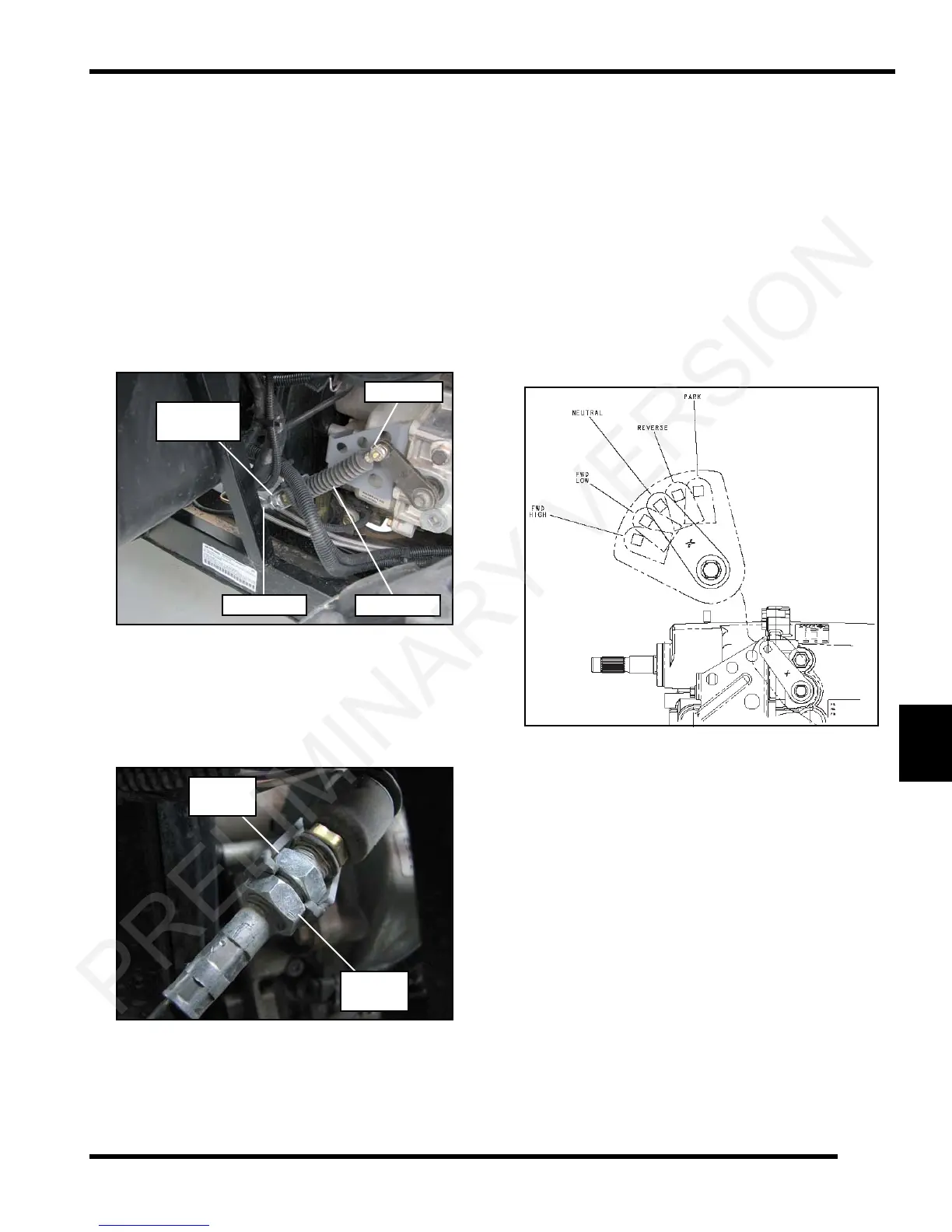

Shift Cable Inspection / Adjustment
Shift cable adjustment may be necessary if symptoms
include:
• No AWD or gear position display on instrument
cl
uster
• Ratcheting noise on deceleration
• Inability to engage a gear
• Excessive gear lash (noise)
• Gear selector moving out of desired range
1. Locate the shift cable in the rear LH wheel well area.
2. Inspect shift cable, clevis pin, pivot bushings, and dust
b
oot. Replace if worn or damaged.
3. If adjustment is required, loosen the lower jam nut and
pu
ll the cable out of the mount to move the upper jam
nut.
4. Adjust the shift cable so there is the same amount of
cab
le travel when shifting slightly past the detents of
HIGH (H) gear and PARK (P).
5. Thread the upper or lower jam nut as required to
ob
tain proper cable adjustment.
NOTE: This procedure may require a few attempts to
obta
in the proper adjustment.
6. Once the proper adjustment is obtained, place the
sh
ift cable and upper jam nut into the mount. Tighten
the lower jam nut against the mount.
7. Start engine and shift through all gears to ensure the
shift c
able is properly adjusted. If transmission still
ratchets after cable adjustment, check the CVT
system for belt movement at idle. If difficulty shifting
persists, the transmission may require service.
Shift Cable
Mount
Dust Boot
Clevis Pin
Shift Cable
