Quantum Scalar i6000 Installation Guide

354 Interpreting LED Codes
Interpreting Drive Status LEDs
The library reports all drive issues that can affect customer operations. In addition to examining library
reports, you should observe drive sled link LED and status LED activity.
Figure 42
shows the locations of the status LEDs and the Fibre Channel link LED on the rear of a UDS-2
drive sled.

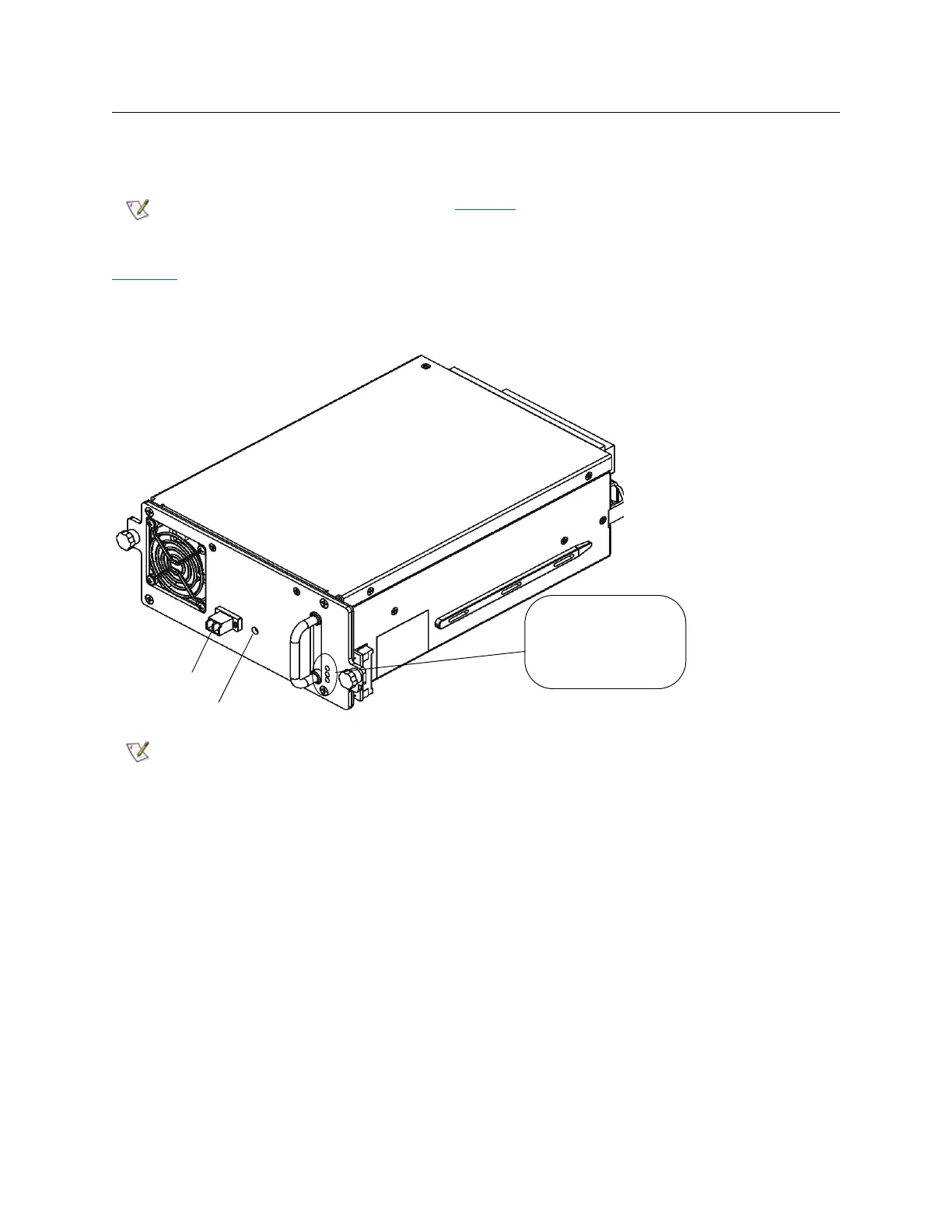

Figure 42 Rear View of Fibre Channel Drive Sled (UDS-2)
Note
The blinking codes described in Table 18 on page 355 are the same for Fibre
Channel and SCSI drives in the UDS-2 drive sleds.
Note
SDLT-600 Fibre drives do not have a Fibre Channel link LED.
FC link LED
fibre port
- top = blue
- middle = amber
- bottom = green
status LEDs:
