Scalar i6000 Installation Guide 81

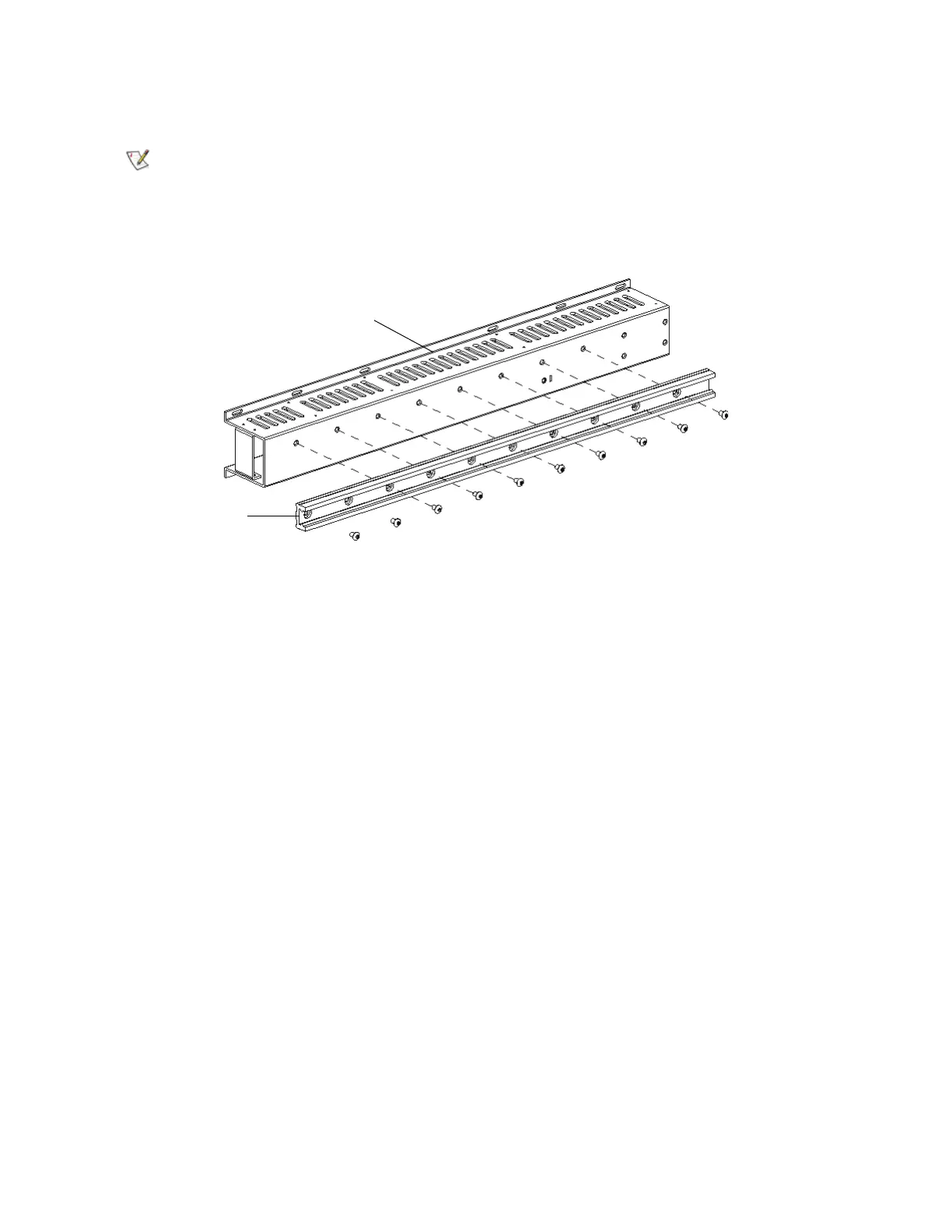

Removing the Middle X-Axis Rail from Module Eight

1 Use a 3 mm hex wrench to remove screws 1 through 10.

2 Lift the rail from the frame, and set aside.

Note

You only need to remove the middle X-axis rail from module eight if you are

adding expansion modules to an existing eight module library. Later, you will

replace this rail with a special rail for the expanded configurations.

X-axis channel

middle X-axis rail
