Other Replacements
D127/D128 4-40 SM
4.11.4 CONTACT-RELEASE SOLENOID
1. Rear cover ( p.4-3 "Rear Cover")
2. High-voltage power supply board (
p.4-38 "High-Voltage Power Supply Board ")

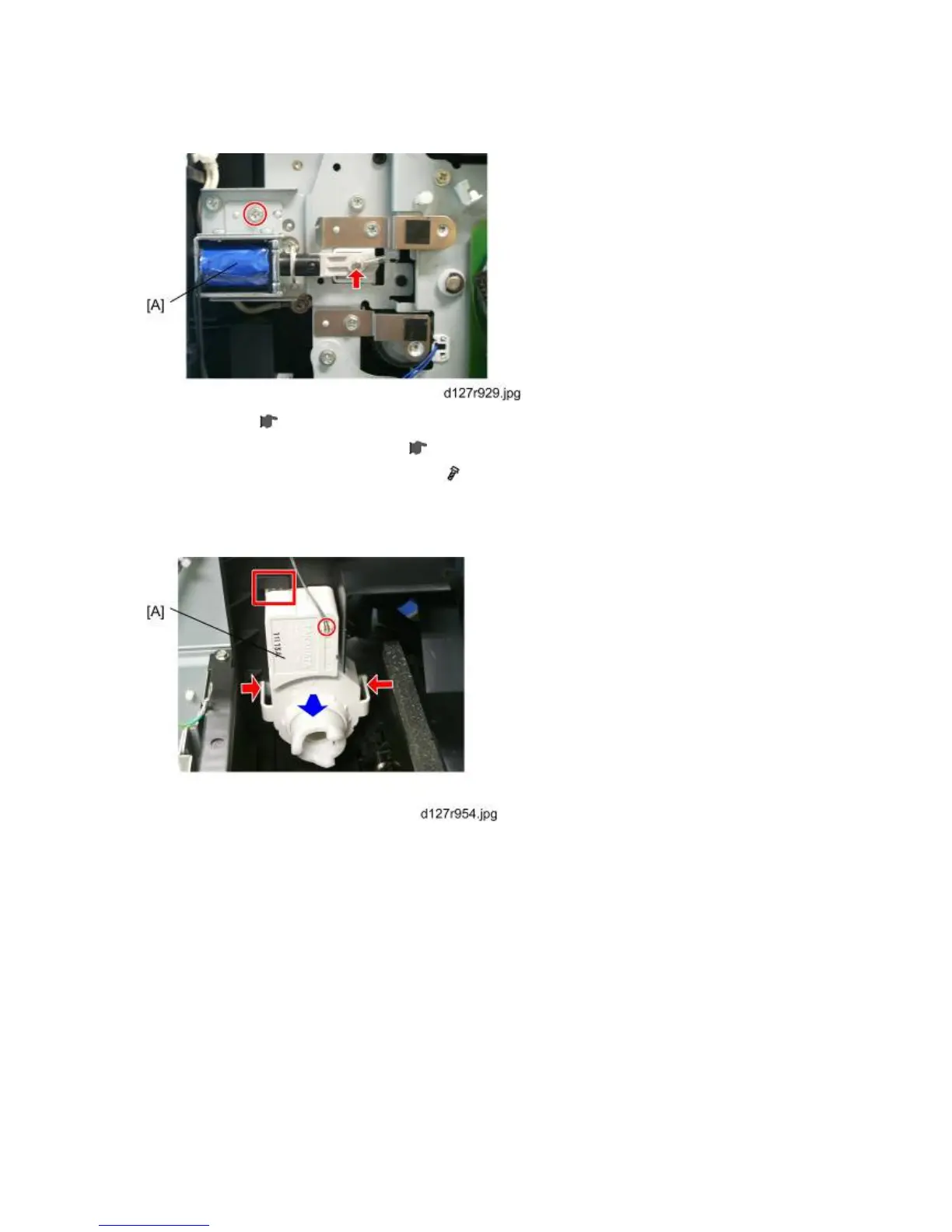

3. Contact-release solenoid [A] (1 spring,
x 1)
4.11.5 TONER SUPPLY MOTOR
1. Toner bottle holder
2. Hold both sides of the Toner Supply Clutch [A] as the red arrows show. Then pull to your side
with trying to release the upper hook the red square shows.
3. Remove the harness the red circle shows.
