Drive
D661 6 SM

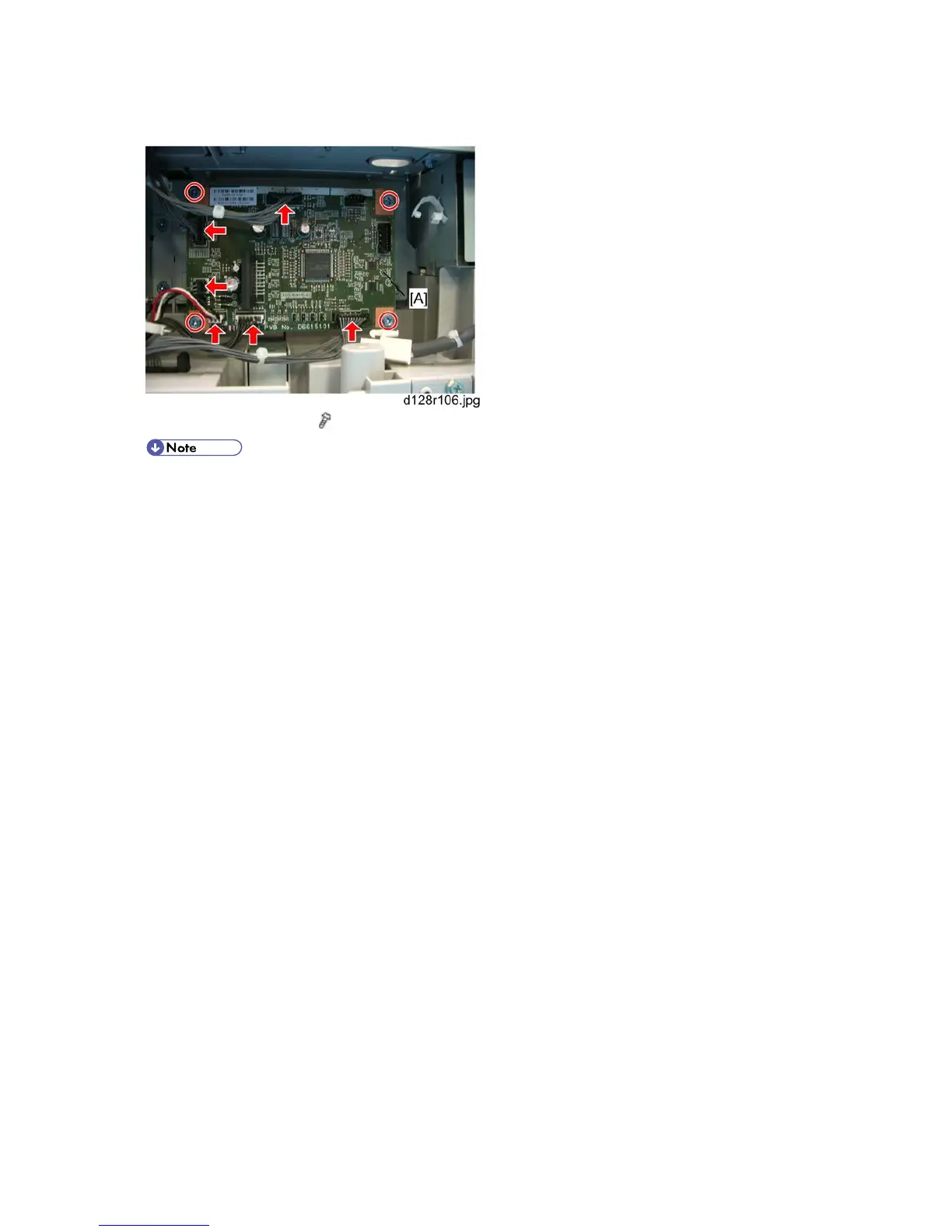

1.3.4 TRAY MAIN BOARD
1. Tray main board [A] (
x 4, all connectors)
 Be sure not to reinstall the board upside down.
