Adjusting Copy Image Area

SM 4-61 D127/D128

Replacement

and

Adjustment

SP Specification

SP4-010-001 (LE Scan Regist)

0 ± 2 mm

5. Measure the distance between the side edge of the image area and the side edge of the

paper [B].

6. Adjust the side-to-side registration (SP4-011-001).

SP Specification

SP4-011-001 (S-to-S Scan Regist)

0 ± 2 mm

Adjusting Magnification

1. Place the test chart on the exposure glass. Make sure the test chart is aligned with the rear

and left scales on the exposure glass.

2. Make a copy.

3. Compare the copy with the original.

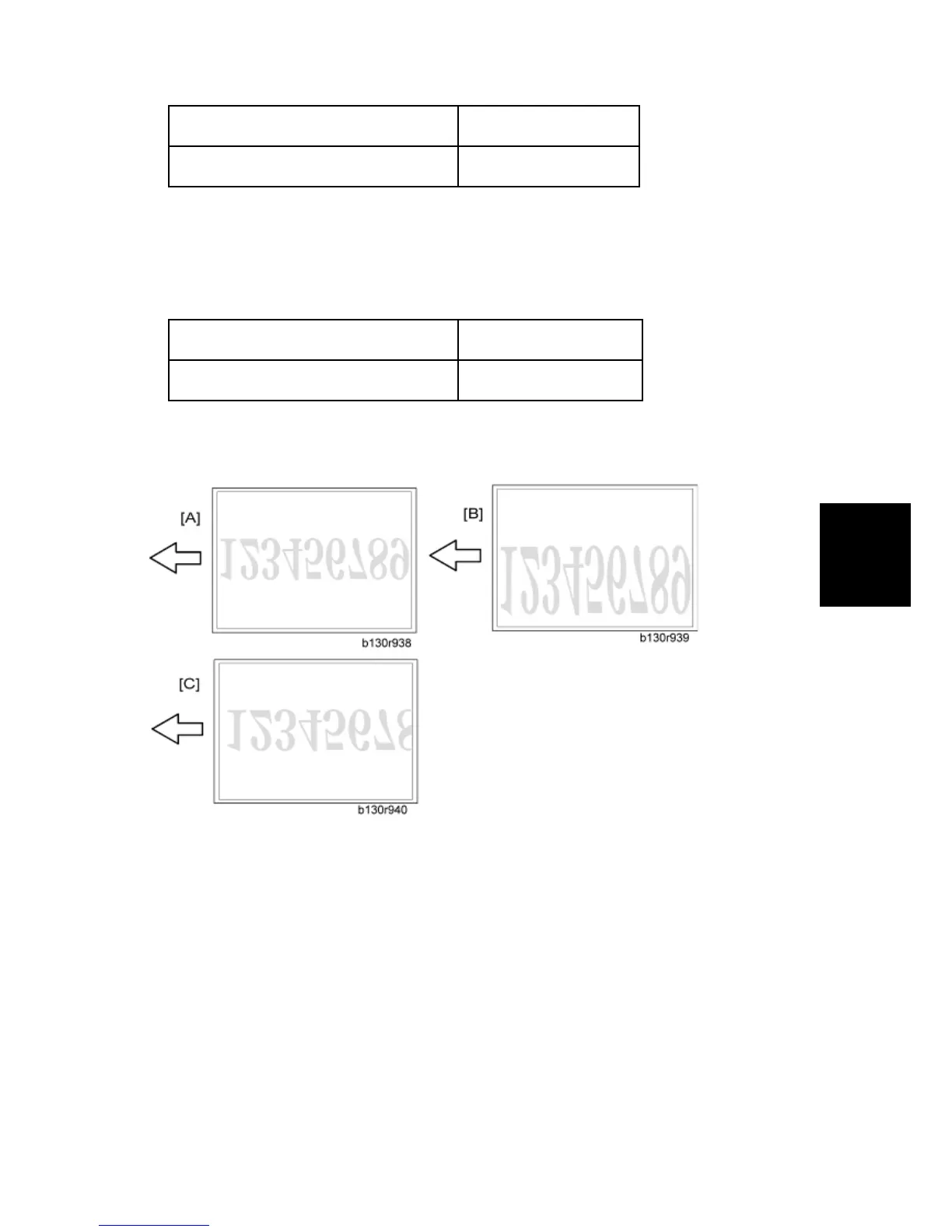

4. Adjust the main-scan and sub-scan magnifications. The original image [A] is magnified in the

main-scan direction [B] or in the sub-scan direction [C] when you specify a larger value.
