2.2.3 MINIMUM OPERATIONAL SPACE REQUIREMENTS

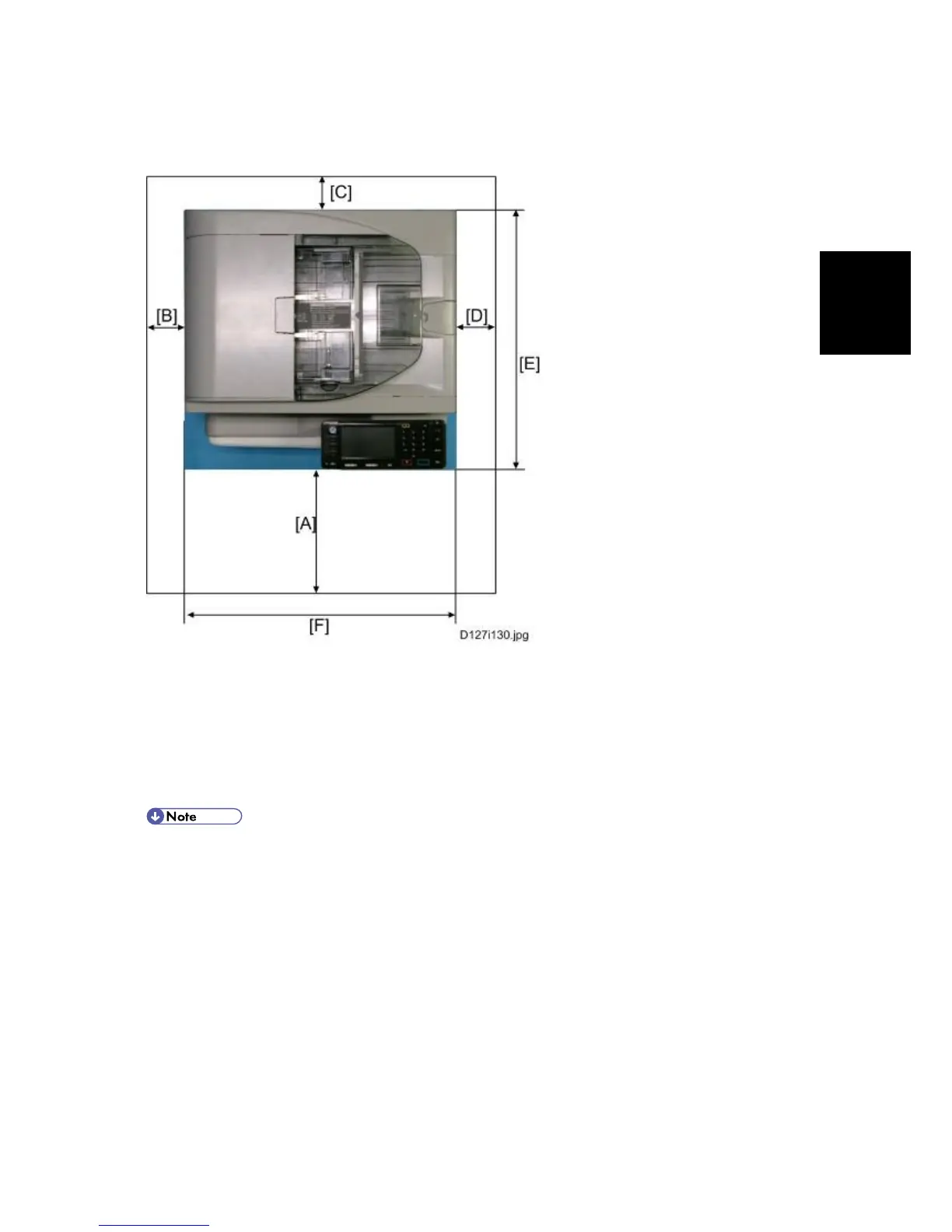

Place the machine near the power source, providing clearance as shown.
A: Front – 750 mm (29.6")
B: Left – 100 mm (3.9")
C: Rear – 100 mm (3.9")
D: Right – 100 mm (3.9")
E: Depth – 450 mm (17.7")
F: Width – 476 mm (19.1")
 The 750-mm front space indicated above is sufficient to allow the paper tray to be pulled
out. Additional space is required to allow an operator to stand at the front of the machine.
 Actual minimum space requirement for left, rear, and right sides is 10mm (0.4") each, but
note that this will not allow room for opening of the bypass tray, right door or ARDF unit.
