26. Attach the grounding wire (Long) [21] ( x 1, Washer x1, Spring washer x1)
27. Attach two of the clamps (Mid) [22] [23].
28. Attach the clamp (Mid) [24].
29. Connect the heater harness (Long) to the heater harness (Short).
30. Attach the heater harness through the clamps as shown.
 Be sure to make the bind attached on the heater harness upper than the clamp (Mid) [22]
[24].
31. Remove the drawer from the paper tray unit.

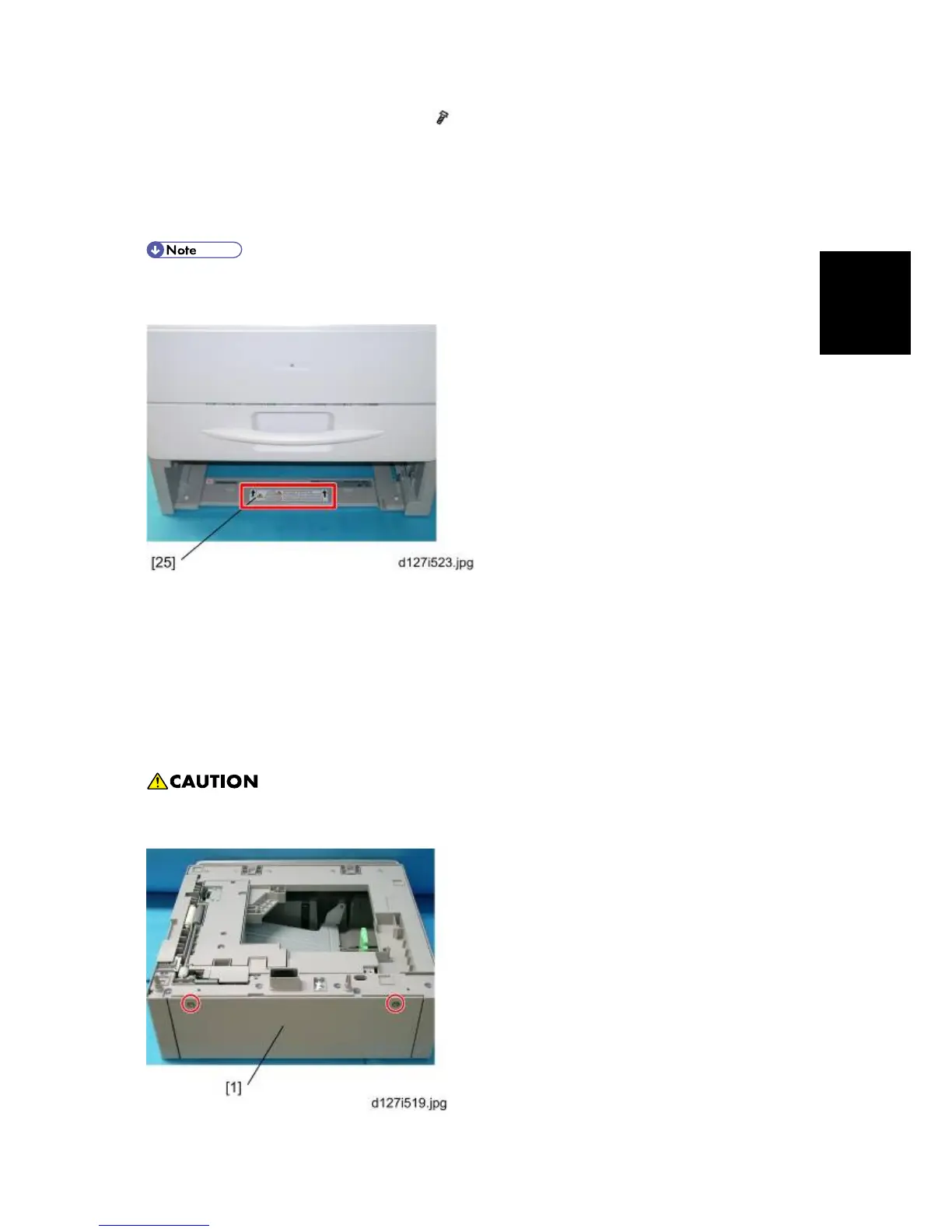

32. Attach the caution decal [25] in the bottom of the paper tray unit.
33. Reassemble the copier.
34. Plug in the power cord, and check the operation.
2.5.3 INSTALLATION PROCEDURE (FOR TWO OF PTU INSTALLED
MACHINE)
 Unplug the main machine's power cord before starting the following procedure.
1. Remove the upper and the lower paper tray unit from the copier if it is already installed.
