Paper Tray Unit
D661 2 SM

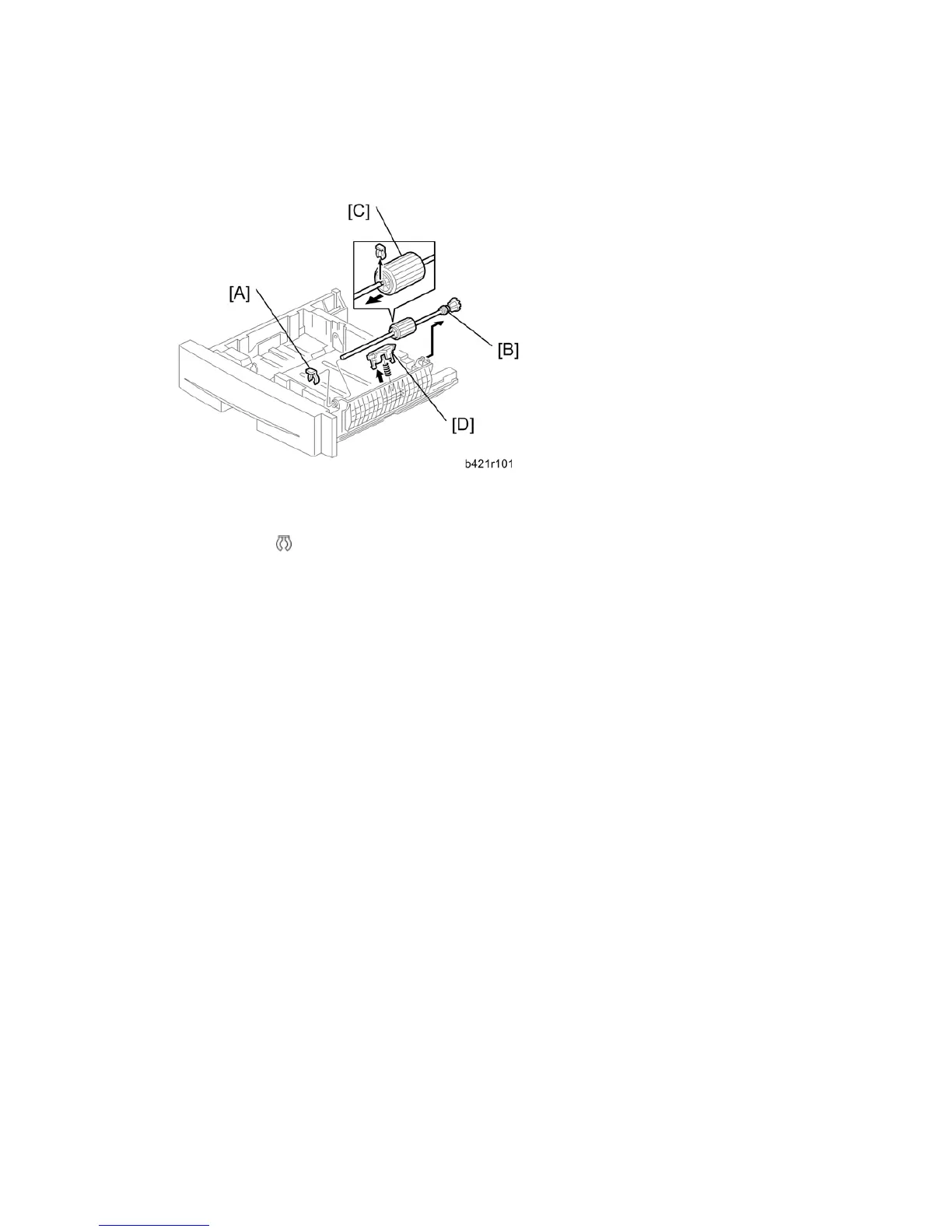

1.1.2 FEED ROLLER AND FRICTION PAD
1. Take the tray out of the paper tray unit.
2. Clip ring [A]
3. Shaft assembly [B]
4. feed roller [C] (
x 1)
5. Friction pad [D]
