3.4 PTL REPLACEMENT
1. Remove the paper feed driven unit (follow the steps from 1 to 5 of the
development unit removal).

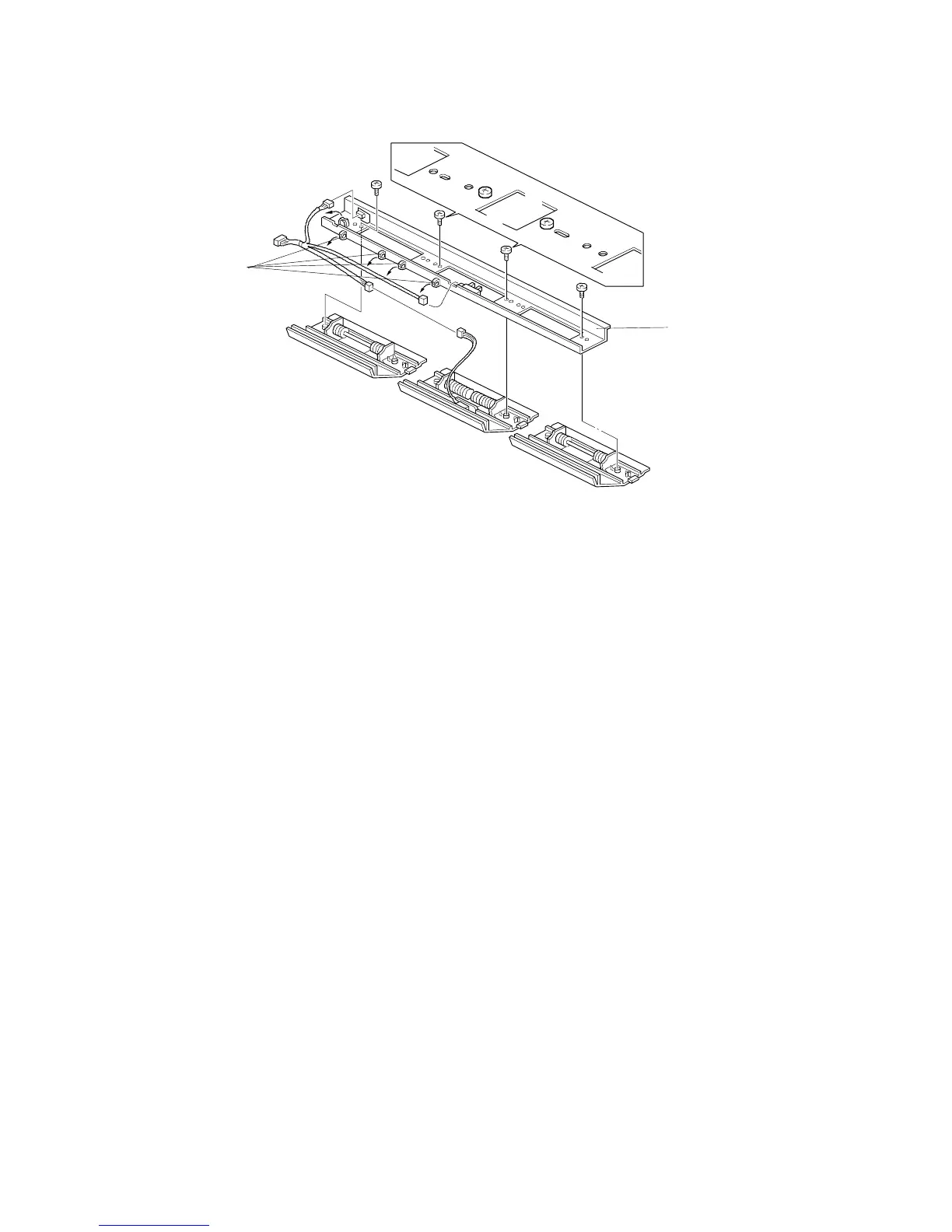

2. Remove the PTL assembly [A] (4 screws, 3 connectors, and 4 clamps [B]).
[B]
[A]
A163 5-10 SM
