7. OTHERS

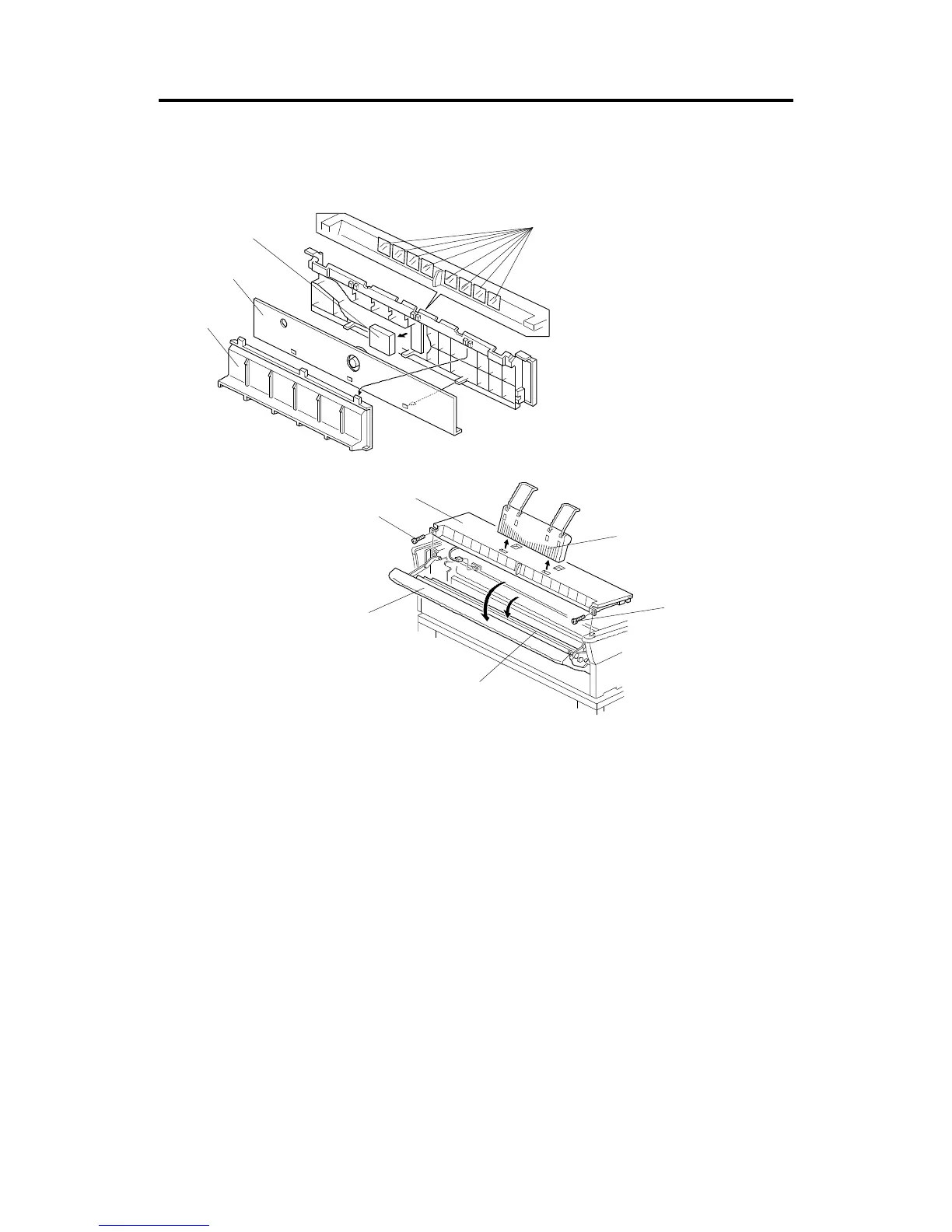

7.1 OZONE FILTER REPLACEMENT
NOTE:Take care not to damage the mylars [A] on the rear feed table.
1. Open the fusing exit cover [B] and exit unit [C].
2. Remove the copy tray [D].
3. Remove the rear feed table assembly [E] (2 screws and 1 connector).
4. Unhook the blower duct [F] and remove.
5. Unhook the fan support plate [G] and remove.
6. Replace the ozone filter [H].
NOTE:When reinstalling the rear feed table assembly, fix the 2 screws [I]
while pushing the assembly.
