9. ROLL CUTTING RAIL
9.1ROLL CUTTING RAIL

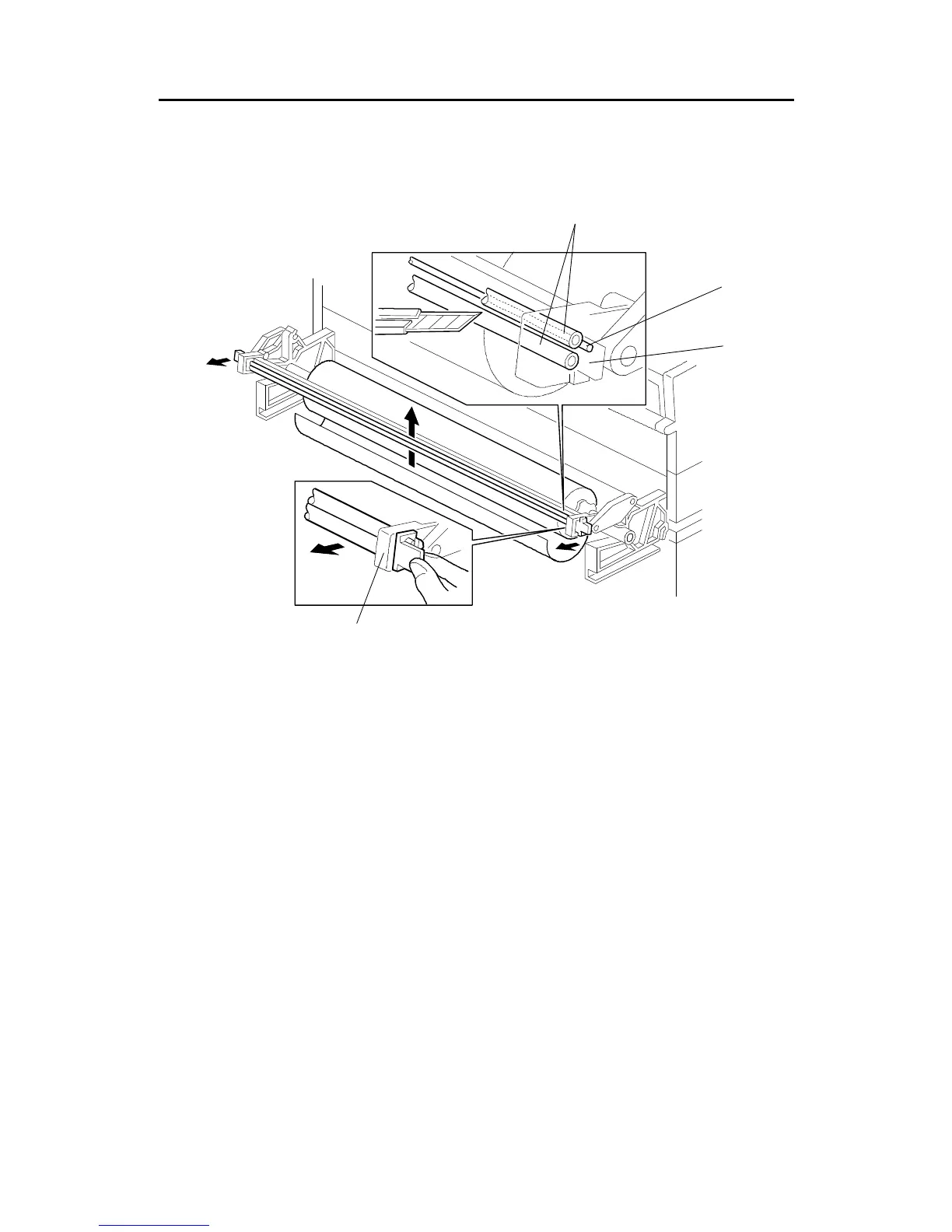

The roll cutting rail cuts sheets of paper from the paper roll.
For inserting paper between the slide shafts [A] and cutter guide stay [B], the
holders [C] hold the slide shafts at the upper position by keeping the gap
constant. To stop paper dropping from the roll cutting rail, the holders hold the
slide shafts at the lower position by holding the paper against the cutter guide
stay.
The guide shaft [D], made of resin, protects the paper knife blade from damage
by metal parts of the unit.
[A]
[D]
[B]
[C]
SM 2-36 A163
