SERVICE REMARKS
A251/A252 4-16 SM
Service Remarks for 120 V Version

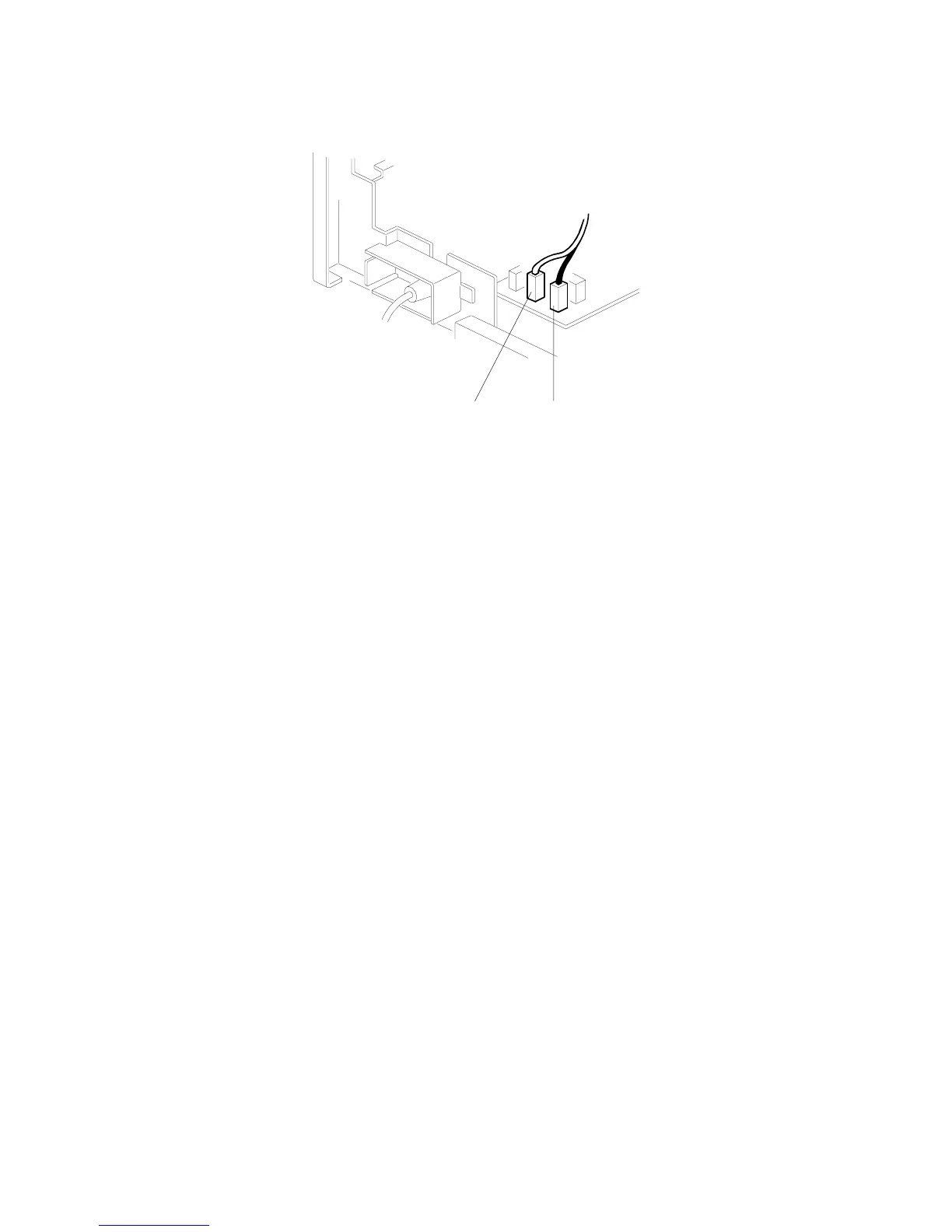

Make sure that the harness is connected to the ac drive board as shown correctly
1. Set the power supply cord harness hot line (black wire) yellow connector to
TB201 on ac drive board.
2. Set the power supply cord harness neutral line (white wire) white connector to
TB202 on ac drive board.
A252M500.WMF
AC Drive Board
TB201
TB202
