INSTALLATION PROCEDURE
SM 3-27 B047/B048
Installation
Length
Temperature
300
PRG.
NO.
1100
PRG.
NO.
NORMAL XX 42 XX 45
23. Plug in the power supply cord and turn on the main switch.

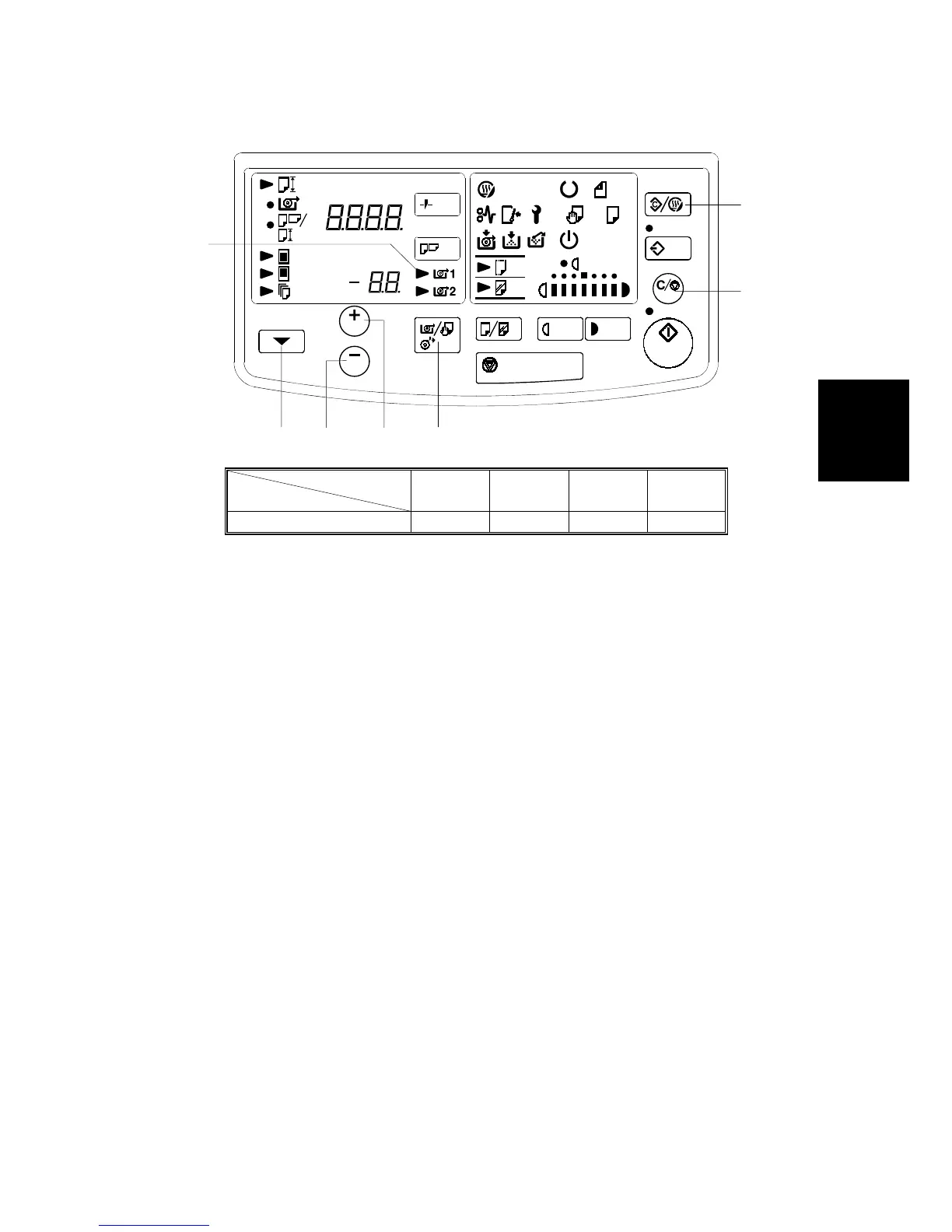

24. To enter the SP mode, press the following keys on the operation panel:
Clear Modes key [A]
+ key [B]
– key [C]
Clear/Stop key [D]
Clear/Stop key [D] again and hold it for at least 3 seconds.
25. After 3 seconds, the roll paper end and call service indicators will blink (SP
mode).
26. Select 40 using the + and - keys. Enter “1” (B435: 1 roll) or “2” (B436: 2 rolls)
by pressing the following keys.
Function Select key [E]
+ key
RF Select key [F].
27. To set the paper cut length adjustments, input values into SP modes 42 and 45
as listed on the decal attached to the right side plate.
NOTE: 1) When the values for SP modes 42 and 45 are set, the paper cut
length adjustment values for vellum and film are automatically
entered (SP modes 43, 44, 46 and 47).
2) In the case of the 2 roll feeder, you must enter values for both the
1st and 2nd roll. The value for the 1st roll can only be entered when
the corresponding indicator [G] is blinking (same for 2nd roll). Use
the Function Select Key to switch between the two rolls.
28. Press the Clear Modes key 3 times to leave the SP mode.
29. Check the roll feeder operation.
B435I508.WMF
[D]
[F]
[A]
[B][C][E]
[G]
To Next Page
