Roland EGX-350 User Manual

Chapter 8 Appendix
110

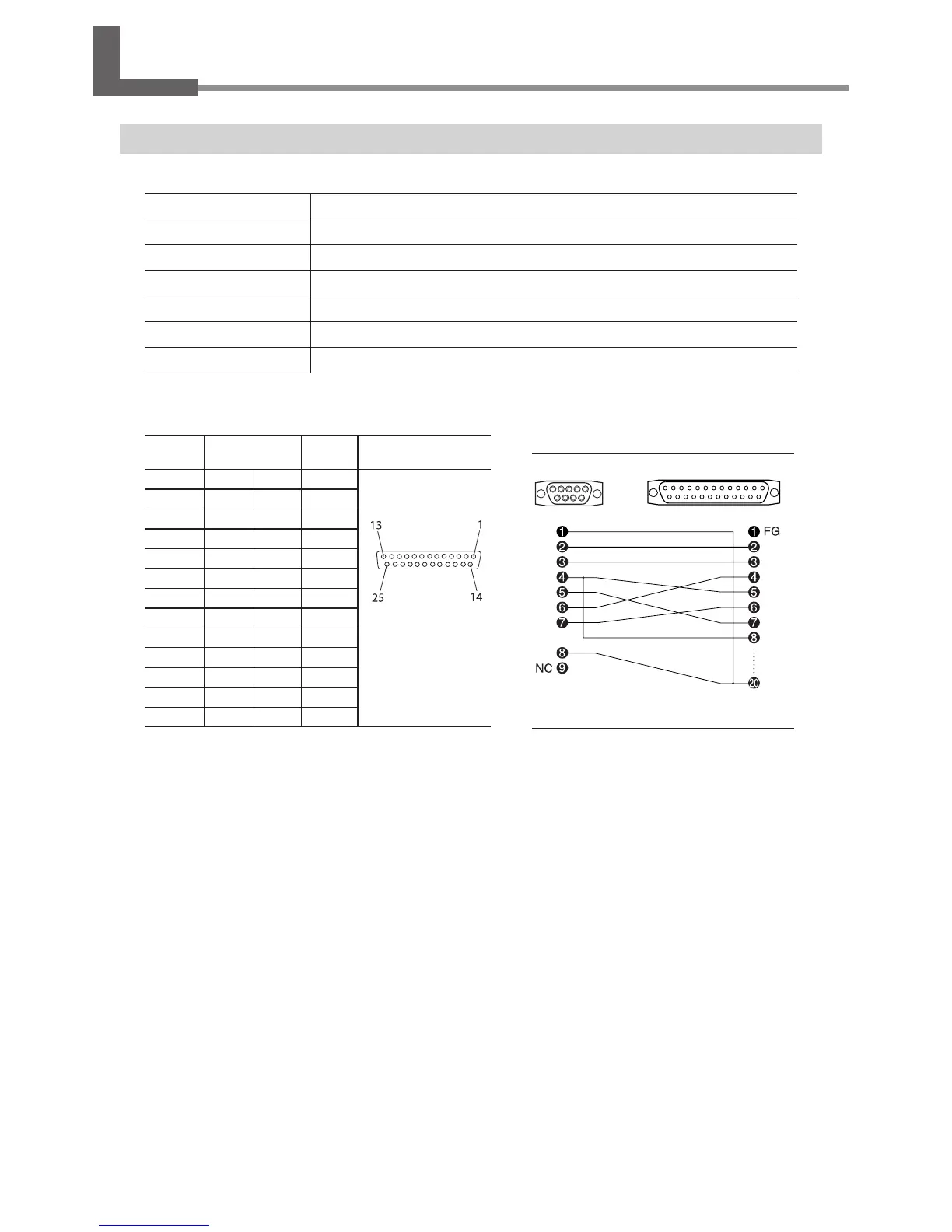

8-3 Interface Specications
Serial Connector
Standard RS-232C specication
Transmission method Asynchronous, duplex data transmission
Transmission speed 4800, 9600, 19200, 38400
Parity check Odd, Even, None
Data bits 7 or 8 bits
Stop bits 1 or 2 bits
Handshake Hardware or Xon/Xo
Signal
number
Terminal
number
Signal
number
Pin connection
NC 25 13 NC
NC 24 12 NC
NC 23 11 NC
NC 22 10 NC
NC 21 9 NC
DTR 20 8 NC
NC 19 7 SG
NC 18 6 DSR
NC 17 5 CTS
NC 16 4 RTS
NC 15 3 RXD
NC 14 2 TXD
1 FG
Serial connector (RS-232C) XY-RS-34/14 cable connection
D-sub 9 pin D-sub 25 pin

Roland EGX-350 Specifications

General

Drive System	Stepper motor
Interface	USB
Engraving Area	350 x 300 mm
Engraving Area (mm)	300 x 210 mm
Software Resolution (mm)	0.01 mm/step
Spindle Speed	7, 000 rpm
Power Supply	AC 100 - 240 V, 50/60 Hz
Acoustic Noise	65 dB (A) or less (when not cutting)
Operating Temperature	5 - 40 °C
Operating Humidity	35 to 80% (no condensation)
External Dimensions (mm)	680 x 580 x 430
