Chapter 8 Appendix
8-3 Interface Specications

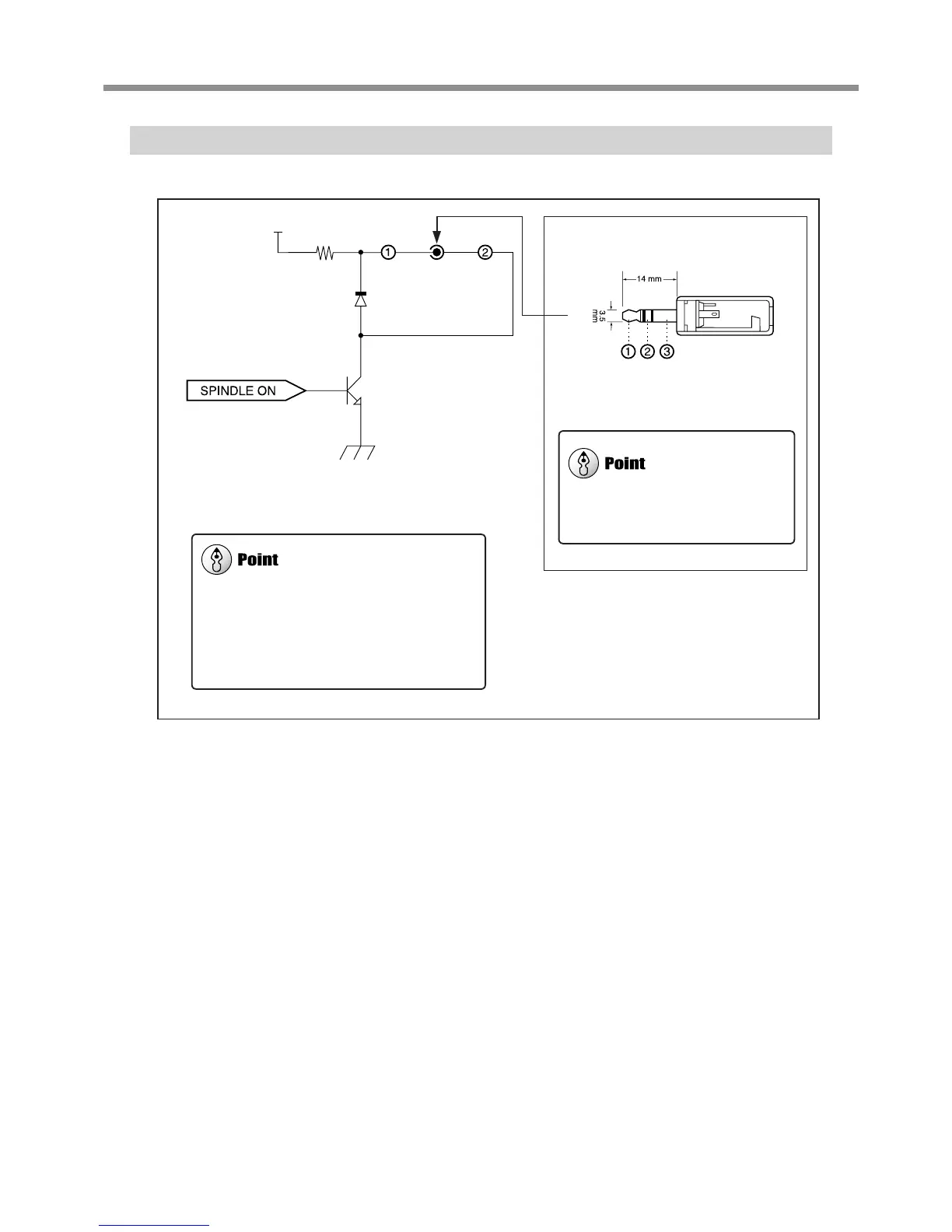

Expansion Connector
Note: We are not responsible for devices connected to this connector.
Do not use the terminal 3. Use only the
1 and 2 terminals.
 Be sure to use the connector within the rated range
shown above.
 Do not apply an additional voltage to the con-
nector.
 Do not short-circuit the connector and earthing.
+24V
Pin 1 Connec-
tor
Pin 2
Ic (max) = 100mA
This circuit works during spindle motor rotation.
Adaptive Plug
Use a three-contact plug that meets
the size requirements above.

Roland EGX-350 Specifications

General

Drive System	Stepper motor
Interface	USB
Engraving Area	350 x 300 mm
Engraving Area (mm)	300 x 210 mm
Software Resolution (mm)	0.01 mm/step
Spindle Speed	7, 000 rpm
Power Supply	AC 100 - 240 V, 50/60 Hz
Acoustic Noise	65 dB (A) or less (when not cutting)
Operating Temperature	5 - 40 °C
Operating Humidity	35 to 80% (no condensation)
External Dimensions (mm)	680 x 580 x 430
