Roland EGX-350 User Manual

113
Chapter 8 Appendix
8-4 Main Unit Specication

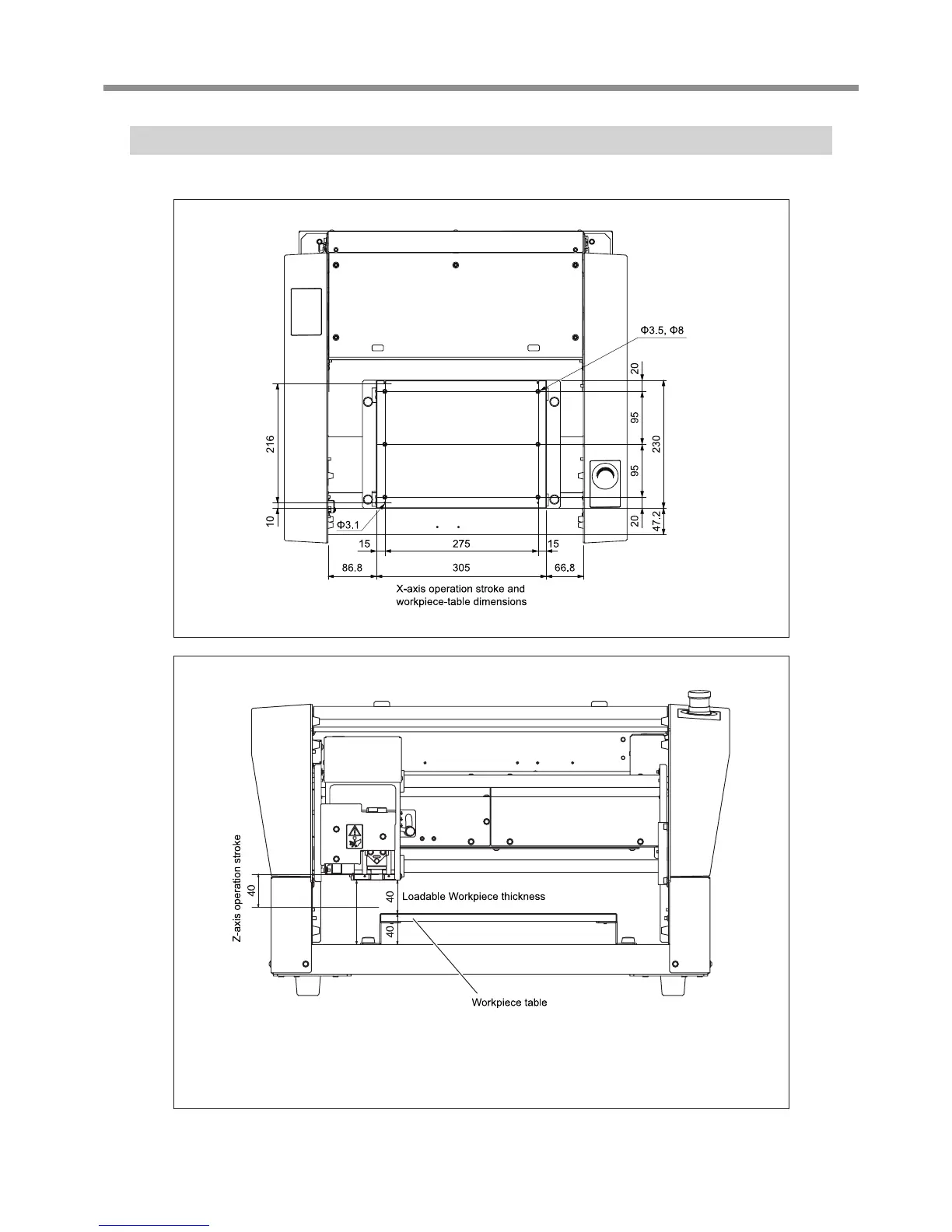

Work area
Y-axis operation stroke and workpiece-table dimensions
80
XY work area
Unit: mm
Z work area
Unit: mm
Note: Maximum workpiece thickness when the nose unit is used is 38 mm.
Note: The area in which engraving can actually be performed (the engraving area) is restricted by the length of the
installed cutter and the location where the nose unit is installed, and is smaller than the range indicated above.

Roland EGX-350 Specifications

General

Drive System	Stepper motor
Interface	USB
Engraving Area	350 x 300 mm
Engraving Area (mm)	300 x 210 mm
Software Resolution (mm)	0.01 mm/step
Spindle Speed	7, 000 rpm
Power Supply	AC 100 - 240 V, 50/60 Hz
Acoustic Noise	65 dB (A) or less (when not cutting)
Operating Temperature	5 - 40 °C
Operating Humidity	35 to 80% (no condensation)
External Dimensions (mm)	680 x 580 x 430
