Roland EGX-350 User Manual

3-4 Moving the Cutter
Terms Indicating the Cutter Position
This manual uses the following terms to indicate the position of the cutter.
 Coordinates
Numerical values indicating the location of the cutter
 Origin
The point of origin for the coordinates
 X-axis coordinate
The distance along the X axis from the origin point
 Y-axis coordinate
The distance along the Y axis from the origin point
 Z-axis coordinate
The distance along the Z axis from the origin point
Viewing the Cutter Position
The cutter position is displayed on the handy panel’s main screen.

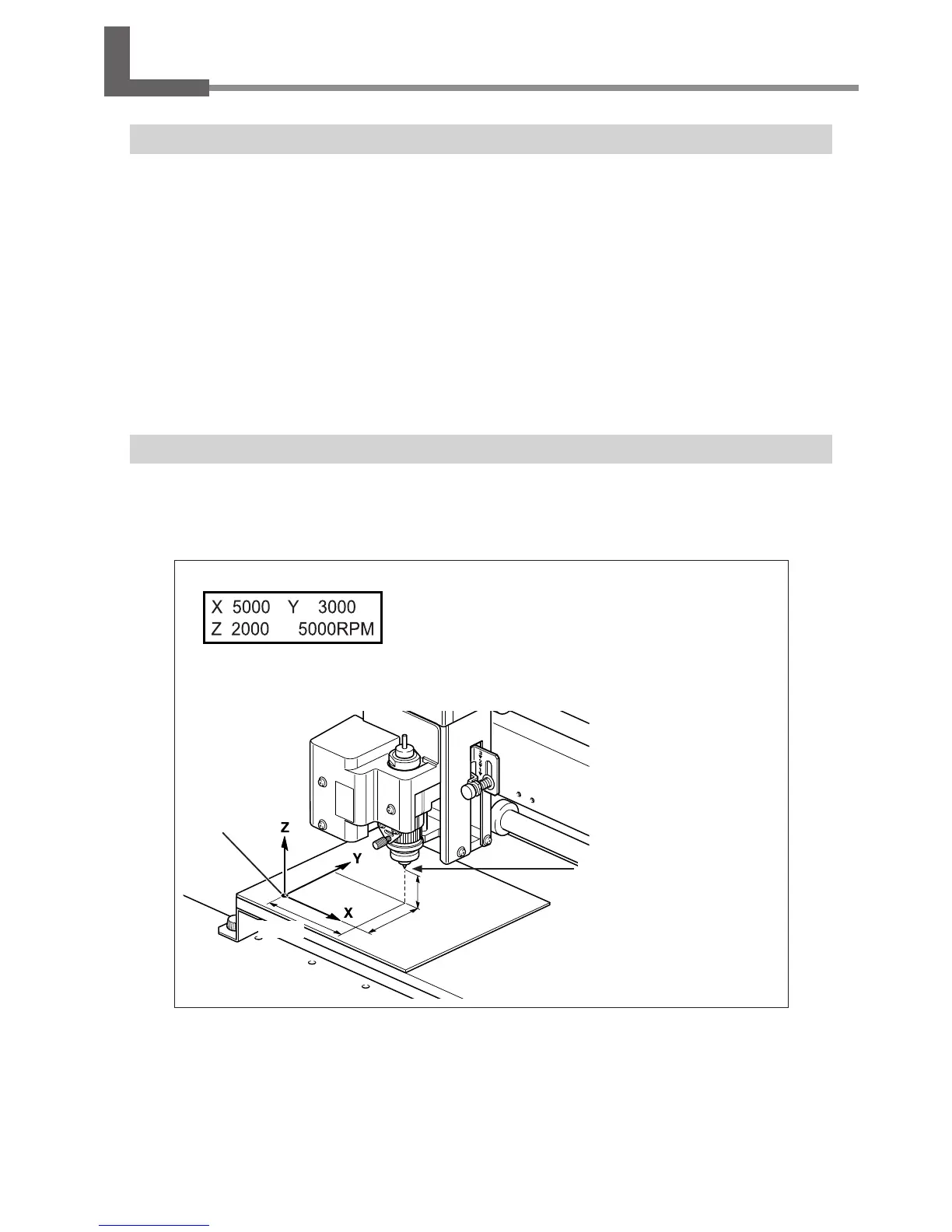

The gure below shows the main screen when the cutter has moved from the origin point by 50 millimeters along the X axis,
30 millimeters along the Y axis, and 20 millimeters along the Z axis.
In the indication of coordinates used on this machine, a unit of “1” corresponds to 0.01 millimeter.
Main screen
50 mm
30 mm
20 mm
This position is displayed as
“X = 5000, Y = 3000, Z = 2000.”
Origin
Chapter 3 Basic Operation
43

Roland EGX-350 Specifications

General

Drive System	Stepper motor
Interface	USB
Engraving Area	350 x 300 mm
Engraving Area (mm)	300 x 210 mm
Software Resolution (mm)	0.01 mm/step
Spindle Speed	7, 000 rpm
Power Supply	AC 100 - 240 V, 50/60 Hz
Acoustic Noise	65 dB (A) or less (when not cutting)
Operating Temperature	5 - 40 °C
Operating Humidity	35 to 80% (no condensation)
External Dimensions (mm)	680 x 580 x 430
