67

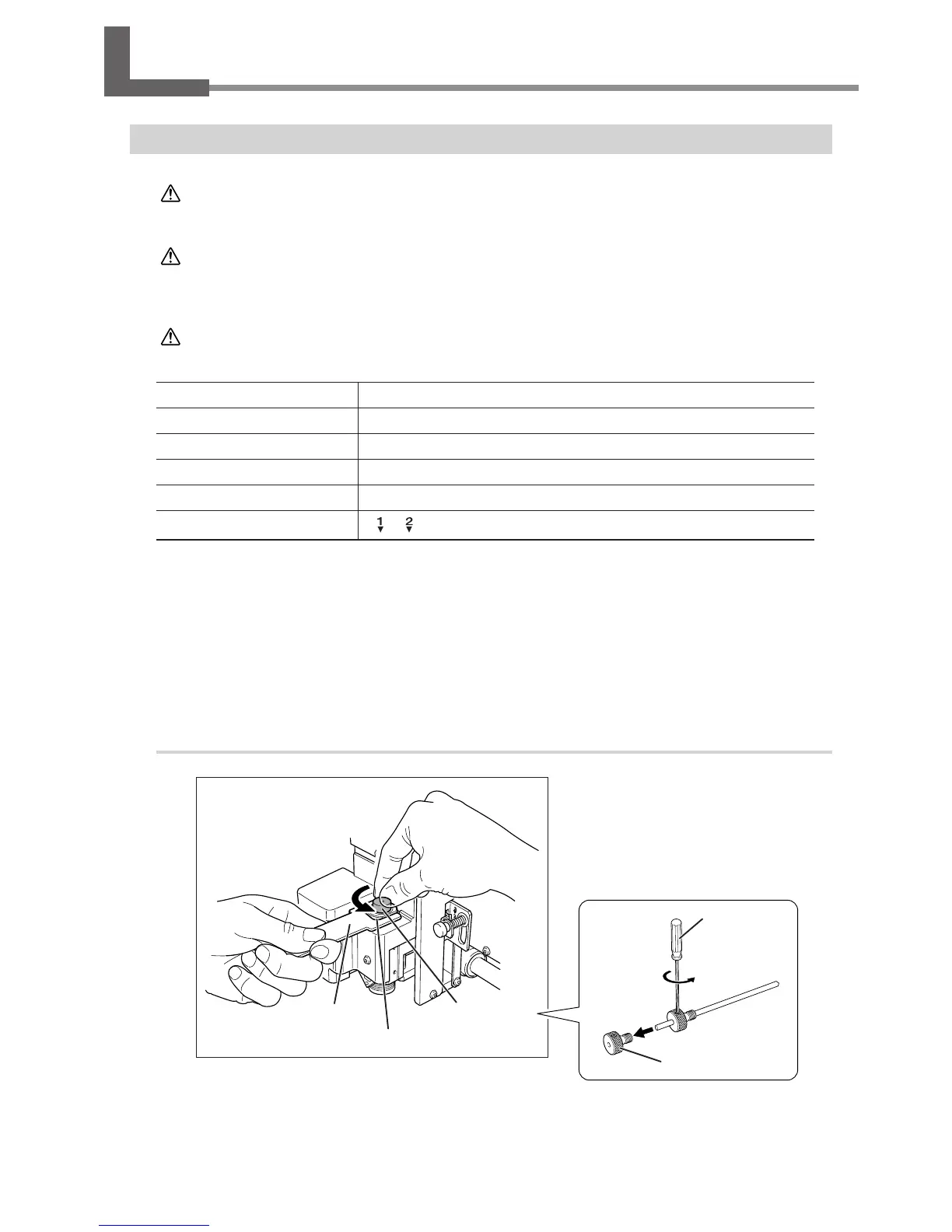

4-6 Cutter Installation Method 3 (Diamond Scraper)
Installing a Diamond Scraper
WARNING
Never inadvertently touch the computer or handy panel while performing this
task.
Unintended operation of the machine may result in injury
WARNING
Securely fasten the cutting tool and in place. After securing in place, make sure
no wrenches or other articles have inadvertently been left behind.
Otherwise such articles may be thrown from the machine with force, posing a risk
of injury.
CAUTION
Caution: cutting tool.
The cutting tool is sharp. To avoid injury, exercise caution.
Type of cutter used Diamond scraper
Nose-unit usage Not Used
Suitable workpiece types Aluminum, brass
Automatic Z-axis control On
Spindle rotation O
Lock-lever position
or
This performs scribing using a diamond scraper. With scribing, cutting is carried out by scraping the workpiece without
rotating the spindle. Because automatic Z control is set to “on,” the cutting-in depth for the workpiece is determined
by the pressure of the cutter. For this reason, this method is not suitable for deep engraving.
Diamond scrapers are optionally available items.
Diameter-3.175 millimeter diamond scrapers can be used with the included solid collet.
Diameter-4.36 millimeter diamond scrapers cannot be used with the included solid collet. Provide an optionally available
dedicated diamond-scraper collet separately.
1.
Install the cutter holder and solid collet.
Install the cutter holder.
While holding the spindle unit immobile with a
wrench, tighten the cutter holder.
The cutter holder is reverse-threaded (that is, you
turn it counterclockwise to tighten it). Be careful
to turn it in the correct direction.
Wrench
Spindle unit
Cutter holder
Loose
Hexagonal
screwdriver
Cutter holder
To Next Page
