Mechanical mounting
6.4 Installing the stator in the spindle housing
SIMOTICS M-1FE2 built-in motors
122 Hardware Installation Manual, 04/2020, A5E50074509B AA
4. To improve sliding, rub the O-ring seals with an appropriate grease or talcum.

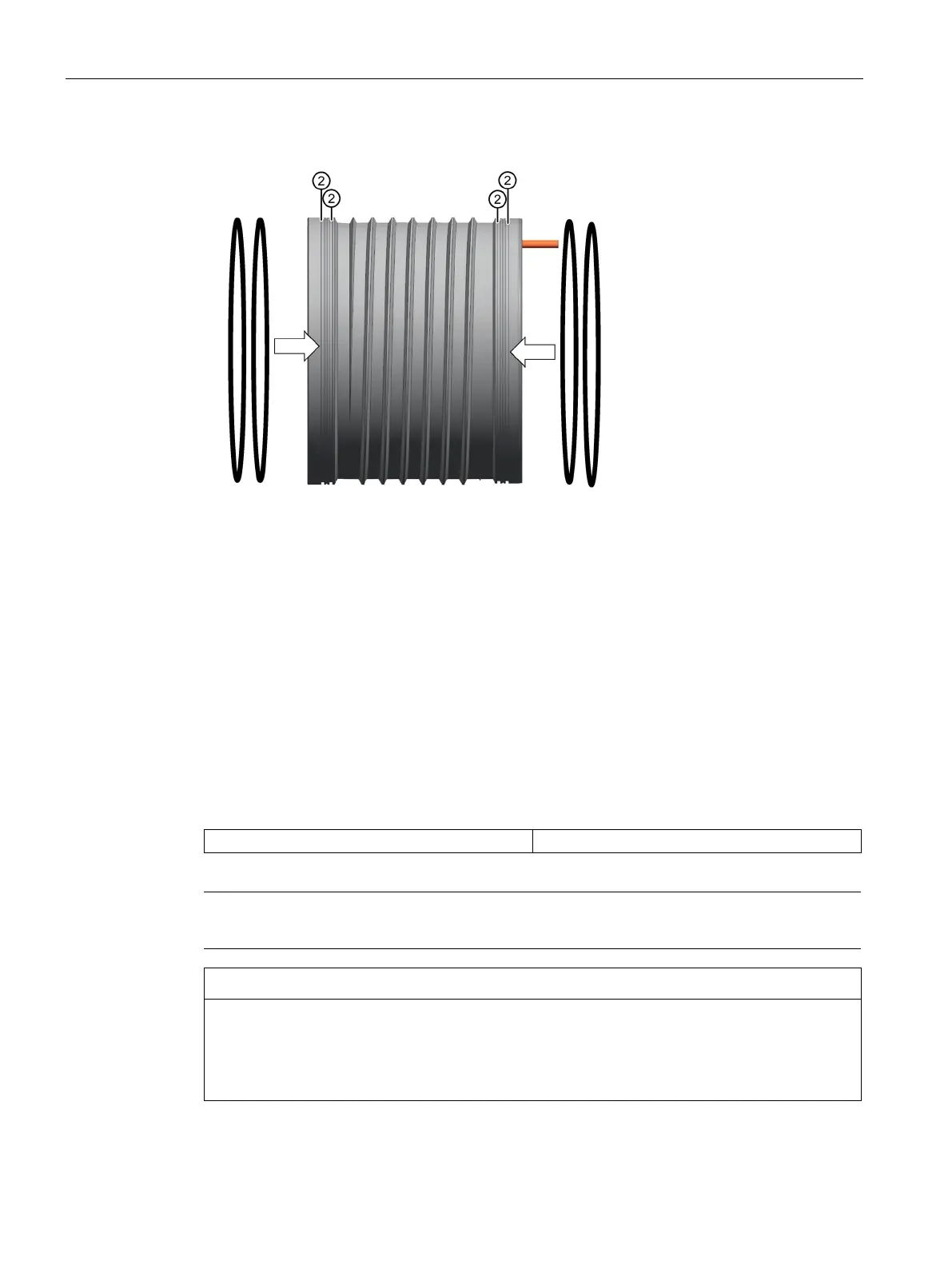

The slots for the O-ring seals
Figure 6-20 Mounting the O-ring seals in the stator with cooling jacket
5. Insert the O-ring seals in the slots.
6. If necessary, screw the eyebolts with spacer sleeves into the front face of the cooling
jacket for the attachment of the hoisting gear.
Alternatively, you can use an internal mandrel.
❒
6.4.3.3 Mounting the stator with cooling jacket in the stator housing
This chapter describes the installation of the stator core with cooling jacket in the spindle
housing.
There are several variants for mounting the stator in the spindle housing.
Vertical mounting of the spindle housing
Horizontal mounting of the spindle housing
Note
The spindle manufacturer is responsible for selecting and executing the joining process.
Risk of damage to the winding and insulation from incorrect assembly
Incorrect installation of cast and impregnated rotors can cause damage to the winding and
insulation.
• Use only such equipment and tools that guarantee installation without any damage.
