Siemens SIMOTICS Series Hardware Installation Manual

Description
3.5 Structure of the Article No.
SIMOTICS M-1FE2 built-in motors
Hardware Installation Manual, 04/2020, A5E50074509B AA
55
3.5 Structure of the Article No.
The article number comprises a combination of digits and letters. It is divided into three
hyphenated blocks.

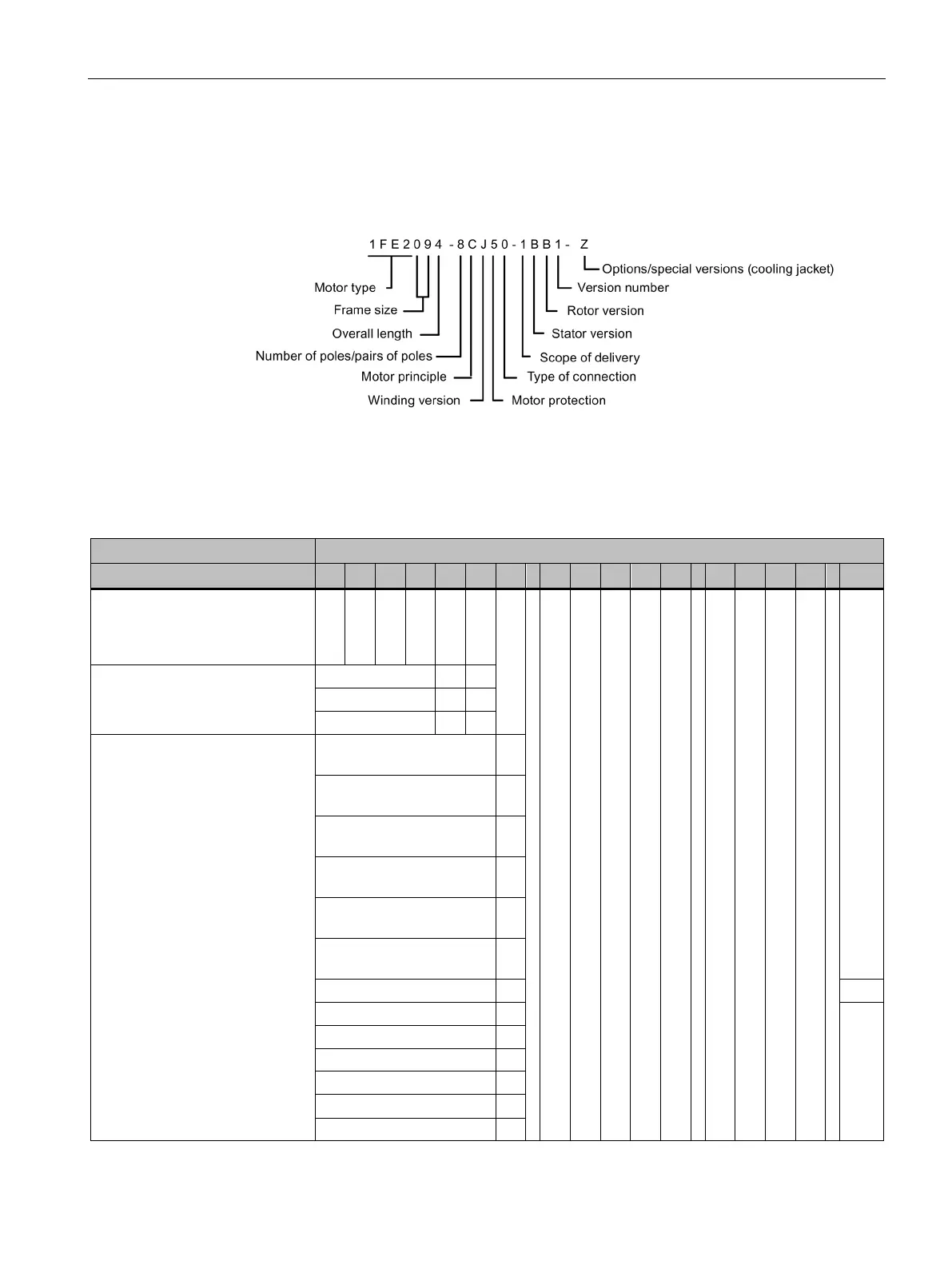

Figure 3-14 Structure of the article number 1FE2
Possible combinations are provided in Catalog NC 62, NC82 and D21.4, as well as in the DT
configurator.
Please note that not every theoretical combination is available.
Description
Position of the article number
1
2
3
4
5
6
7
-
8
9
10
11
12
-
13
14
15
16
-
Z
SIMOTICS M-1FE2 synchronous
built-in motors
Standard type with water cooling,
machine tools main spindle drive
1
F
E
2
Frame size without cooling jacket
90 mm
0
9
140 mm 1 4
180 mm
1
8
Active length
100 mm (all except
1FE218☐)
2
150 mm (all except
1FE218☐)
3
200 mm (all except
1FE218☐)
4
250 mm (all except
1FE218☐)
5
300 mm (all except
1FE218☐)
6
350 mm (all except
1FE218☐)
7
Special length
9
G1☐
200 mm (1FE218☐ only)
2
250 mm (1FE218☐ only)
3
300 mm (1FE218☐ only)
4
350 mm (1FE218☐ only)
5
400 mm (1FE218☐ only)
6
450 mm (1FE218☐ only)
7
