User Manual 5 Electrical Connection

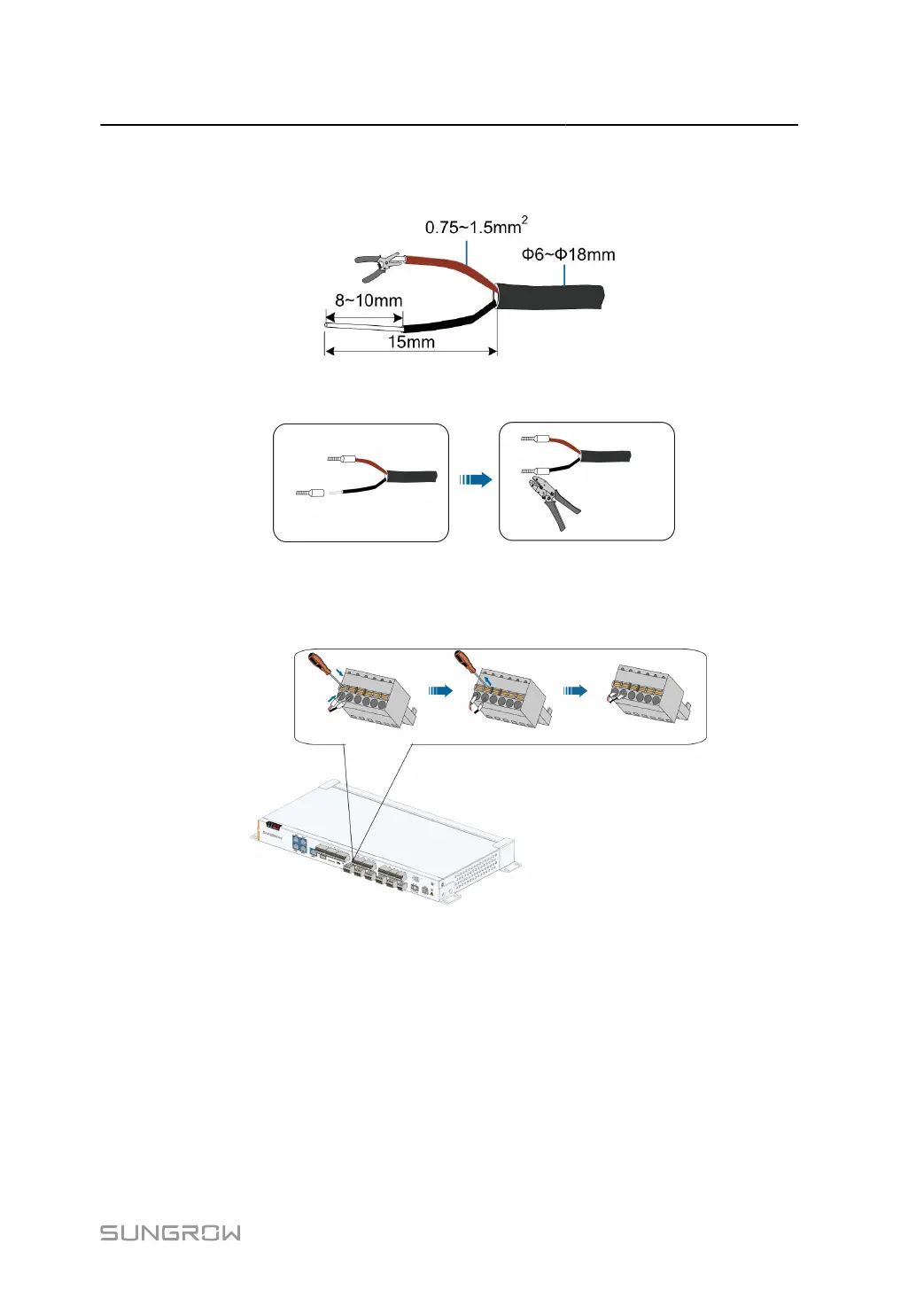

step 1 Strip the protection layer and insulation layer of the dry contact output signal cable with a wire
striper, as shown in the figure below.
step 2
Install cord-end terminals and crimp them with crimping pliers.
step 3
Connect the cord end terminals to plugs “DO1”~”DO4" outside the Data Logger, as shown below.
Port “DO1" is taken as an example.
- - End
5.9 Wiring of AI Signal
The AI port is used to access AI signals of devices such as environmental monitoring
sensors. It is recommended that the signal transmission distance not exceed 10m.
33
