5 Electrical Connection User Manual

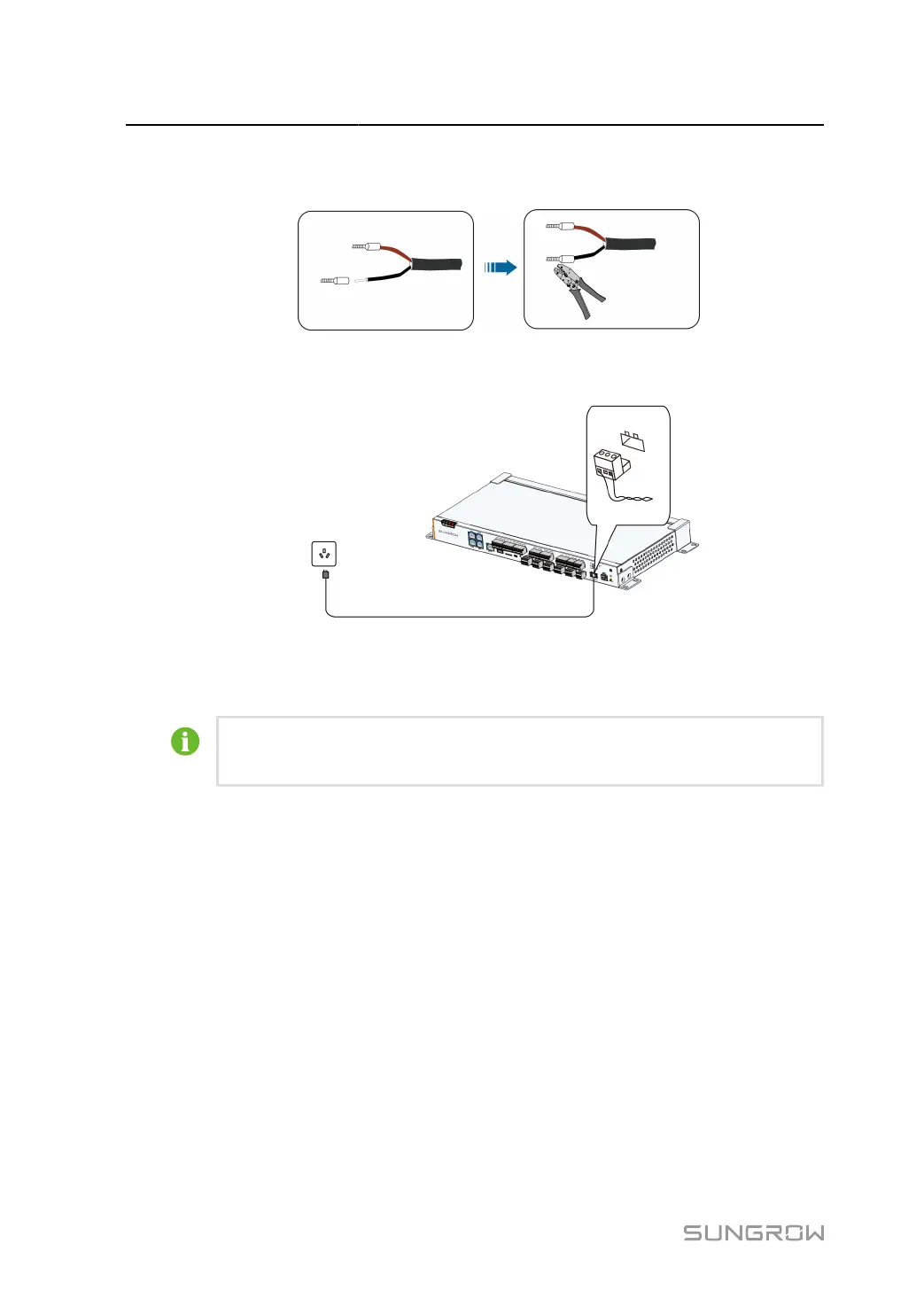

step 3 Install appropriate cord end terminals on the power cables after removing the protective layer
and insulation layers, and use a crimping tool to securely crimp them.
step 4
Connect the cord end terminals to the plug "AC IN 100~277V, 0.48A" outside the Data Logger.
- - End
The Data Logger can be connected to both AC power supply and DC power
supply. UPS can be used as a DC backup power source.
5.13 Connecting to the DC Power Supply
The Data Logger can be connected to 24Vdc external power supply. UPS can be used as a
power source.
