5 Electrical Connection User Manual
5.14 Earthing Connection
Prerequisites
WARNING
The grounding cable should be grounded reliably. Otherwise:
It may cause fatal electric shock to the operator in case of failure.
The equipment may be damaged when struck by lightning.

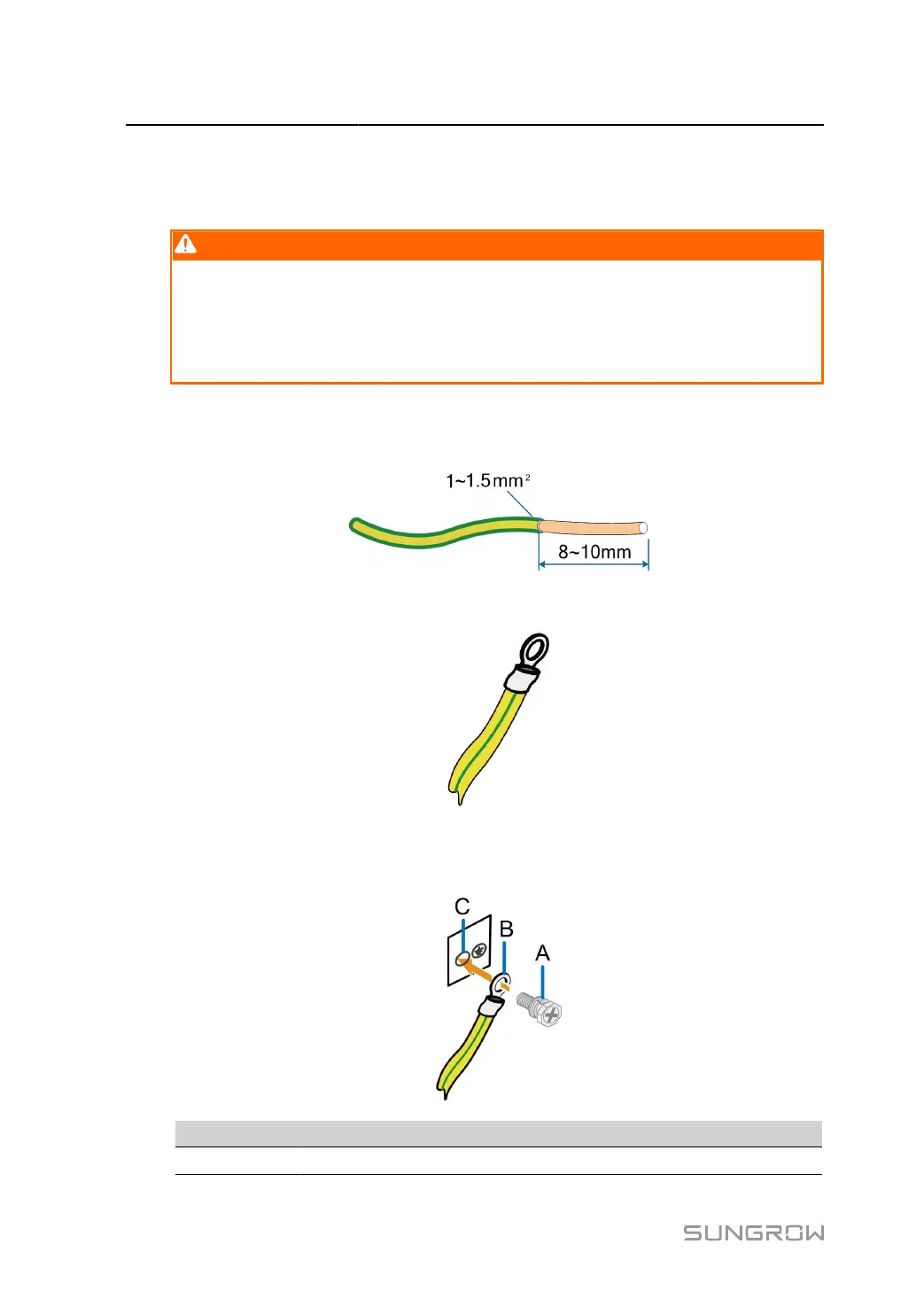

step 1 Strip the protection layer and insulation layer of the grounding cable by specific length, as shown
in the figure below.
step 2
Select proper OT terminal and crimp them.
step 3 Secure the grounding cable to the grounding hole of the Data Logger, as shown in the figure
below.
Item Definition Remarks
A Screw M4
40
