Tektronix DPO77002SX User Manual

Choosing a trigger type
Your instrument allows you to modify basic trigger parameters from the Auxiliary Front Panel or set up more advanced triggers in
the Trigger Setup control window.
NOTE. Some trigger type selections are not available on some instruments.

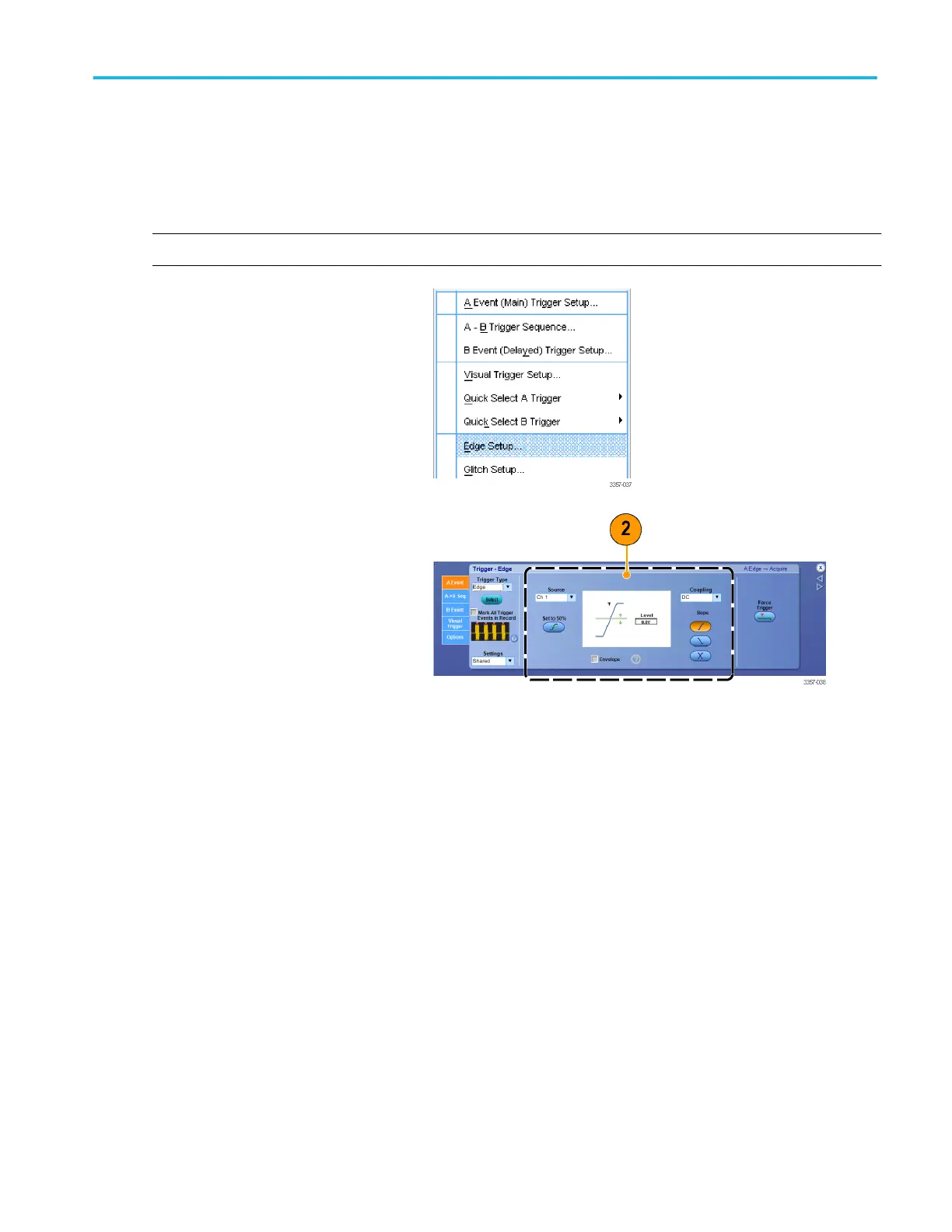

1. Select Trig > Edge Setup.
2. Set the source, slope, coupling, and
mode using the setup menu.
Pinpoint triggers
DPO70000SX Series User 81
