Setting up analog signal input
Use the drop down menus or the Auxiliary Front Panel to set up your instrument to acquire the signal.
If using the drop down menus, do the following steps:

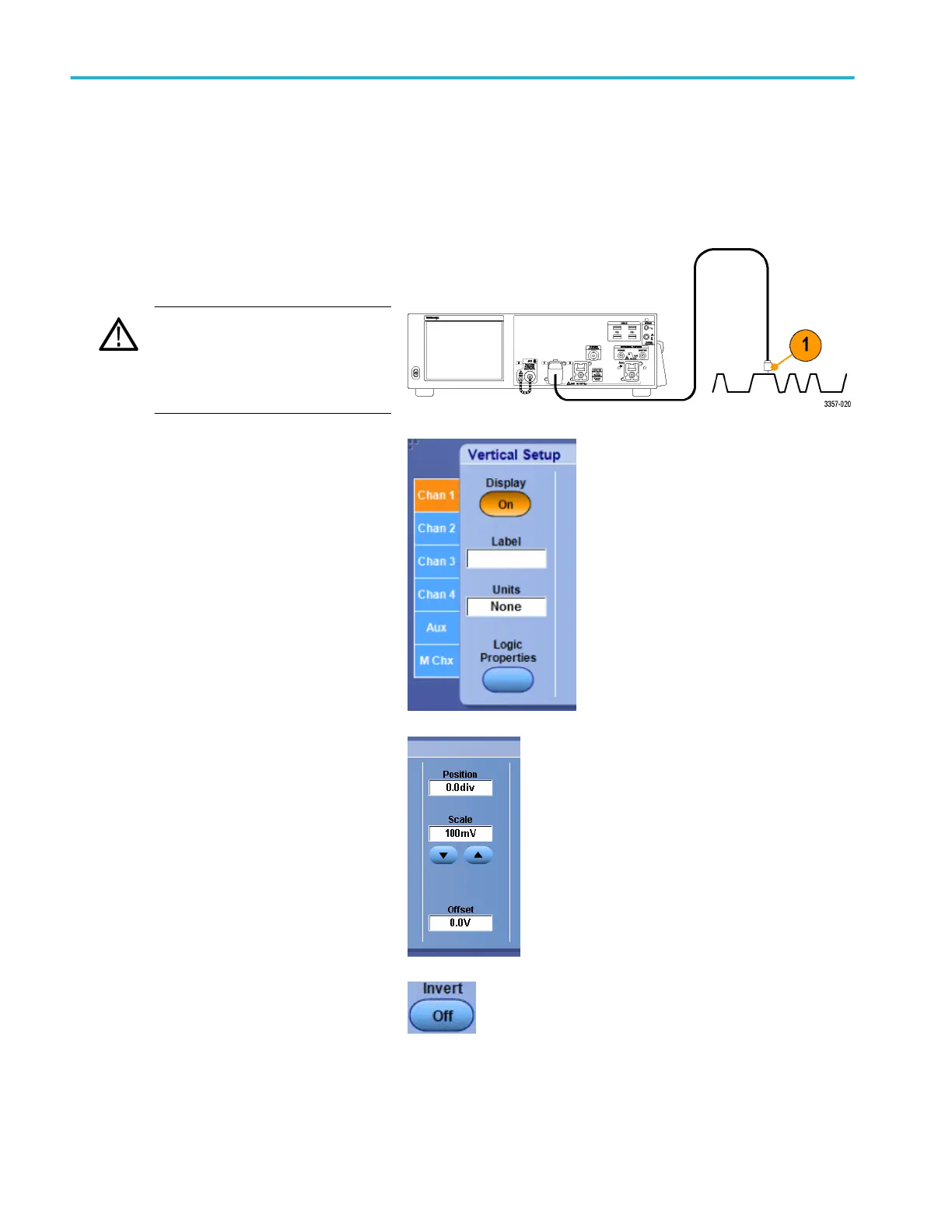

1. Connect the probe or cable to the input
signal source.
CAUTION. To prevent damage to the
instrument, always wear an antistatic
wrist strap when making connections to
the instrument and observe the maximum
input voltage ratings for input connectors.
2. Select the input channel: Select Vertical
> Vertical Setup. Select the tab for the
channel you want to select, and then
press the Display button to toggle the
channel on or off.
3. Select Horiz/Acq > Autoset.
4. Select Vertical > Vertical Setup. Adjust
the vertical position, scale, and offset:
Double click the Position, Scale, and
Offset controls and use the pop-up
keypad make the adjustment.
5. If you want to invert the input signal, click
the Invert button to toggle invert on and
off. The Invert button is in the Vertical
Setup menu or the Deskew/Attenuation/
Invert menu.
Acquisition
46 DPO70000SX Series User
