Triggering on buses
You can use your instrument to trigger on I
2
C, SPI, RS-232/422/485/UART, MIPI DSI-1, MIPI CSI-2, 8B/10B, USB, CAN, and
parallel buses. The instrument can display both physical layer (as analog waveforms) and protocol level information (as digital
and symbolic waveforms).
NOTE. Some trigger types are not available on some instruments.
For detailed bus triggering procedures, use the following procedures: See Triggering on a parallel bus on page 94. and See
Triggering on a serial bus on page 96.

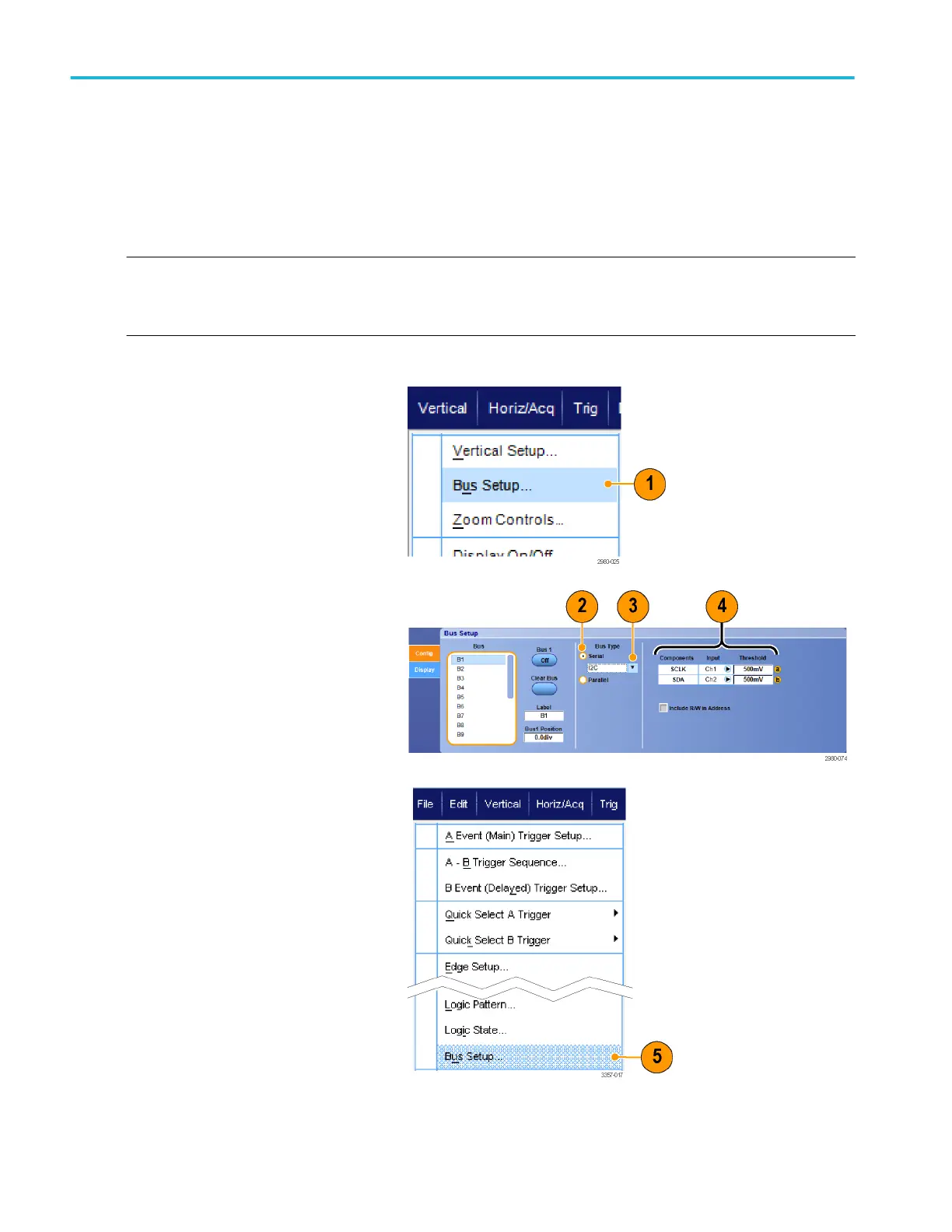

To set up the bus trigger:
1. Select Vertical > Bus Setup.
2. Select a bus type.
3. If you selected the Serial Bus Type,
select the type of serial bus.
4. Specify the components.
5. Select Trig > Bus Setup.
Application examples
184 DPO70000SX Series User
