Setting up action on event
Action on Event allows configure the oscilloscope to save a variety of files when a defined event takes place, such as a trigger
events, mask test failures, and limit test failures.

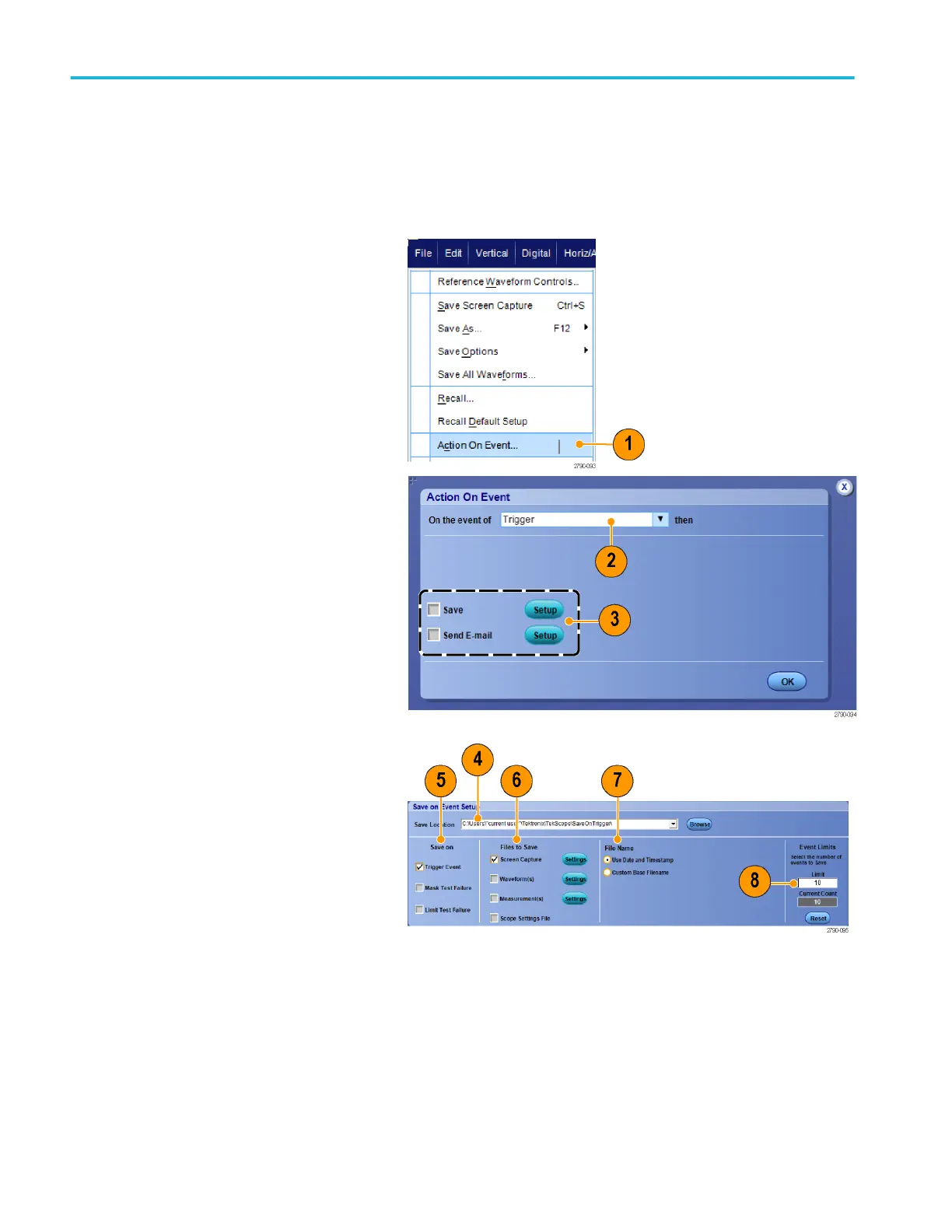

1. Select File > Action on Event.
2. Select the event to use.
3. Select the action to take when the event
occurs. Select Save, Send E-mail, or
both.
Use the Setup button (next to Save) to
display the Save on Event Setup display
screen.
Use the Setup button (next to Send E-
mail) to display the Send E-mail Setup
display screen. See Setting up E-Mail on
event on page 102.
4. Enter the location to save the files.
5. Select the event that initiates a save.
6. Select what type of files to save on the
event.
7. Set the file naming convention to use.
8. Set the number of events to save.
