Correcting trigger position
Trigger position correction corrects for differences in the data path and the trigger path to more accurately place the trigger on the
displayed waveform. Trigger position correction can also use averaging to more accurately place the trigger on noisy signals. To
more accurately place edge triggers on the display, perform the following procedure.

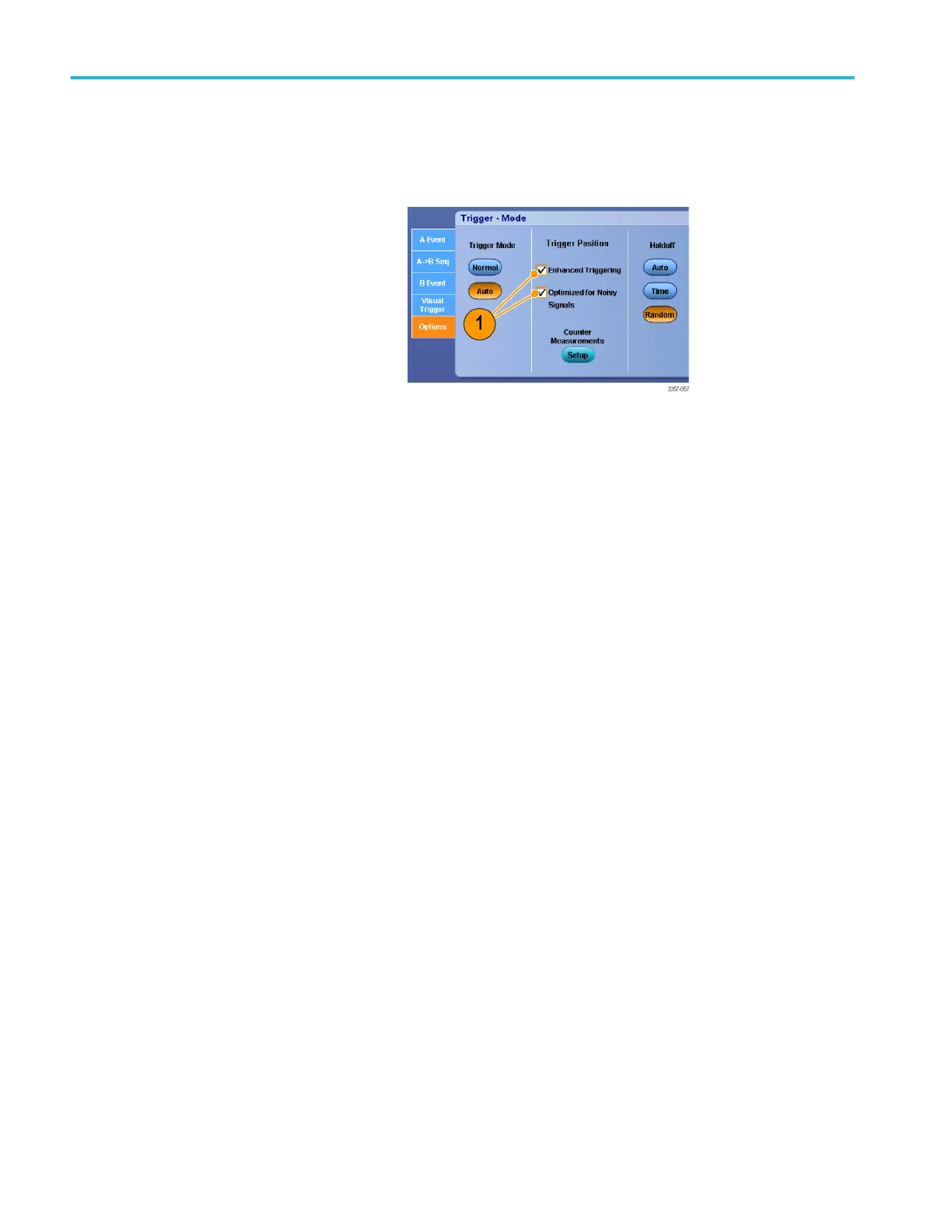

1. To more accurately place the trigger on
the display, check Enhanced Triggering.
To more accurately place the trigger on
noisy signals, also check Optimized for
Noisy Signals.
The Optimized for Noisy Signals
selection is only available if Enhanced
Triggering is selected.
Pinpoint triggers
90 DPO70000SX Series User
