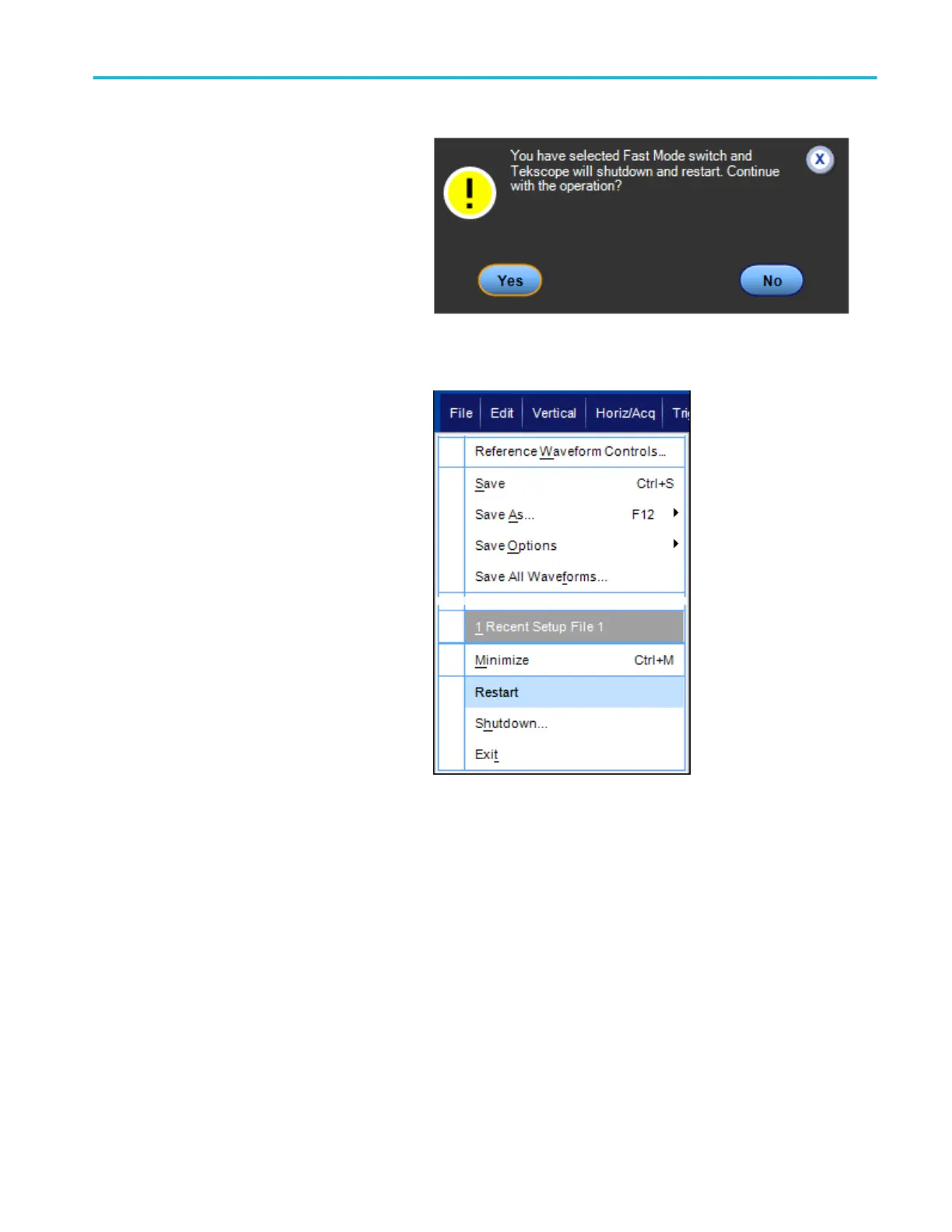

2. Click Yes to continue.
Restart of a multi-instrument system. To restart your multi-instrument system without powering down the oscilloscopes, do the
following step:
1. To shut down the Configuration Manager
and all of the Scope applications and
then restart them without changing the
configuration mode, select File > Restart.
ATI versus TekConnect channels
ATI channels provide up to 70 GHz bandwidth and 200 GS/s sample rate and the lowest noise. When using the ATI channel, the
TekConnect channels are not available.
TekConnect channels have up to 33 GHz bandwidth and 100 GS/s sample rate. TekConnect channels offer multiple connection
options with TCA adapters, and are compatible with a wide range of performance probes.
Install your instrument
DPO70000SX Series User 21
