Run application software
Each application is available for ten free trials on your instrument. These applications provide application-specific measurement
solutions. Some examples are described below. Additional packages may be available. Some applications may not be available
on your instrument. Contact your Tektronix representative or visit our Web site at www.tektronix.com for more information.
■
Use DJA DPOJET Jitter and Eye Diagram Analysis, Advanced to reliably measure complex clock, digital, and serial data
signals. DPOJET Essentials included standard with all models.
■
Use DJAN-DPOJET to reliably measure complex clock, digital, and serial data signals (requires option DJA).
■
Use LT Waveform Limit Testing to compare an acquired waveform to tolerance boundaries that you set.
■
Use MOST Essentials for electrical compliance and debug testing for MOST50 and MOST150.
■
Use PAM4 to enable transmitter and channel testing for four-level Pulse Amplitude Modulation (PAM4) devices and
interfaces.
■
Use SDLA64 Serial Data Link Analysis Visualizer to emulate the serial data channel, de-embed a fixture, and add or
remove transmitter equalization.
■
Use SR-810B to enable serial triggering and analysis of 8B/10B signals, requires ST6G.
■
Use SVA AM/FM/PM Audio Signal Analysis (Requires Opt. SVE) to analyze audio signals.
■
Use SVP, SVM, and SVE Spectral Analysis application to validate wideband designs and characterize wideband spectral
events.
■
Use SVO for flexible OFDM analysis, requires SVE.
■
Use SVT for settling time measurements (frequency and phase), requires SVE.
■
Use SV23 WLAN802.11a/b/g/j/p measurement application (requires Opt. SVE) to measure WLN802.11a/b/g/j/p signals.
■
Use SV24 WLAN 802.11n measurement application (requires Opt SV23) to measure WLN802.11n signals.
■
Use SV25 WLAN 802.11ac measurement application (requires Opt SV24) to measure WLN802.11ac signals.
■
Use SV27 SignalVu Bluetooth Basic LE TX SIG measurements to measure Bluetooth signals
■
Use SV28 SignalVu LTE Downlink RF measurements (requires Opt. SVE) to measure LTE Downlink RF signals
■
Use VET to enable visual trigger and search.

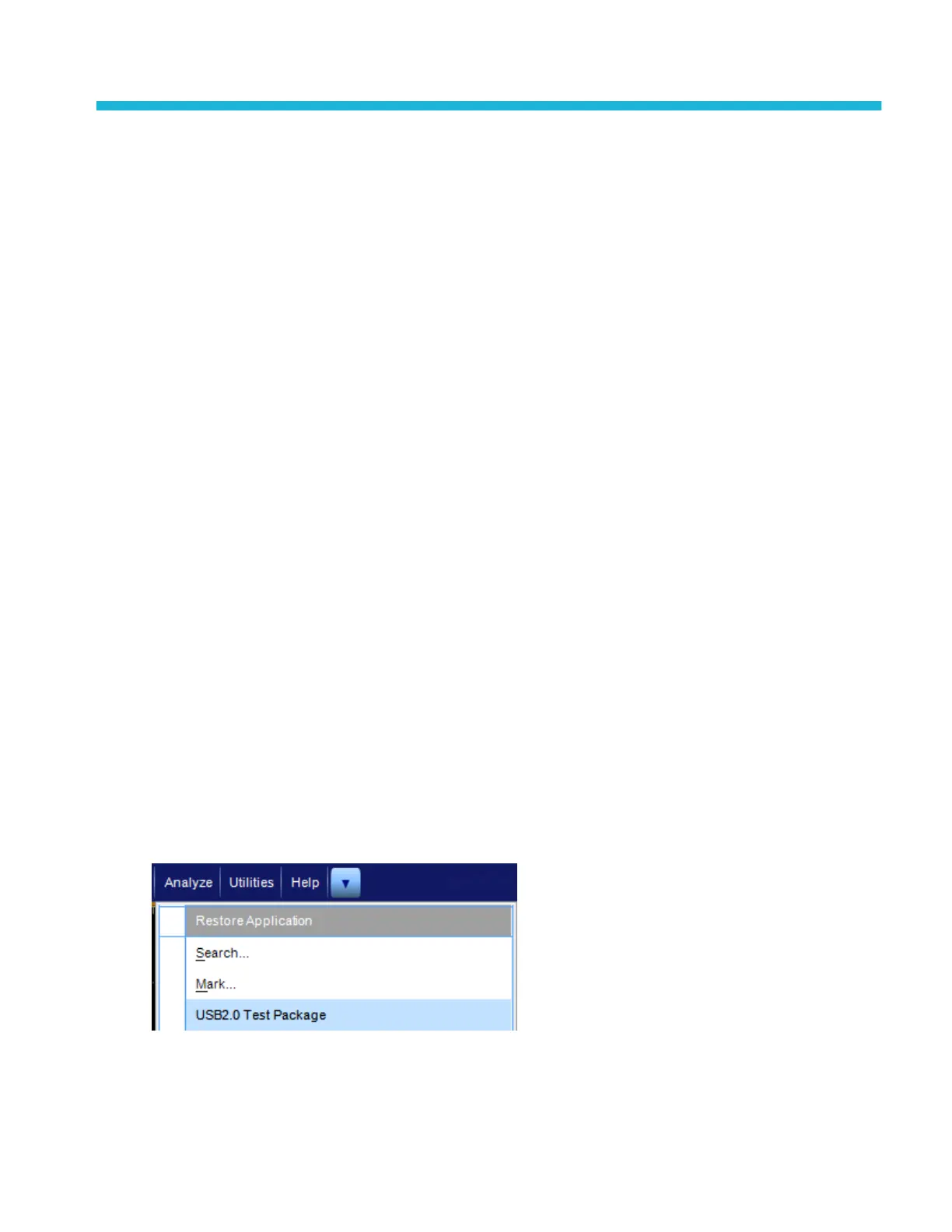

Follow the instructions provided with the application software to install it. To run the software, select Analyze and then select the
application.
DPO70000SX Series User
177
