Multi-instrument status displays

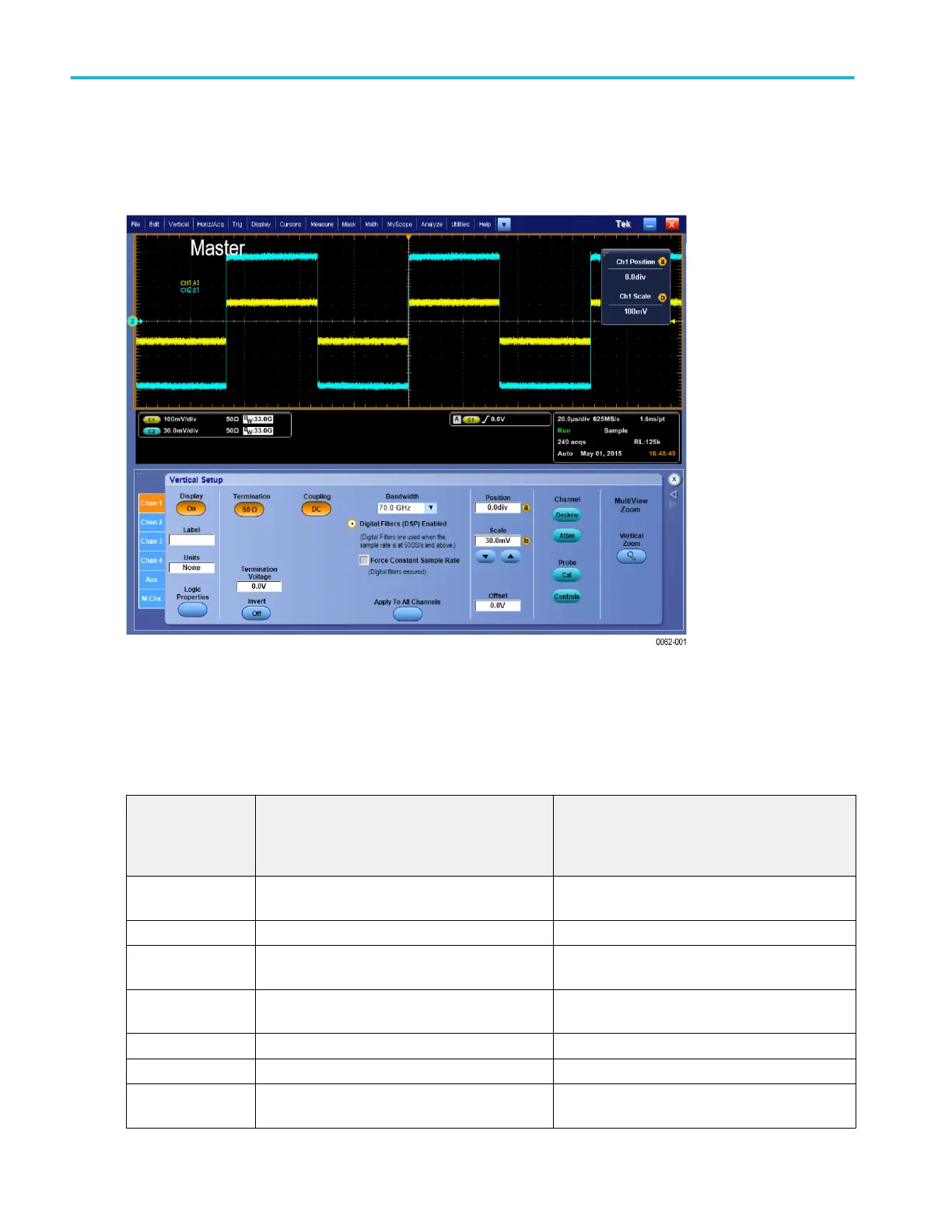

In a multi-instrument configuration, the display shows status information such as: channel numbers, on/off, run/stop, Arm/trig'd,
and UltraSync connectivity information. The master instrument also displays the trigger setup and the channels being acquired
and displayed.
Available features
Features discussed in this manual that are available on some instruments or configurations are noted in the tables.
Table 5: Stand-Alone instrument
Feature DPO77002SX
DPO75902SX
DPO75002SX
DPO73304SX
DPO72304SX
DPO71604SX
DPO71304SX
State (Clocked
Pattern) trigger
Available on TekConnect channels Available
XYZ mode Available on TekConnect channels Available
Equivalent time
acquisitions
Available on TekConnect channels Available
HiRes and peak
detect
Available on TekConnect channels Available
FastAcq Available on TekConnect channels Available
Roll mode Available on TekConnect channels Available
IRE and MV graticule
modes
Available on TekConnect channels Available
Install your instrument
22 DPO70000SX Series User
