Tektronix DPO77002SX User Manual

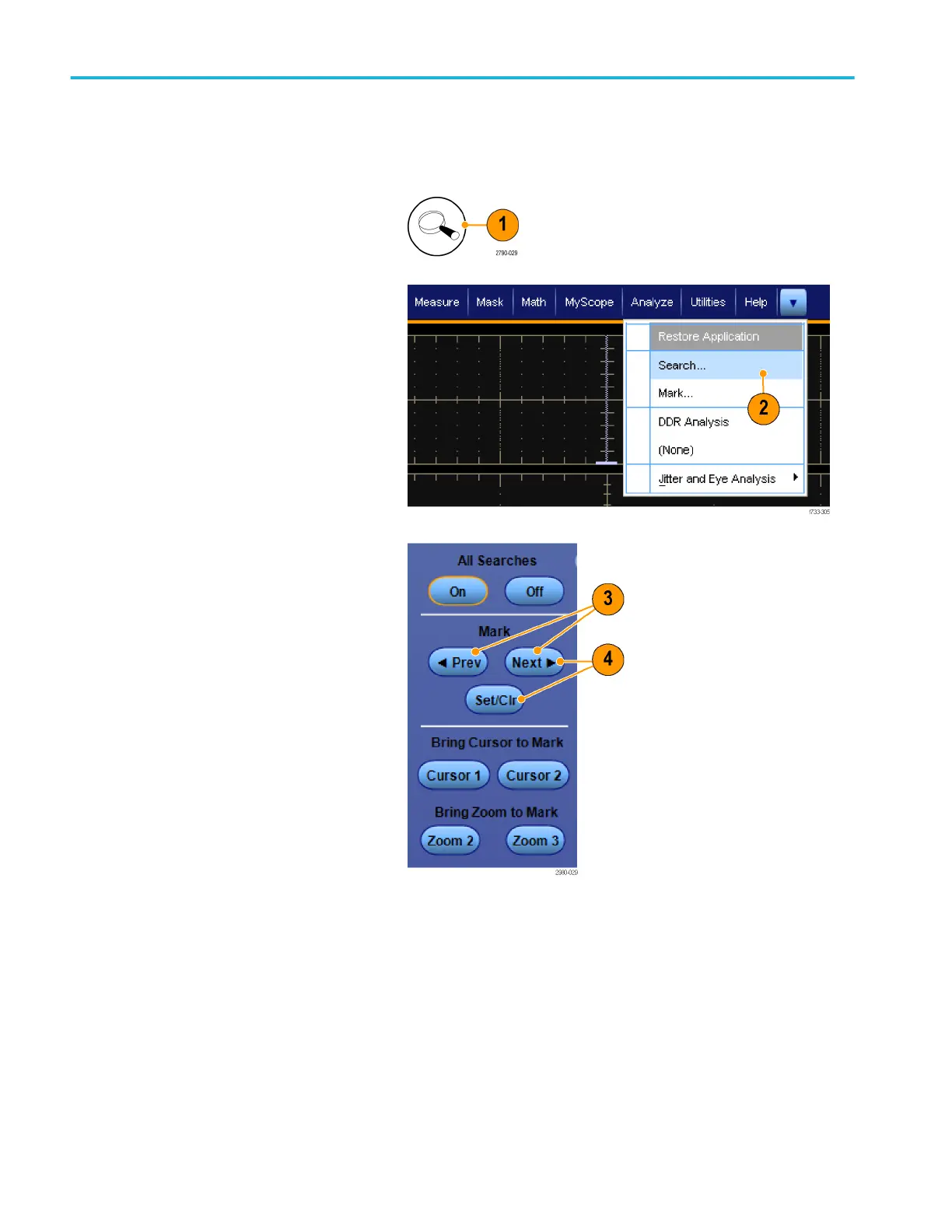

To manually set and clear (delete) marks:
1. Turn on Multiview Zoom. Zoom 1 is
used with marks.
See Using MultiView zoom on page 115.
2. Select Analyze > Search.
3. Move (the zoom box) to the area on the
waveform where you want to set (or
clear) a search mark by selecting the
bottom of the zoom box and dragging it to
the desired location or by turning a
multipurpose knob on the Auxiliary Front
Panel.
Push the Next ( →) or Prev (←) arrow
button to jump to an existing mark.
4. Push Set Clr or the Auxiliary Front Panel
Set/Clear button.
If no search mark is at the screen center,
the instrument will add one.
When a mark is created, the horizontal
zoom factor is saved. When you use Next
or Prev to move between marks, the
zoom factor is restored.
When a mark is created, the horizontal
zoom factor is saved. When you use Next
or Prev to move between marks, the
zoom factor is restored.
Display a waveform
120 DPO70000SX Series User
