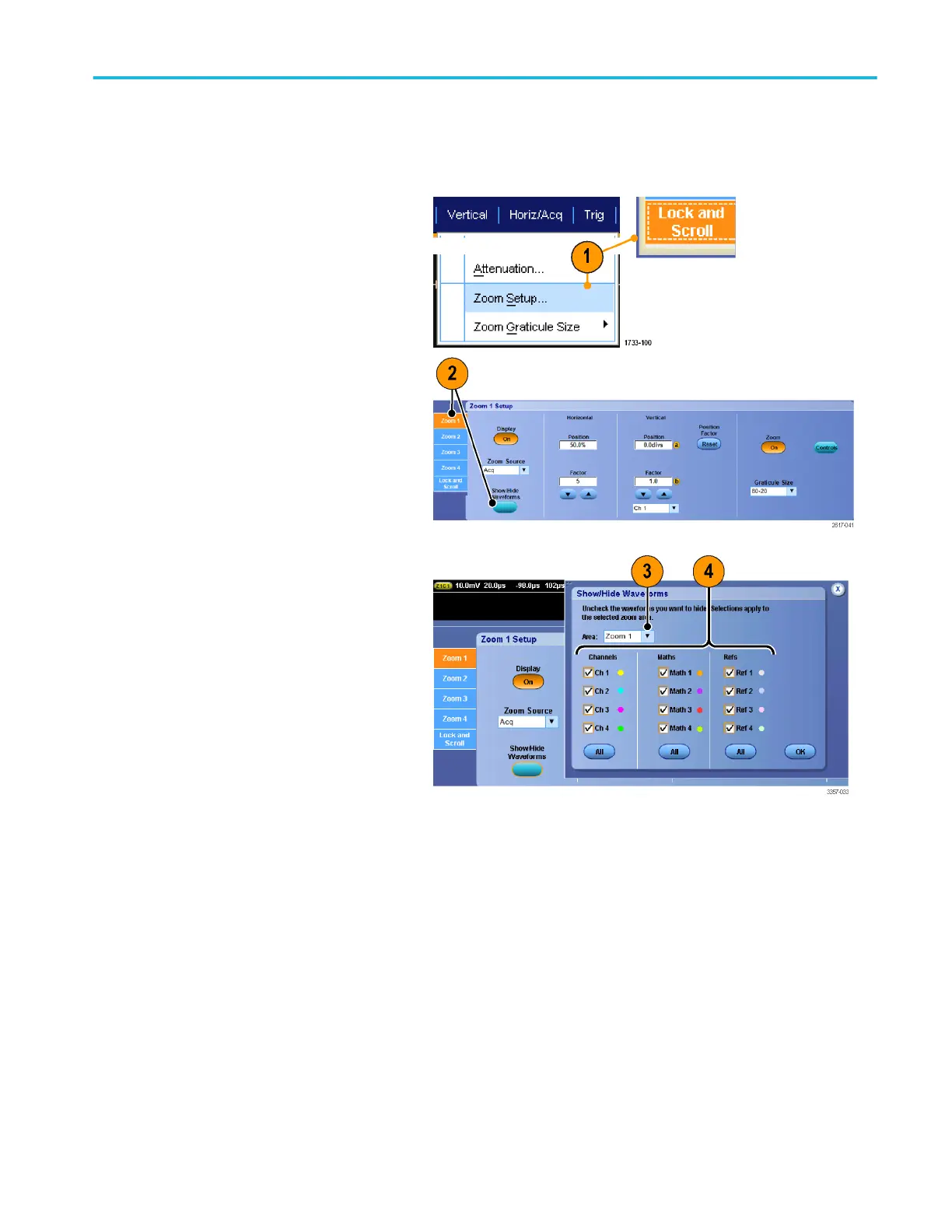

Hide waveforms in the zoomed window
1. To hide or view waveforms, select Zoom
Setup... from either the Vertical or Horiz/
Acq menu.
2. Select a Zoom tab, and then press
Show/Hide Waveforms.
3. Select the zoomed area that contains the
waveform you want to show or hide.
4. Uncheck the channel, math, or reference
waveform you want to hide.
Searching and marking waveforms
You can mark locations of interest in the acquired waveform. These marks help you limit your analysis to particular regions of the
waveform. You can mark areas of the waveform automatically, if they meet some special criteria, or you can manually mark each
item of interest. You can jump from mark to mark (area of interest to area of interest). You can automatically search and mark
many of the same parameters that you can trigger on. Many search parameters do not have the time limits as triggers. You can
search on math and reference waveforms. You can find all of the acquired events of a certain type.
Search marks provide a way to mark a waveform region for reference. Set marks automatically with search criteria. Search for
and mark regions with particular edges, pulse widths, runts, logic states, rise/fall times, setup and hold violations, and bus search
types.
Display a waveform
DPO70000SX Series User 119
