Triggering with B-Event scan
Use A->B Sequence B-Event Scan to create overlapped eye diagrams synchronized or initiated by an A trigger event.
Trig on nth Event captures the nth B-Event that occurs after the A-Event for all acquisitions. B-Event Scan automatically
advances the B-Event value to capture different portions of the signal.

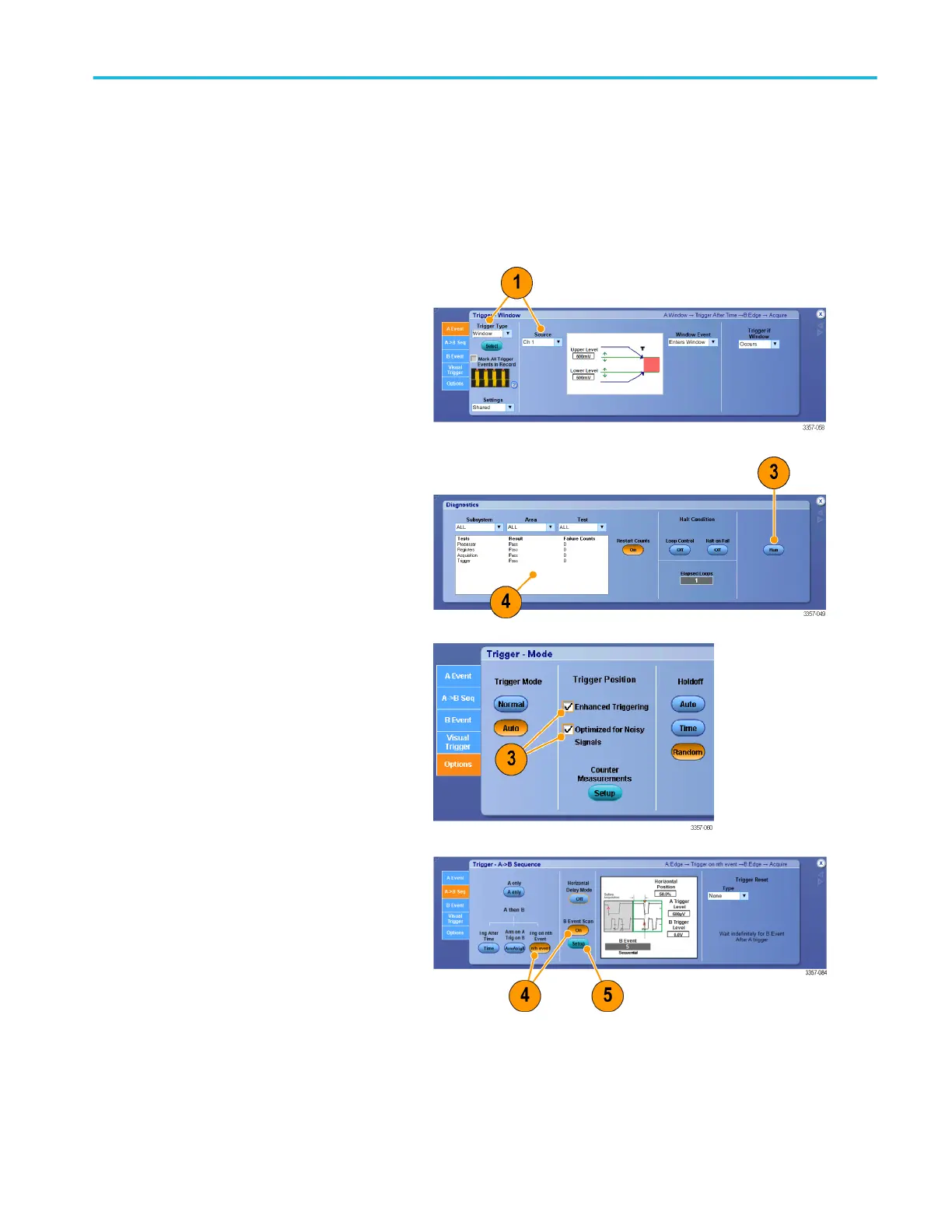

1. Set the A trigger type and source in the A
Event tab.
2. Set the B trigger type and source in the B
Event tab.
3. To more accurately place the trigger on
the display, check Enhanced Triggering.
To more accurately place the trigger on
noisy signals, also check Optimized for
Noisy Signals.
4. Select Trig on nth Event and B Event
Scan in the A>B Seq tab.
5. To display the B Event Scan Setup
window, press B Event Scan > Setup.
Pinpoint triggers
DPO70000SX Series User 91
