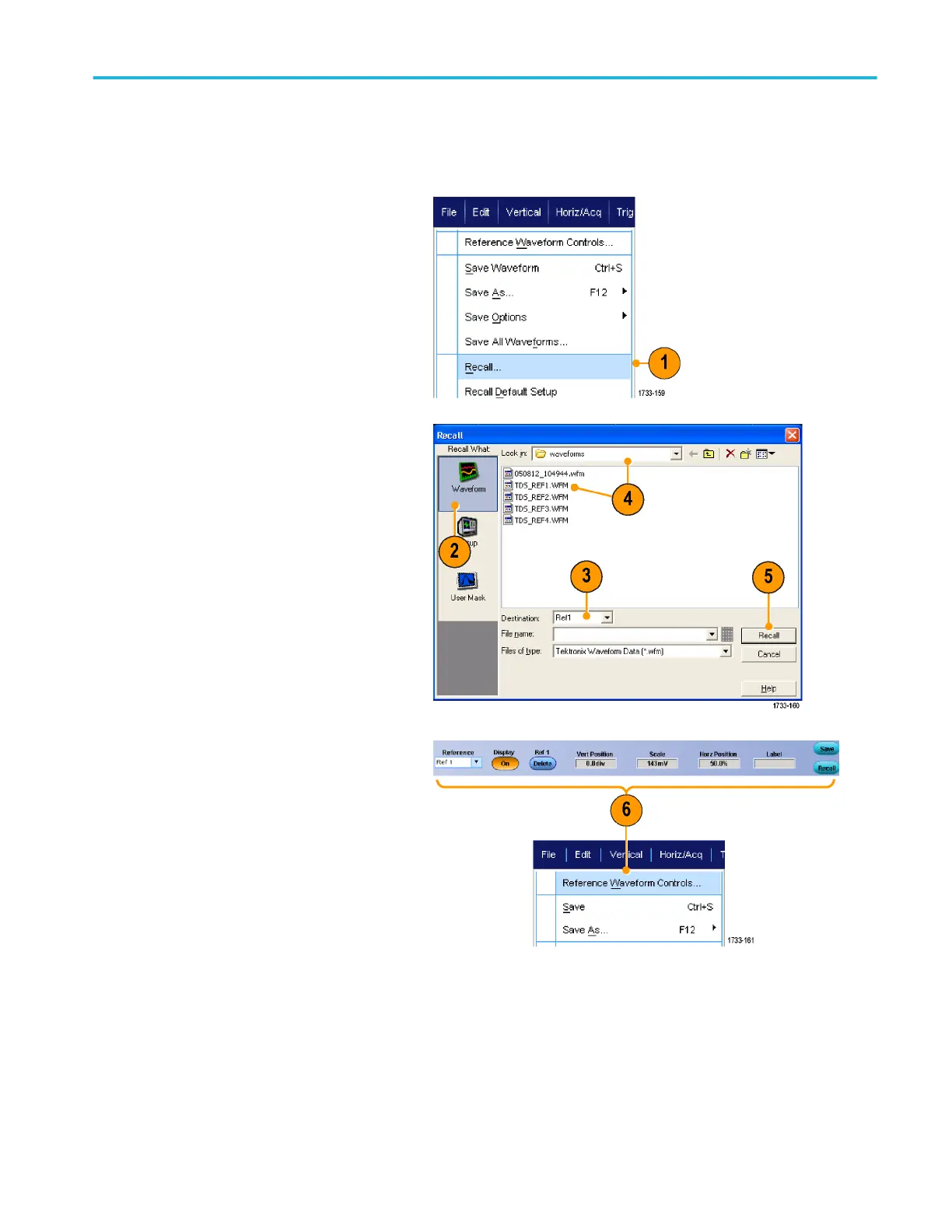

Recalling waveforms

1. Select File > Recall....

2. Click Waveform.

3. Select the Destination of the waveform

you are recalling.

4. Select the waveform to recall.

5. Click Recall. Clicking Recall turns on the

reference waveform and activates the

Reference Waveform control window.

6. Use the controls to adjust the Reference

waveform. You can also access the

Reference Waveform control window by

selecting File > Reference Waveform

Controls....

Quick tip

■

You can save several different file types but you can only recall setup (*.set) files and waveform (*.wfm) files.

Saving and recalling information

DPO70000SX Series User 167
