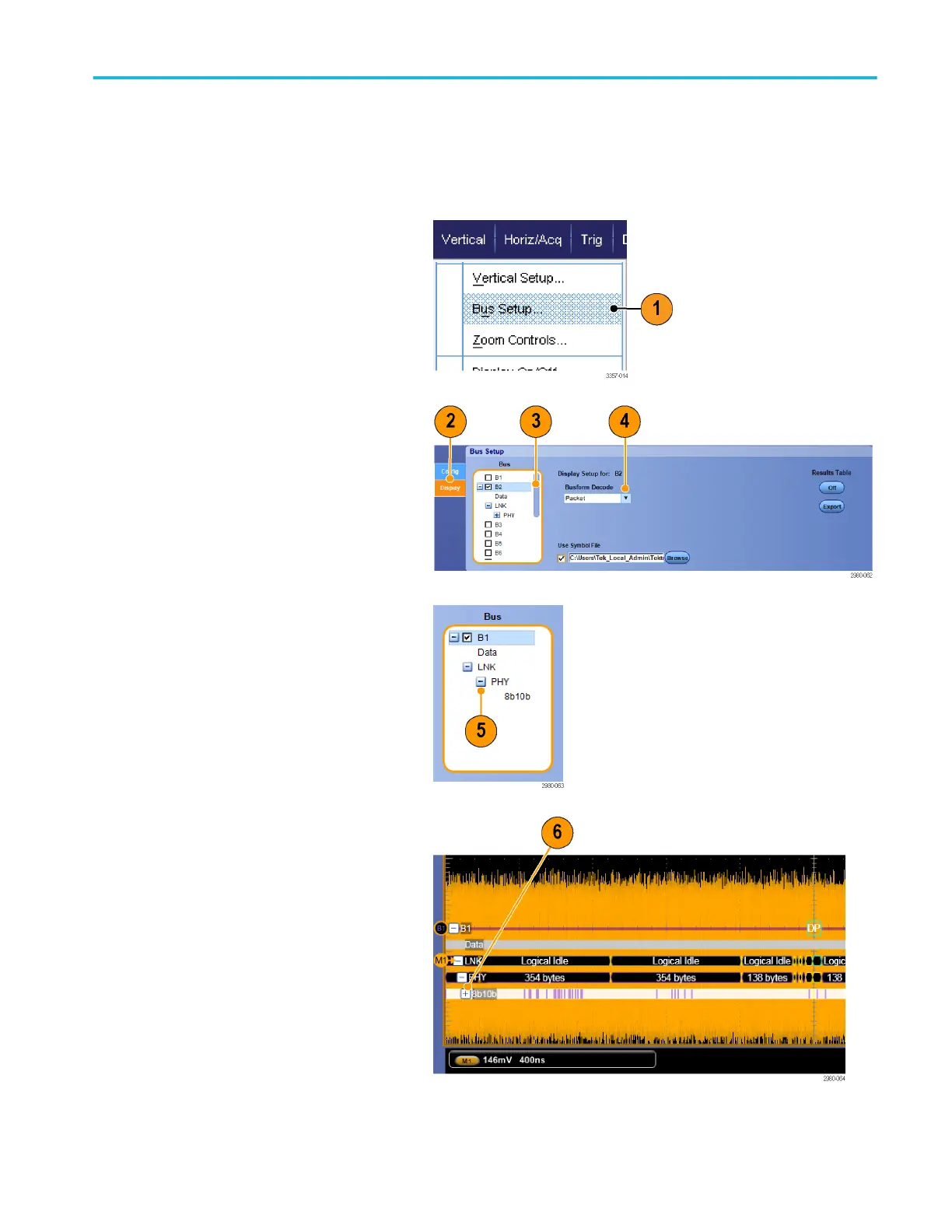

Set up bus display
You can set the bus style and decoding.
1. Select Vertical > Bus Setup.
2. Select the Display tab.
3. To select the bus, scroll to display the
bus, and then select the bus.
4. Select the decoding from the bus
decoding list.
See the online help for information on the
Results Table.
5. Click a + box to expand (display
additional) the views, or click a - box to
collapse (remove) views.
6. Bus views may also be added or
removed from the display by clicking on
the + box or - box in the display. Available
views may include Transaction/transport,
link/framing/packets, physical/bytes/
symbols, and bit level.
Acquisition
DPO70000SX Series User 73
