Before startup
All instruments in a multi-Instrument configuration must be connected properly before powering on the instruments. If the
configuration is changed after the instruments are powered on, a system restart may be required.
If an instrument is not connected in a multi-instrument configuration, the instrument powers on in its stand alone mode, not multi-
instrument mode.

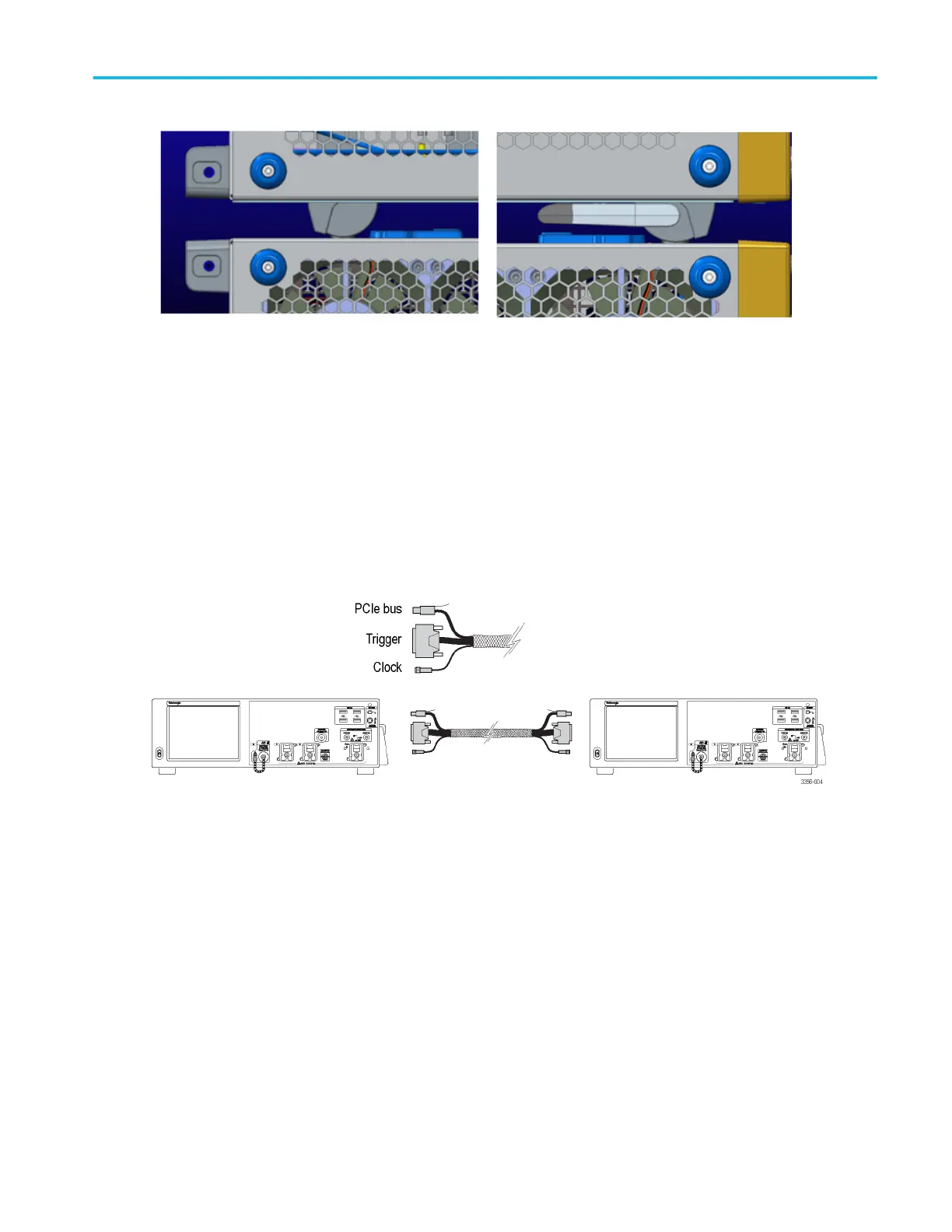

UltraSync
™
bus cable
An UltraSync bus cable will connect any multi-instrument configuration capable instrument.
All cables must be connected to the instruments prior to power up. A restart will be required if the instruments are turned on
before the cables are connected.
UltraSync
™
bus cable connection order
Connect UltraSync bus cable bundles to the Master:
1. Select which instrument will be the Master instrument.
At the Master instrument connect each UltraSync cable bundle set to the designated ports (start with the To Extension B
ports; then if connecting a third instrument use the To Extension C ports, and then if connecting a fourth instrument use the
To Extension D ports):
2. Connect the clock cable to the 12.5 GHz Clock Out connector (8 in-lbs torque).
3. Connect the Trigger cable to the Trigger connector.
4. Connect the PCIe cable to the PCIe connector.
Install your instrument
DPO70000SX Series User 13
