8. Install tire and check the brake operation again. If
satisfactory brake adjustment/operation cannot be
attained, the brake pucks require service. Refer
to the Brake Maintenance section of Hydro-Gear
manual 310-0510.
9. With the parking brake released and the bypass
lever in push mode, the rear wheels must rotate
freely when you push the unit. If they do not rotate
freely, repeat steps 1 through 8 above.
Throttle/Choke Cable Replacement
Removal
Note: The steering wheel has been removed for
photo purposes.

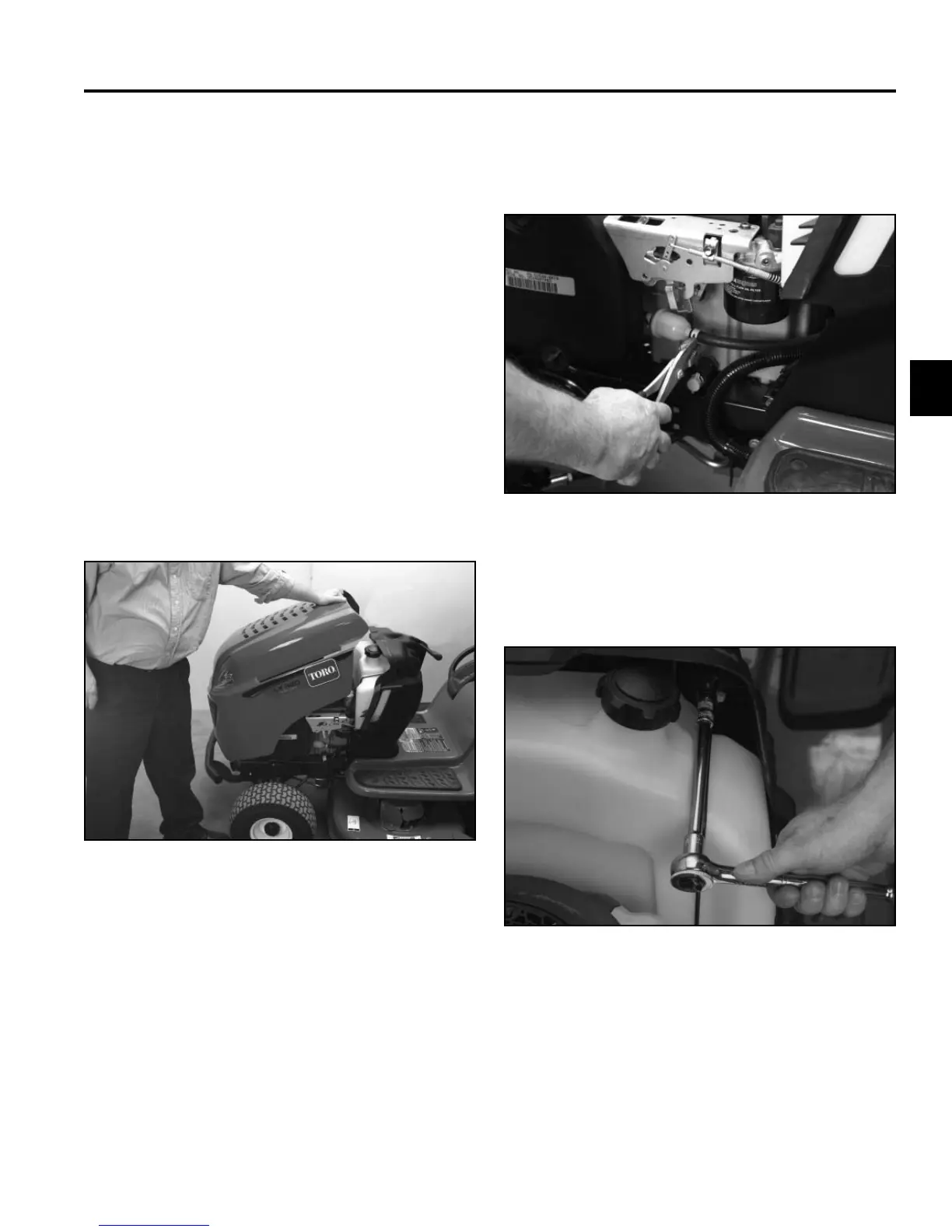

1. Raise the hood (Fig. 354).
Fig 354 PICT-7063a
3. Remove the two screws securing the fuel tank
support rods to the tower supports (Fig. 356).
Fig 356 PICT-7099a
2. Disconnect the fuel line from the fuel fi lter and drain
all the fuel from the fuel tank into an approved
container (Fig. 355).
Fig 355 PICT-7094
