GEAR DRIVE SYSTEM
5-9LX Lawn Tractor Service Manual
5

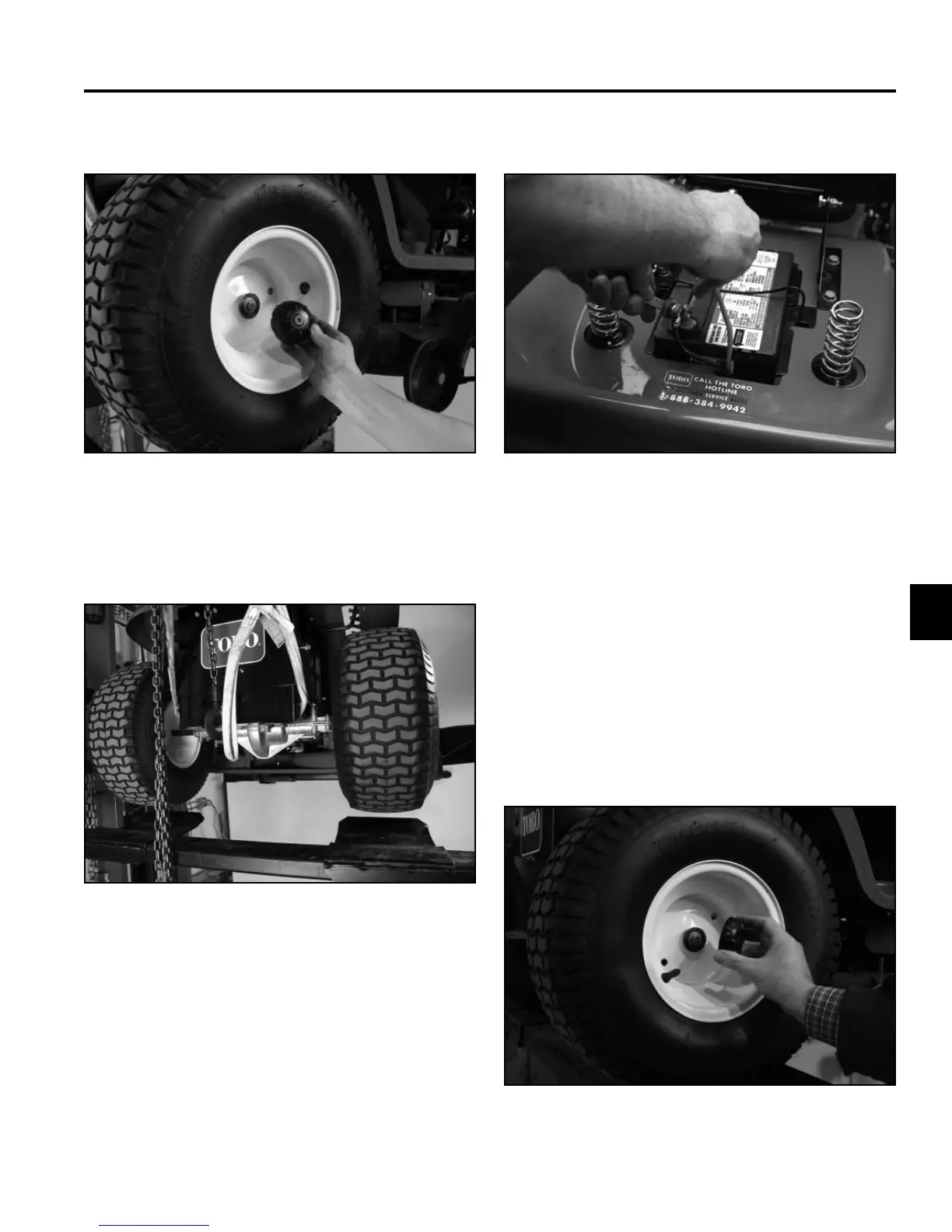

Fig 466 PICT-7107
20. Install the negative battery cable (Fig. 466).
Fig 465 PICT-7219
19. Lower the tractor and remove it from the hoist/fl oor
jack (Fig. 465).
21. Test operate tractor in forward and reverse. Ensure
the reverse caution mode system is functioning
properly.
18. Install both rear hub caps (Fig. 464).
Fig 464 PICT-7220
Brake Puck Replacement
Removal
1. Remove the hub cap from the right rear wheel (Fig.
467).
Fig 467 PICT-9608
