MOWER DECK
7-23LX Lawn Tractor Service Manual
7

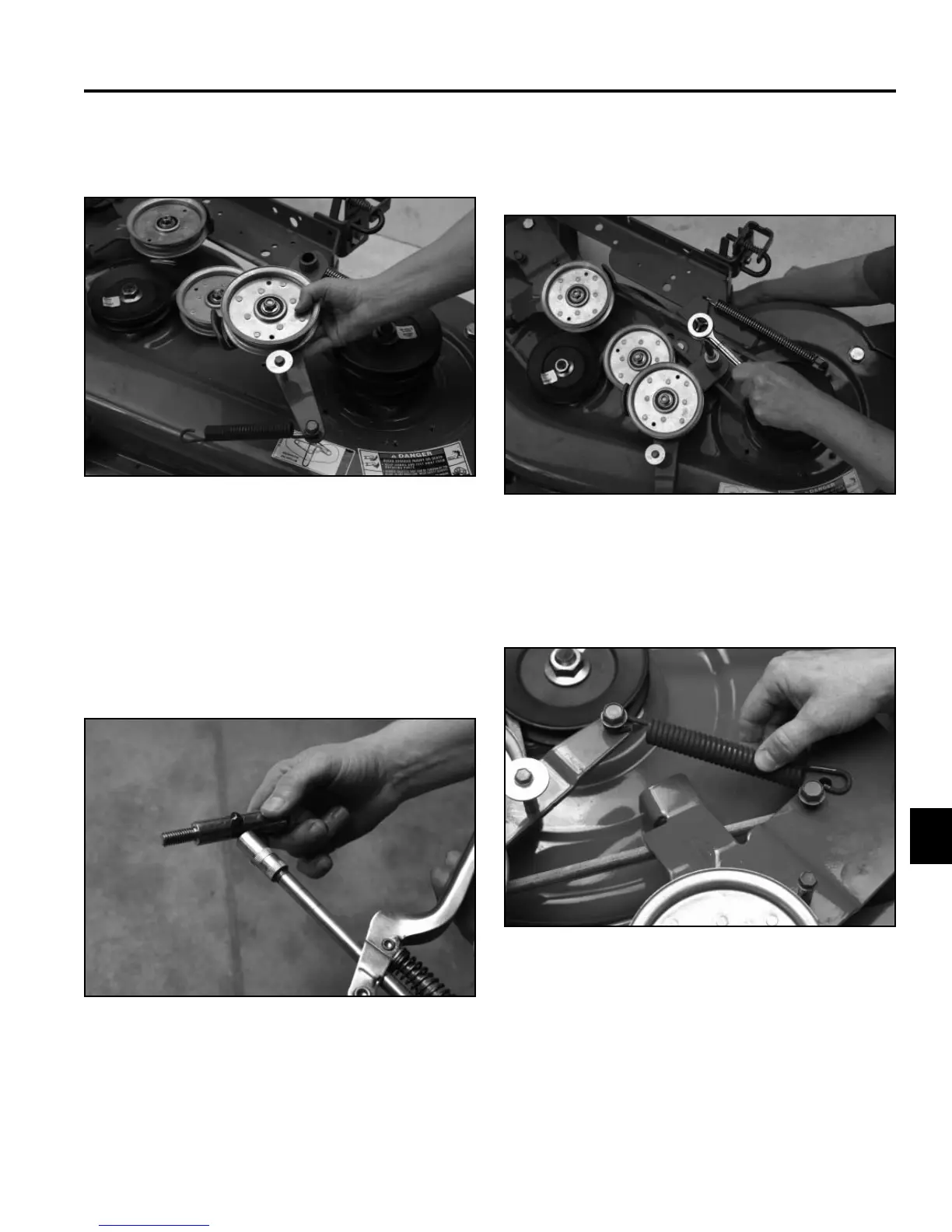

46” Mower Deck - LH Idler Assembly
Installation
9. Remove the left hand idler assembly from the mower
deck (Fig. 629).
2. Install the left hand idler bracket to the mower deck
with the shoulder bolt and nut. Tighten the shoulder
bolt and nut (Fig. 631).
Fig 629 PICT-7895
Fig 631 PICT-7890
3. Hook the extension spring to the right idler bracket
assembly (Fig. 632).
1. Apply No. 2 multi-purpose lithium grease to the
shoulder surface of the shoulder bolt (Fig. 630).
Fig 632 PICT-7854
Fig 630 PICT-7869
