MOWER DECK
7-13LX Lawn Tractor Service Manual
7

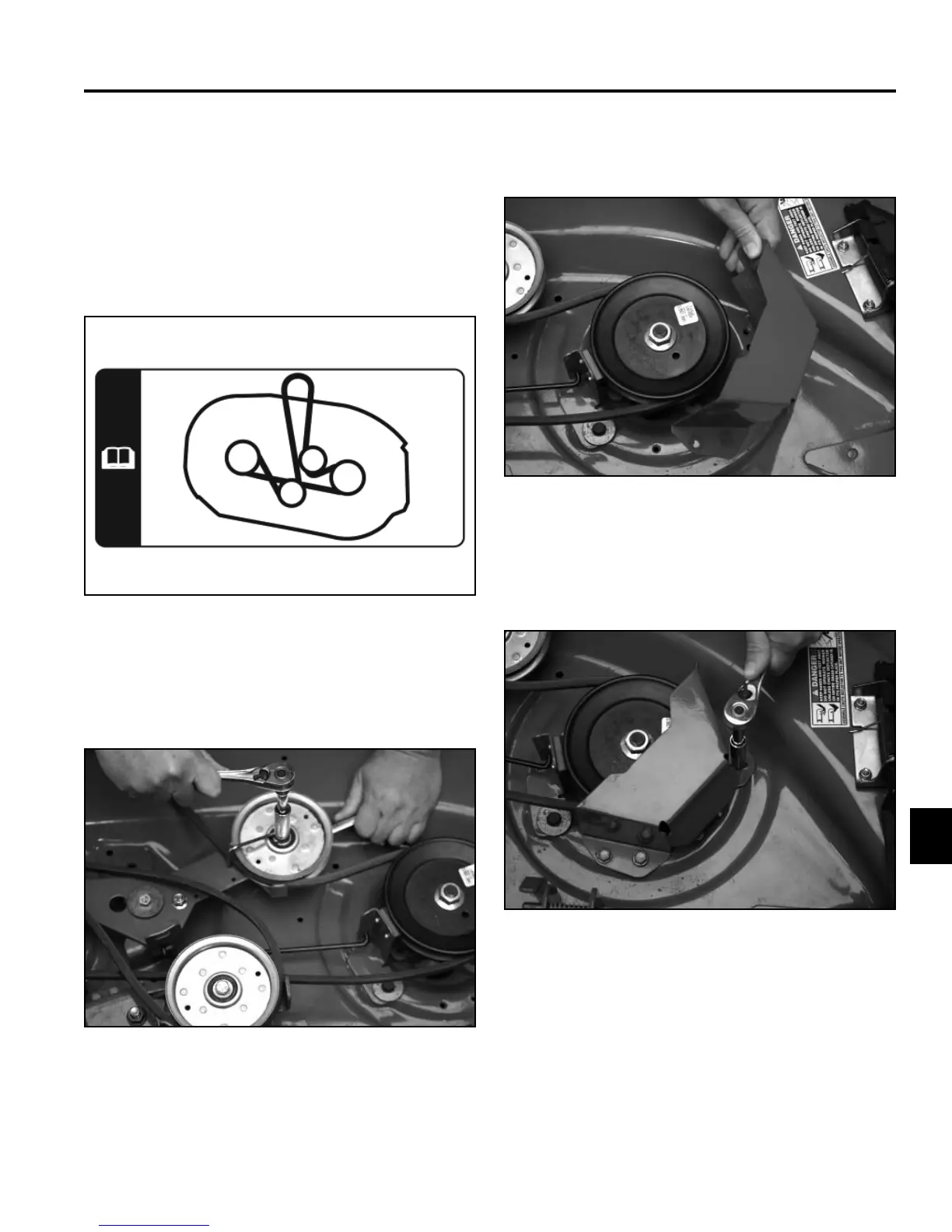

1. Route a new belt around the pulleys as shown (Fig.
589).
Note: Tension must be released from the deck brake
assembly to rout the belt around the left
pulley.
3. Position the right belt cover onto the mower deck
(Fig. 591).
Fig 589 fi g. LX420 112-1270
Fig 591 PICT-9777
4. Install the 3 self-tapping screws to secure the belt
cover to the mower deck (Fig. 592).
2. Secure the two idler pulleys by tightening the screws
and nuts (Fig. 590).
Fig 592 PICT-9776
Fig 590 PICT-9778
Installation
