GEAR DRIVE SYSTEM
5-11LX Lawn Tractor Service Manual
5
7. Remove the outer puck from the brake assembly
(Fig. 472).

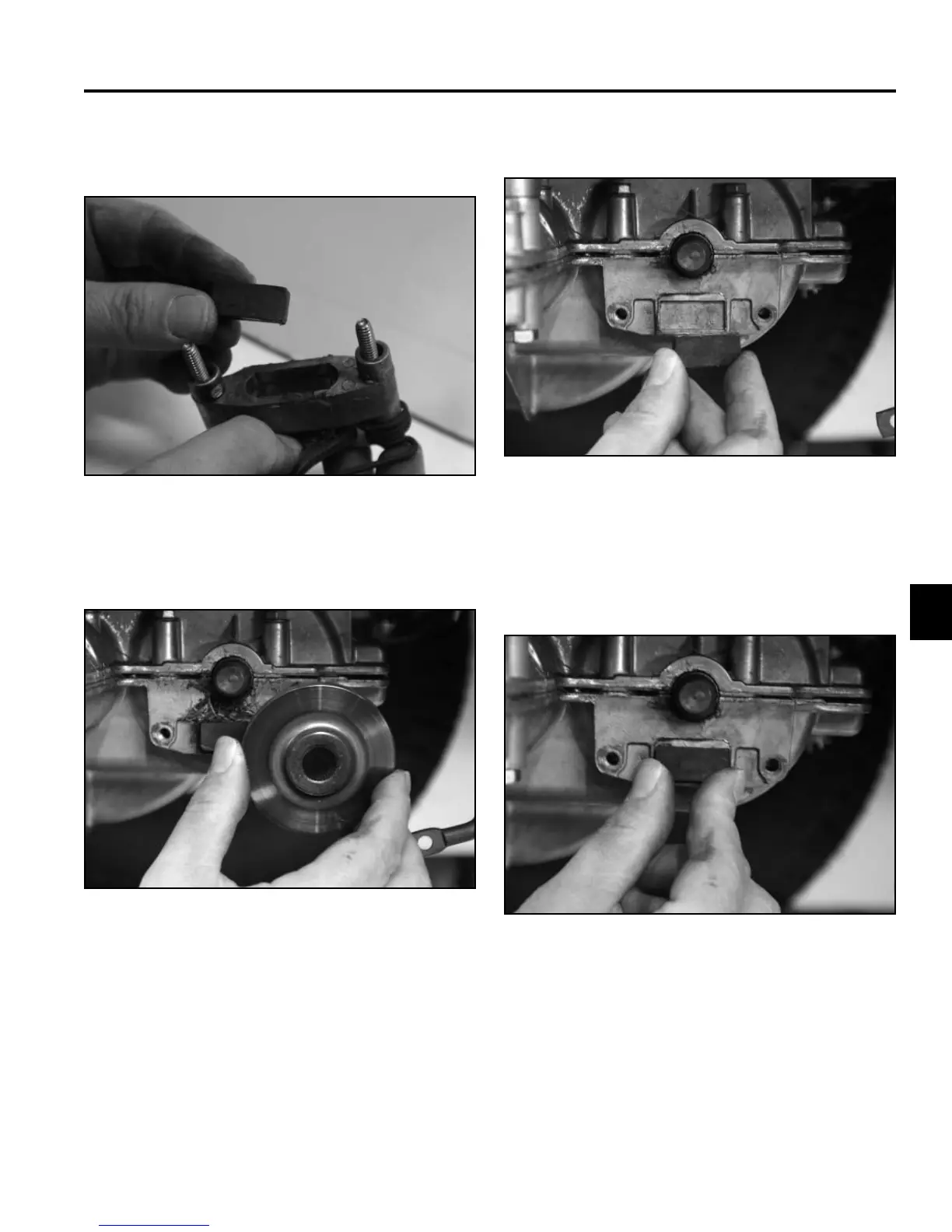

Fig 472 PICT-9620
Installation
8. Remove the brake disc (Fig. 473).
1. Install a new inner brake puck (Fig. 475).
Fig 473 PICT-9621
Fig 475 PICT-9623
9. Remove the inner puck (Fig. 474).
Fig 474 PICT-9622
