MOWER DECK
7-8 LX Lawn Tractor Service Manual
7
Installation

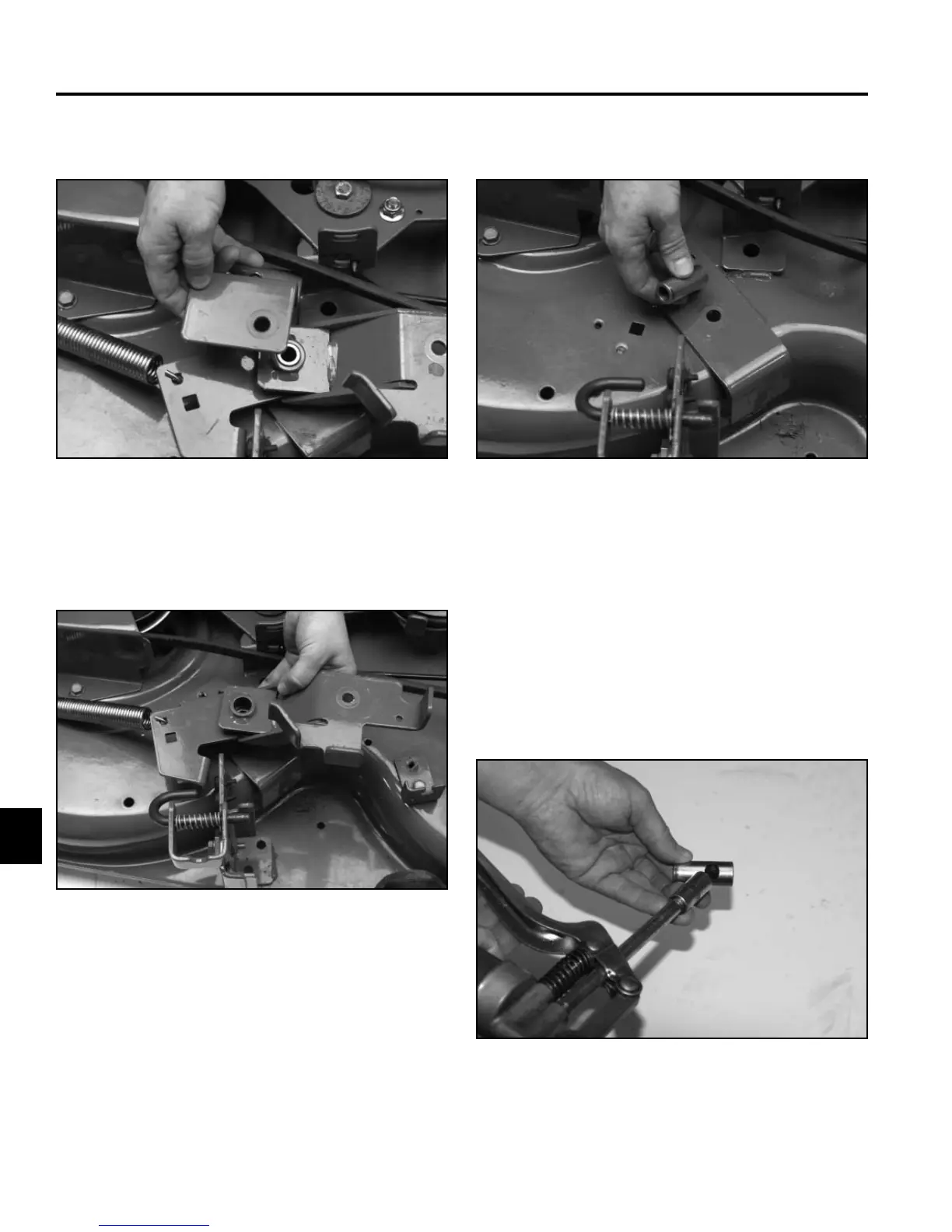

9. Remove the idler bracket from the mower deck (Fig.
570).
1. Raise and support the rear left corner of the mower
deck.
2. Apply grease to the outside of the spacer (Fig. 572).
Fig 570 PICT-7803
Fig 572 PICT-7807
10. Remove the spacer from the idler bracket (Fig. 571).
Fig 571 PICT-7805
42” Mower Deck - Idler Assembly
Replacement
8. Remove the pivot support bracket (Fig. 569).
Fig 569 PICT-7802
