7-25LX Lawn Tractor Service Manual
7
46” Mower Deck - Lower Idler Bracket
Removal
1. Remove the mower deck from the tractor. Refer to
“46” Mower Deck Removal” on page 7-69.
2. Using 4x4 wooden blocks, or equivalent, raise the
rear of the mower deck off the fl oor.

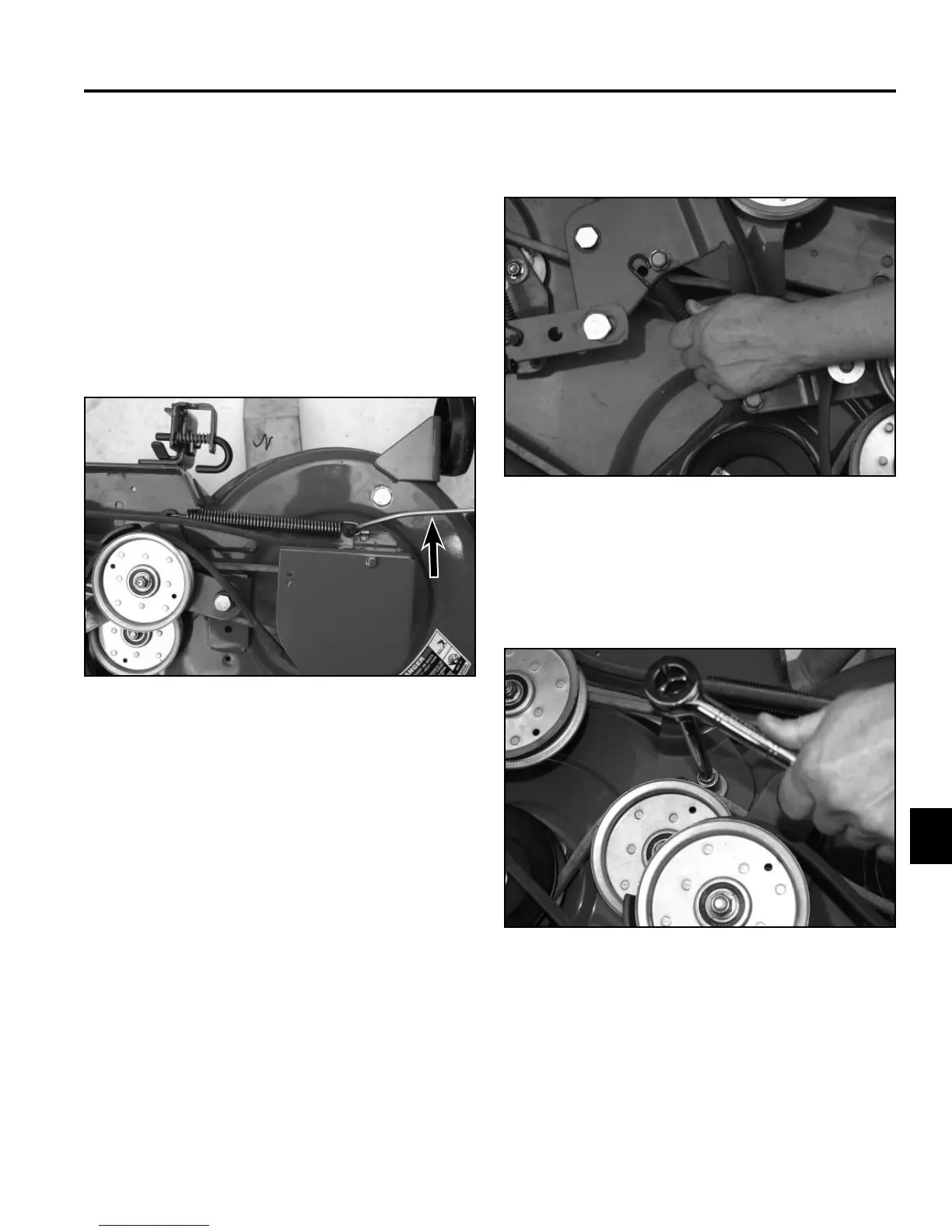

3. Remove the large extension spring hooked from the
mower deck and lower idler bracket (Fig. 637).
5. Remove the bolt, shoulder spacer, and nut that
secures the lower idler bracket to the mower deck
(Fig. 639).
Fig 637 PICT-7898
Fig 639 PICT-7902
4. Remove the extension spring between the right and
left idler brackets (Fig. 638).
Fig 638 PICT-7900
A. Spring removal tool (Toro P/N 92-5771)
A
A
