3-7LX Lawn Tractor Service Manual
3

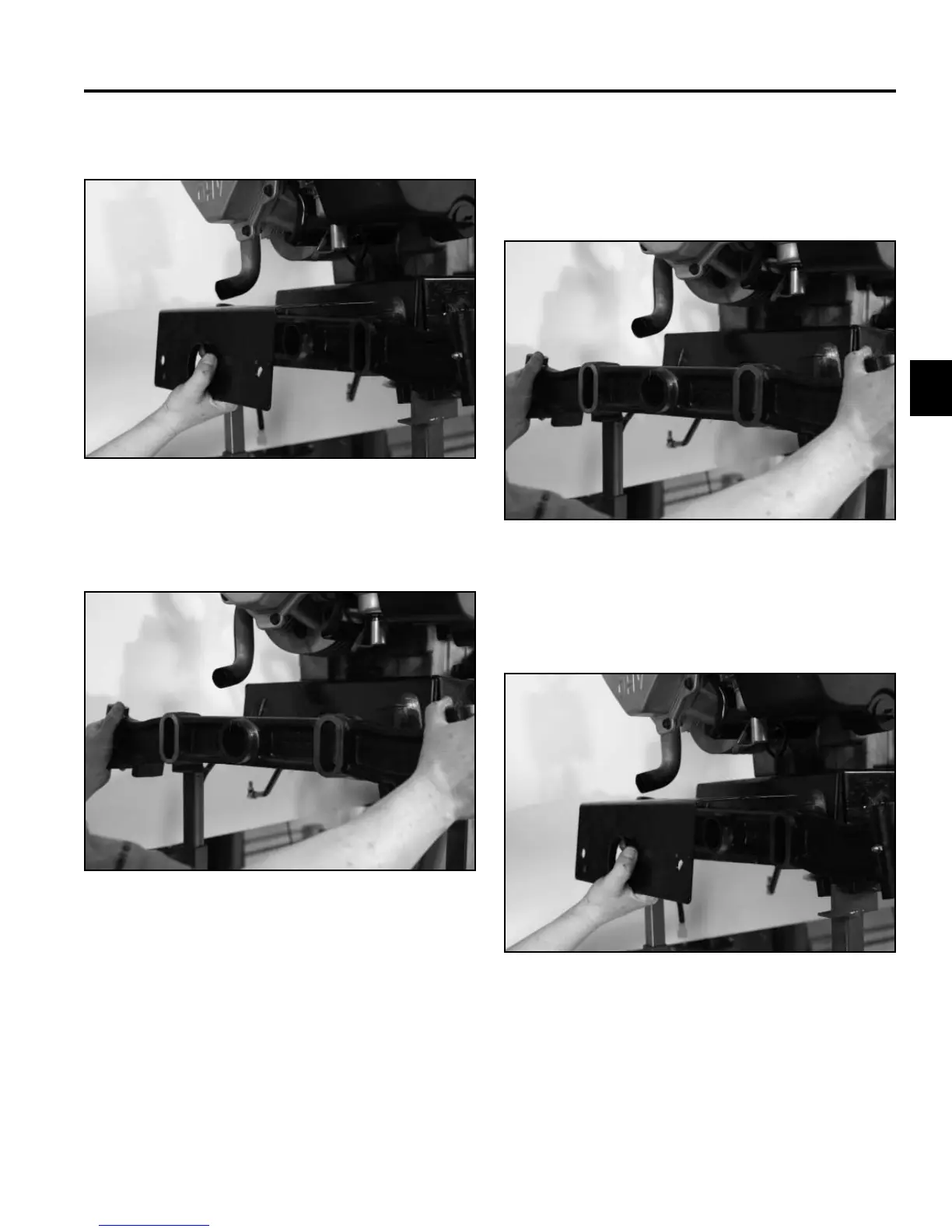

Fig 026 PICT-7451
Fig 028 PICT-7450
28. Remove the front pivot axle (Fig. 026).
2. Position the pivot bar bracket to the front pivot axle
(Fig. 028).
Fig 027 PICT-7451
Fig 025 PICT-7450
1. Position the front pivot axle to the front of the frame
(Fig. 027).
27. Remove the pivot bar bracket (Fig. 025).
Installation
