46” Mower Deck - Brake Assembly
Installation
6. Remove the large shoulder spacer from the mower
deck (Fig. 617).
2. Install the brake bracket assembly and the small
shoulder spacer to the deck (Fig. 619).

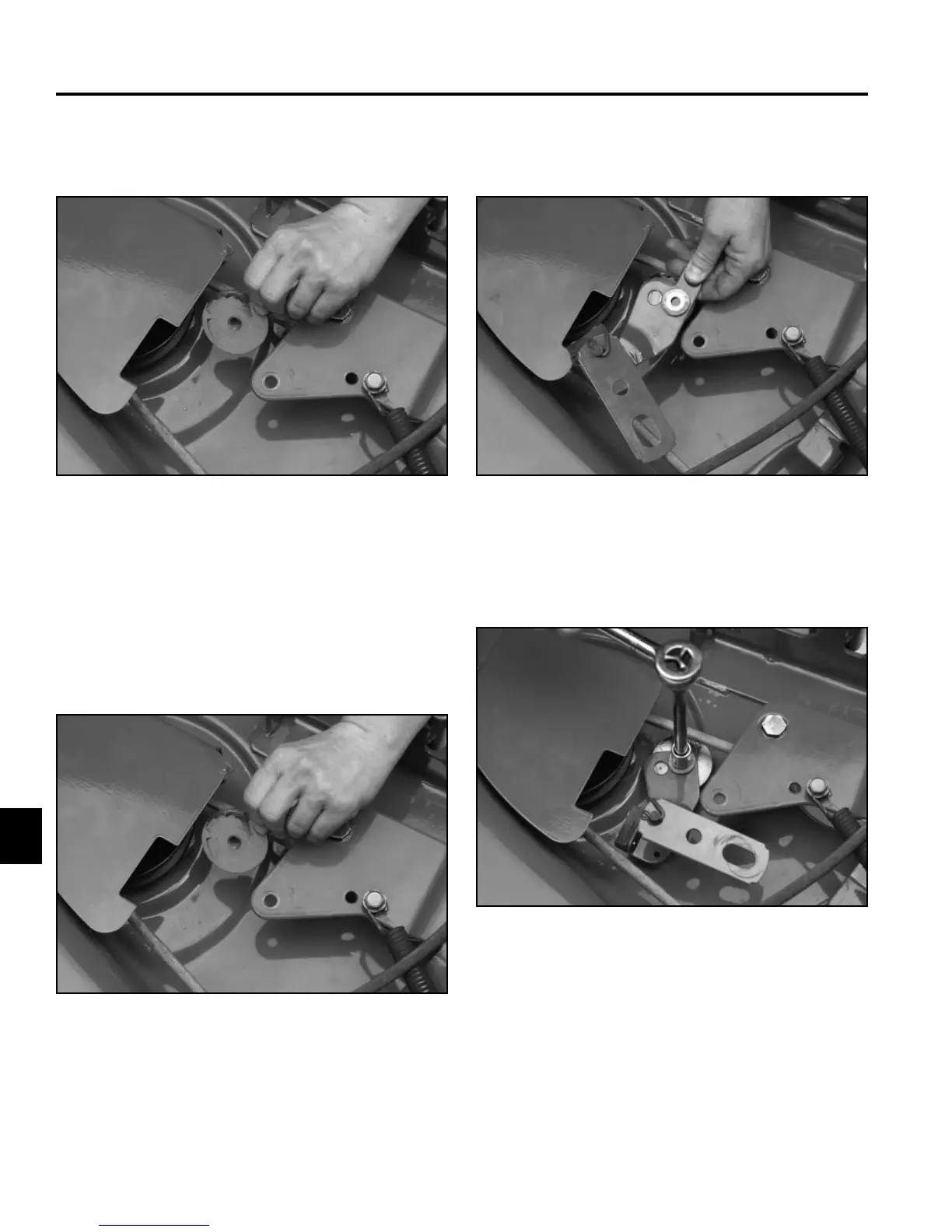

Fig 617 PICT-7917 Fig 619 PICT-7916
3. Install the bolt and nut through the brake bracket
assembly to the mower deck (Fig. 620).
1. Install the large shoulder spacer on the mower deck
(Fig. 618).
Fig 620 PICT-7915
Fig 618 PICT-7917
