3-67LX Lawn Tractor Service Manual
3

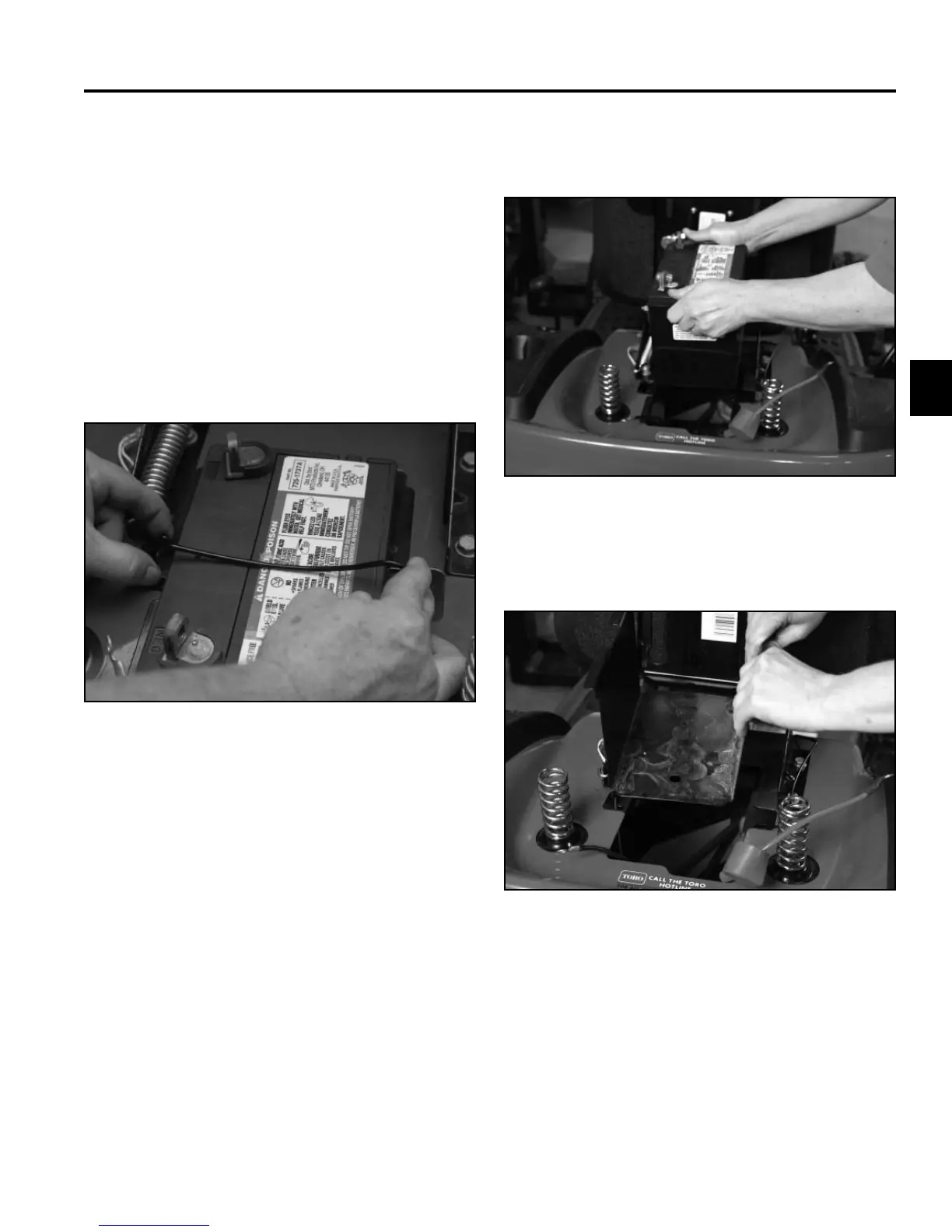

Fig 263 PICT-7277
4. Remove the battery tray (Fig. 263).
Fig 262 PICT-7276
3. Remove the battery from battery compartment (Fig.
262).
Fig 261 PICT-7109a
1. Disconnect the negative battery cable and then the
positive battery cable.
2. Remove the battery hold down strap (Fig. 261).
Removal
Upper Transmission Drive Belt
Replacement - Gear Drive Models
The mower deck has been removed for photo purposes.
